QBiX-WP-APLA3940H-A1

QW-3940A MAPLKAS-SI

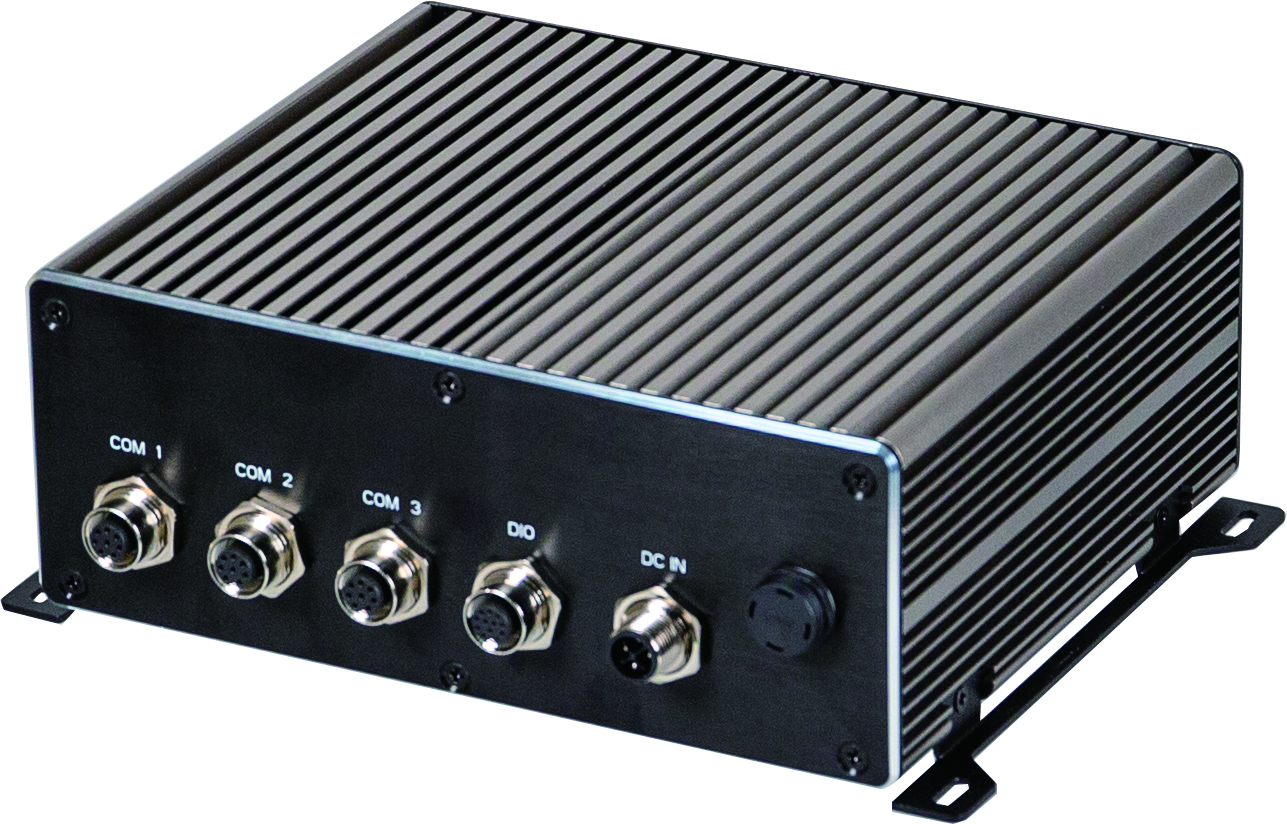

  • System Size : 188W x 155D x 72H (mm)
  • Intel® Atom® x5-E3940 Processor
  • Dual Channel DDR3L, 2 x SO-DIMMs
  • IP67 water proof certification
  • M12 and IP67 water proof connectors
Dimension 188W x 155D x 72H(mm)
CPU

Intel® Atom® x5-E3940 Processor
14nm, 4 cores, 4 threads, up to 1.80 GHz
TDP 9.5W
Chipset SoC
Memory

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR3L 1866 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i211AT)
Graphic Support

Integrated Graphics Processor - Intel® HD Graphics 500:
1 x HDMI port, supporting a maximum resolution of 3840x2160 @30Hz
Audio Realtek® Audio Codec
Storage 1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots

1 x 2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O

2 x (M12) LAN ports
2 x (IP67) USB 2.0 connector
1 x (IP67) HDMI connector
1 x (IP67) Power switch
1 x (M8) Power & HDD LED
Rear I/O

1 x (M12) COM port (RS-232/422/485 and RI/5V/12V)
2 x (M12) COM port (RS-232)
1 x (M12) GPIO (8 bits)
1 x (M12) DC Jack
Power +9~36VDC (Full Range)
Operation Temperature

Operating temperature: -20°C to 80°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content

Box Packing Capacity: 1pc
Carton size: 305x285x265(mm)
Content:
CABLE COM, waterproof, x 3 (P/N: 25CF8-1K8400-O0S)
CABLE USB 2.0, waterproof, x 2 (P/N: 25CFA-1K8000-O0R)
CABLE RJ45, waterproof, x 2 (P/N: 25CR0-1K8401-O0S)
CABLE SIGNAL, waterproof, x 1 (P/N: 25CR5-1K8500-O0R)
CABLE HDMI, waterproof, x 1 (P/N: 25CRC-180720-O0S)
CABLE DC JACK, waterproof, x 1 (P/N: 25CRD-1K8300-O0S)
Wall mount bracket (P/N: 25HBA-826520-H5R)
Order Information

9BQW3940AMR-SI (Box packing)
(Built in : DDR3L 8GB & 256GB SSD)
Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
