QBiX-Pro-GLKB5040HD-A1

QP-5040B-SI MGMLJBS

  • System Size: 160W x 118D x 62.6H (mm)
  • Intel® Pentium® Silver J5040 Processor
  • Single Channel DDR4 2400 MHz
  • 4 x switchable COM Ports (RS-232/422/485)
  • 1 x GPIO Port (8 Bits)
  • 2 x GbE LAN Ports
Dimension 160W x 118D x 62.6H(mm)
CPU

Intel® Pentium® Silver J5040 Processor
14nm, 4 cores, 4 threads, up to 3.2 GHz
TDP 10W
Memory

1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB
Support Single Channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN Ports (Intel® I211AT)
Graphic Support

Integrated Graphics Processor - Intel® UHD Graphics 605:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 2048×1536 @60Hz

(2 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots

1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
1 x Vertical USB 2.0

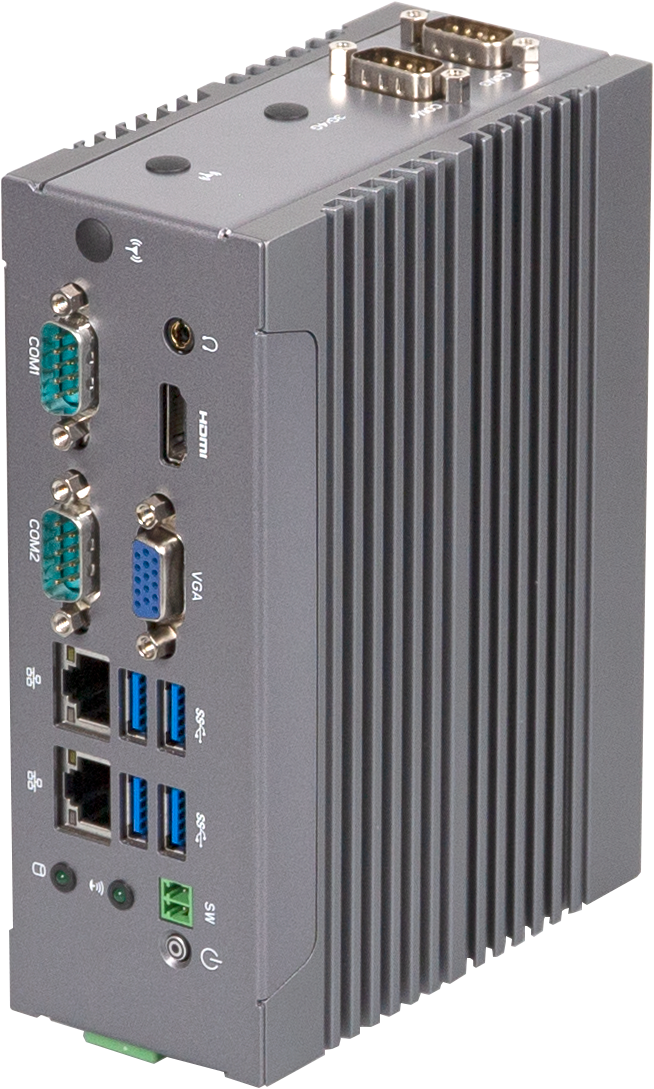

Front I/O

2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x HDMI
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x WiFi/HDD LED
1 x Remote control connector
1 x Headphone Jack
1 x External Antenna Hole (Optional)

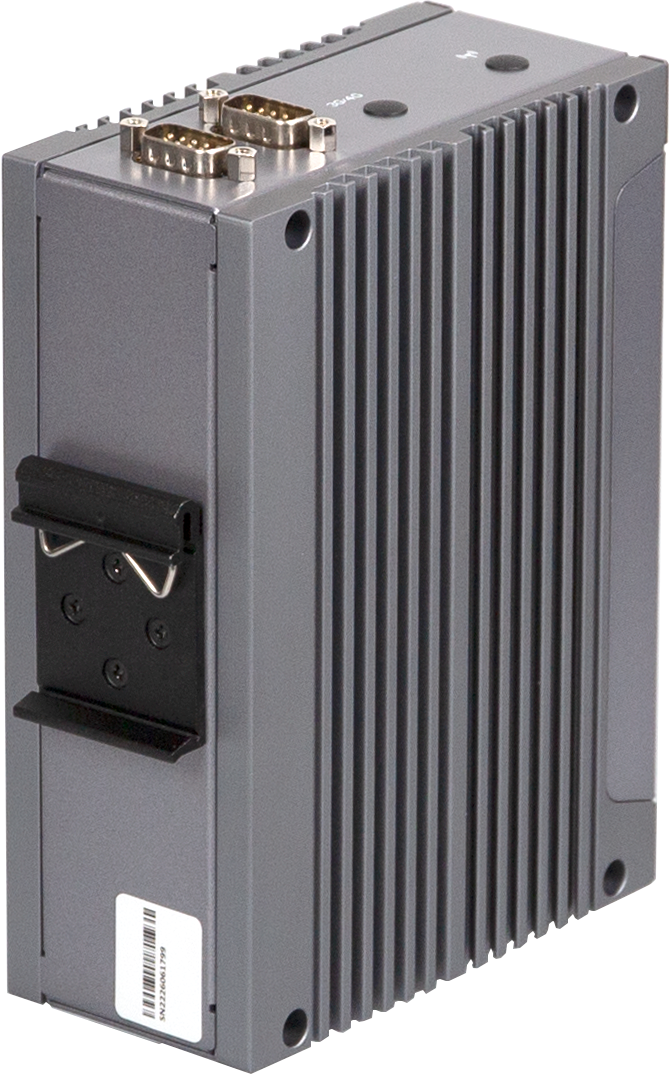

Rear I/O

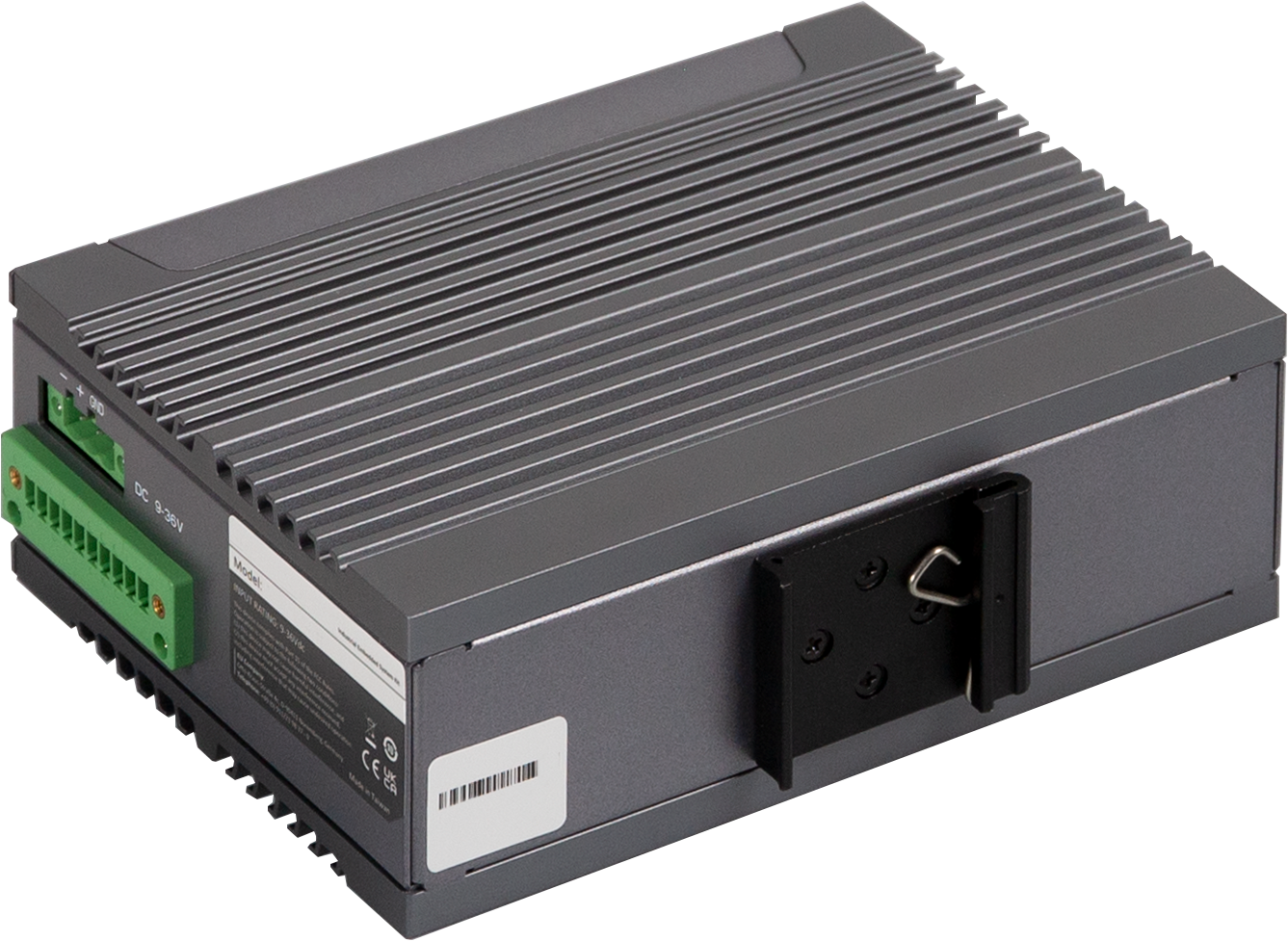

1 x Din Rail Mounting Support
1 x GPIO (8 bit)
1 x 3-pin Terminal Block
2 x COM Ports (RS-232/422/485)
2 x External Antenna Holes (Optional)
Power +9V~36VDC (Full Range)
Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content

Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs

Single Box size: 308 x 191 x 130 (mm)
Single Box weight: Approx. 1.8kg

Including:
Screw HDD M3x3L x 4 (P/N: 25984G-1C014-S00)
Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R)
Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
Order Information

6BQP5040BMR-SI (Box packing)
Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
