QBiX-Pro-APLB4200H-A1

BAREBONE GB-CBAB-SI

System Size : 178W x 125D x 52.7H (mm)
Intel® Pentium® N4200 Processor
Dual Channel DDR3L, 2 x SO-DIMMs
HDMI, D-sub for Dual display
2 x GbE LAN Ports

System Modules Specifications

Dimension	178W x 125D x 52.7H(mm)
CPU	Intel® Pentium® N4200 Processor 14nm, 4 cores, 4 threads, up to 2.5 GHz TDP 6W
Chipset	SoC
Memory	2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Single Channel DDR3L 1866MHz memory modules
Ethernet	2 x GbE LAN ports (Intel® i211AT)
Graphic Support	Integrated Graphics Processor - Intel® HD Graphics 505: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (2 independent display outputs)
Audio	Realtek® Audio Codec
Storage	1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots	1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

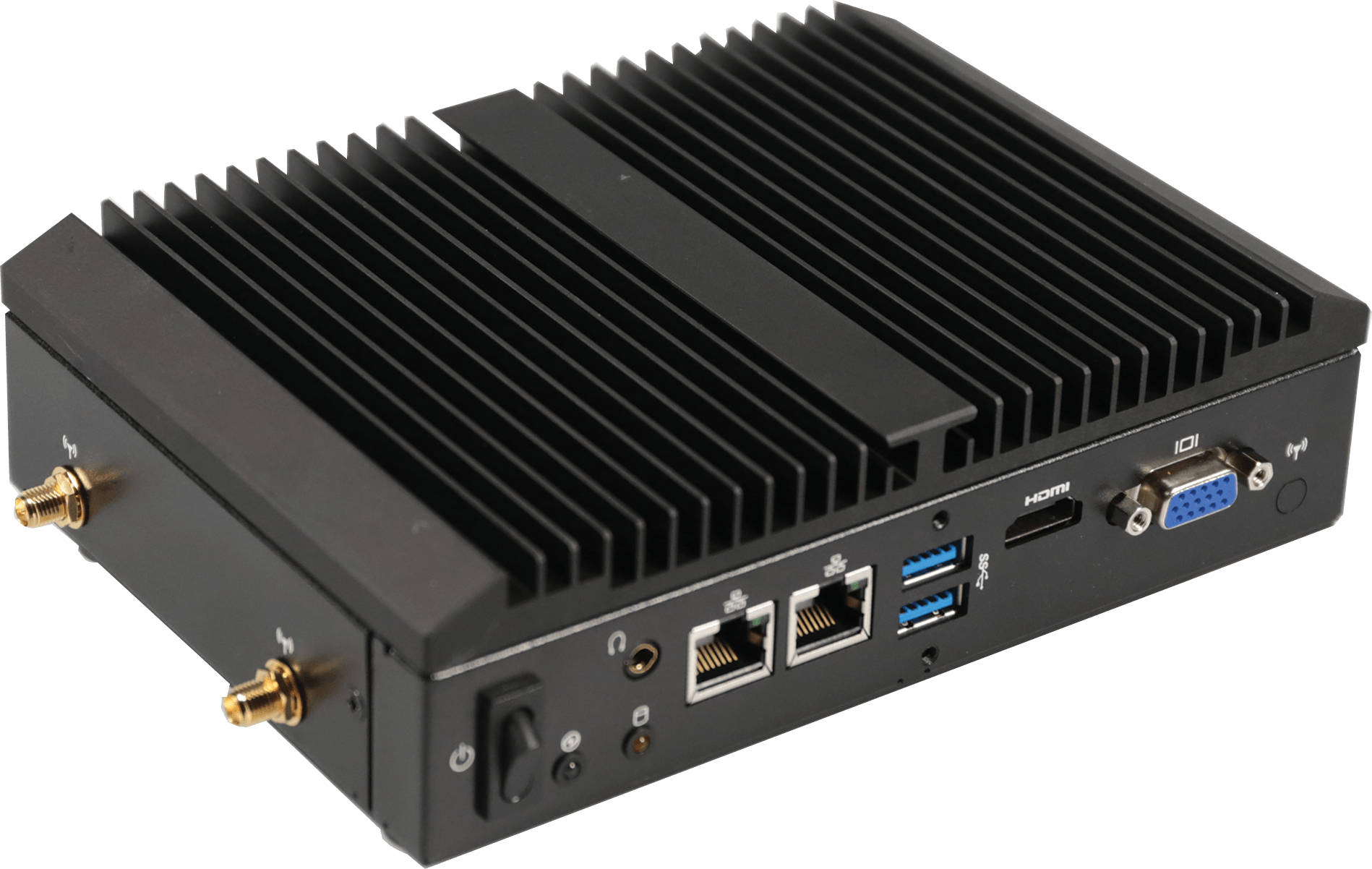

Front I/O	2 x RJ45 LAN ports 2 x USB 3.0 1 x HDMI 1 x VGA 1 x Power switch 1 x Power & HDD LED 1 x Headphone jack

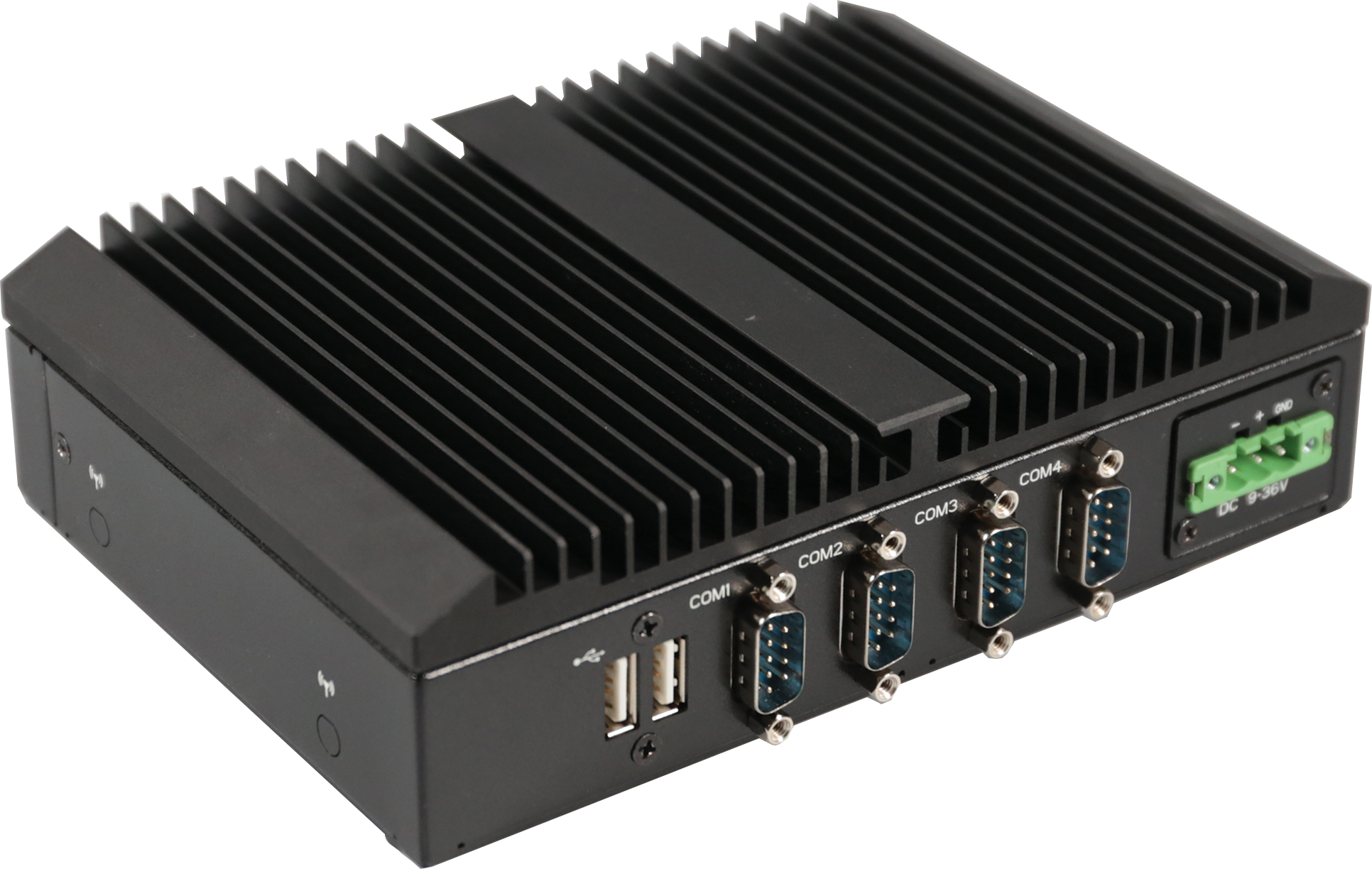

Rear I/O	2 x USB 2.0 1 x COM port (RS-232/422/485 and RI/5V/12V) 3 x COM ports (RS-232) 1 x 3-pin Terminal Block
Power	+9~36VDC (Full Range)
Operation Temperature	Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage
Vibration During Operation	Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation	Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content	Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) Content: Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad x 2 (P/N: 25ST3-200052-T5R) SATA Cable x 1 (P/N: 25CF4-170020-S9R) Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Order Information	6BCBABMR-SI (Box packing)
Optional Kit	TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R Wall mount (Optional)
