• System Size : 178W x 125D x 52.7H(mm)
  • AMD Ryzen™ V1605B Embedded Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 4 x HDMI 2.0 for multiple displays
  • 2 x GbE LAN ports
Dimension 178W x 125D x 52.7H(mm)

AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz

Chipset SoC

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400MHz memory modules

Ethernet 2 x GbE LAN ports (Realtek® RTL8111HS)
Graphic Support

Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
*Support EDID emulation with AMD graphic driver/utility
(4 independent display outputs)

Audio Realtek® Audio Codec
Storage 1 x 2.5" HDD/SSD (SATA 6 Gb/s)
Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module

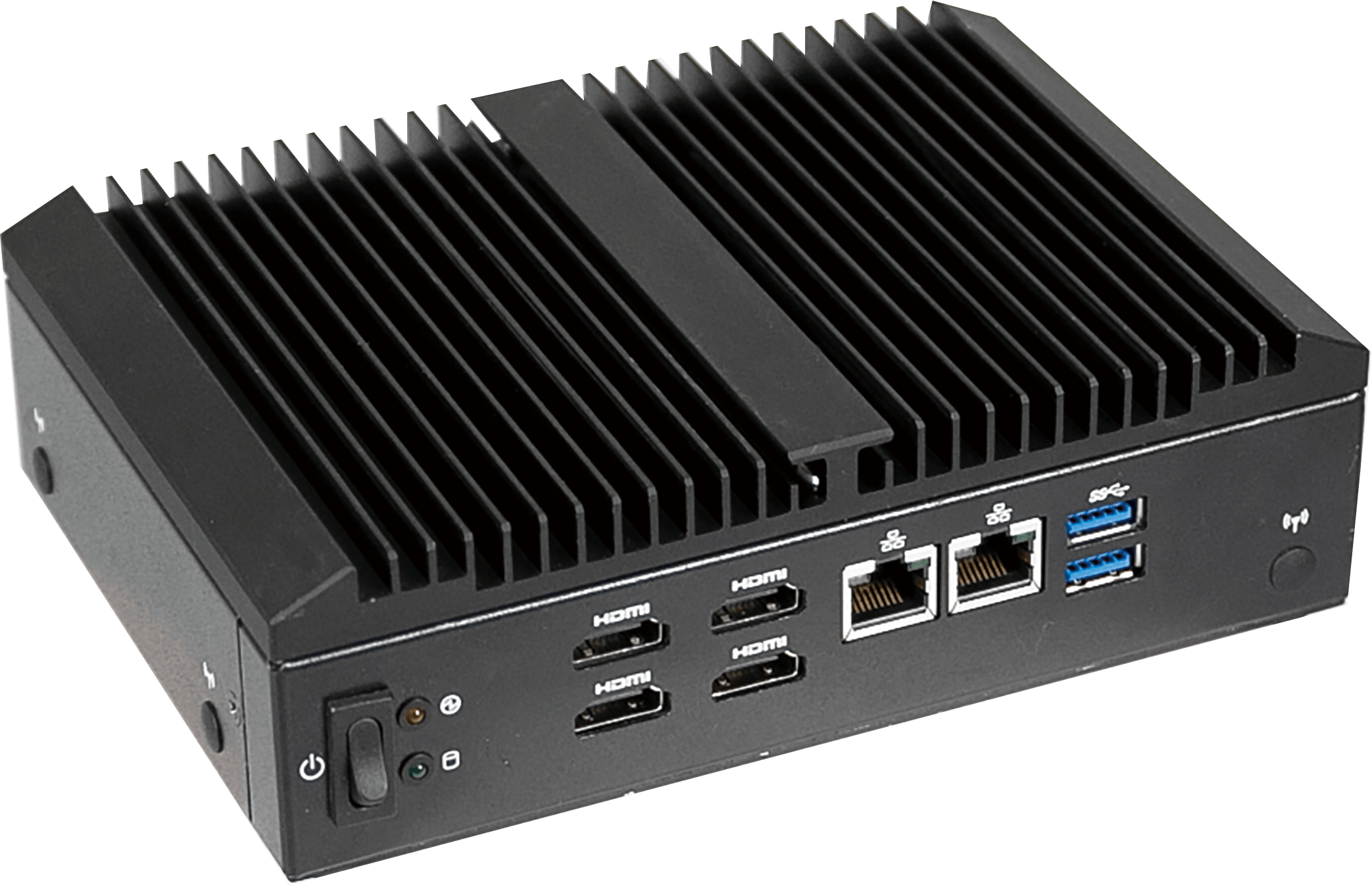

Front I/O

2 x RJ45 LAN ports
2 x USB 3.0
4 x HDMI
1 x Power switch
1 x Power & HDD LED

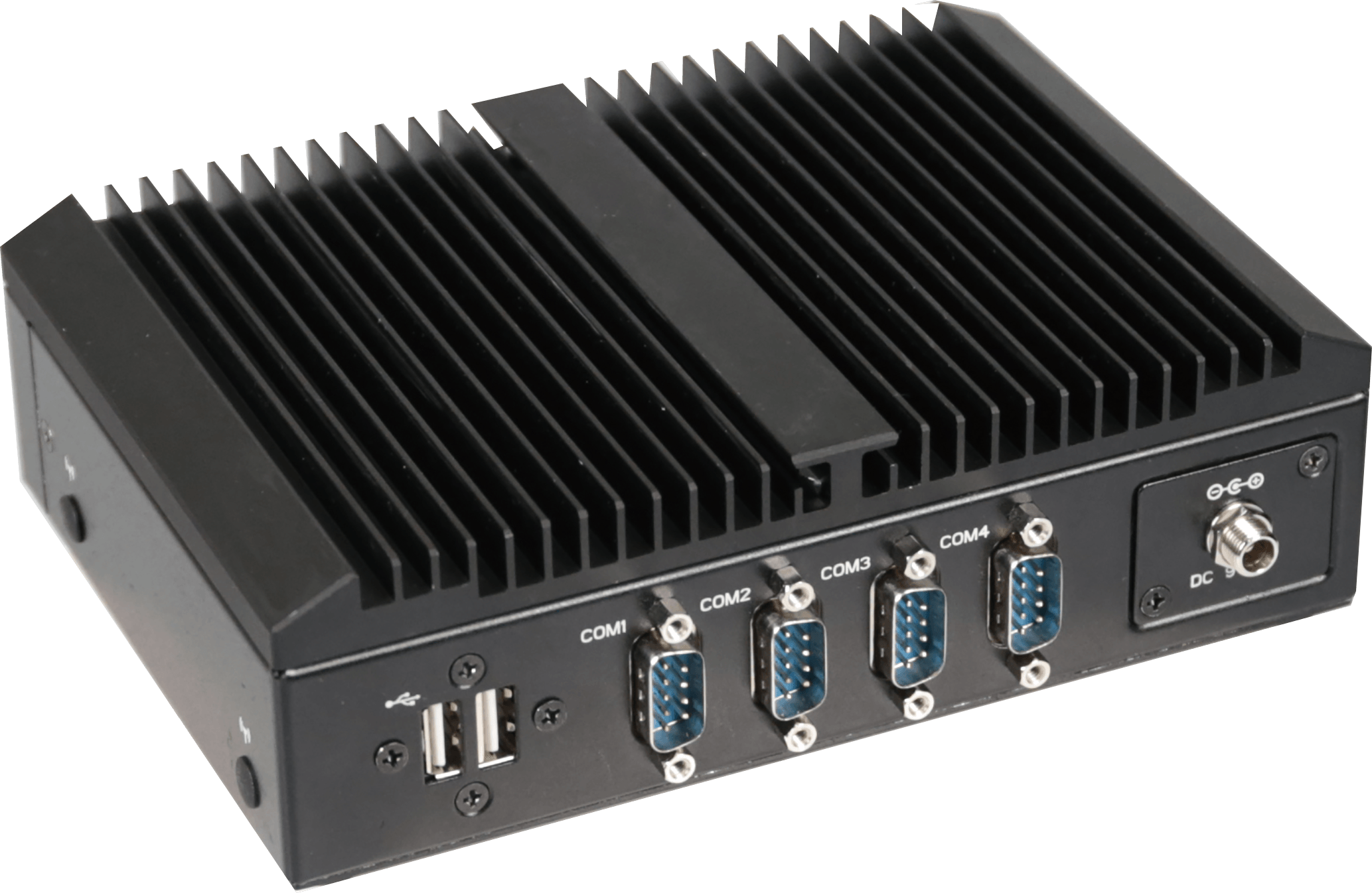

Rear I/O

2 x USB 2.0
2 x COM ports (RS-232/422/485 and RI/5V/12V)
2 x COM ports (RS-232)
1 x Screw Type DC Jack

Power +9~36VDC (Adapter 19V/65W)
Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packaging Content

Box Packing Capacity: 5pcs
Carton size: 505x333x231(mm)
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200060-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA cable x 1 (P/N: 25CF4-170020-S9R)
Power cord : optional (by region)
Power ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)

Order Information

6BQP1605AMR-SI (Box packing)
