QBiX-KBLA7100H-A1

BAREBONE GB-CKAA-SI ...
  • System Size : 138W x 118D x 74.2H (mm)
  • Intel® Core™ i3-7100U Processor
  • 1 x RS232 COM Port
  • Dual Channel DDR4, 2 x SO-DIMMs
  • HDMI, Mini Display port for Dual display
  • 1 x GbE LAN Port
Dimension 138W x 118D x 74.2H(mm)
CPU

Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
Chipset SoC
Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet 1 x GbE LAN port (Intel® i219V)
Graphic Support

Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x mini DP port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio Intel® integrated Audio
Storage 1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

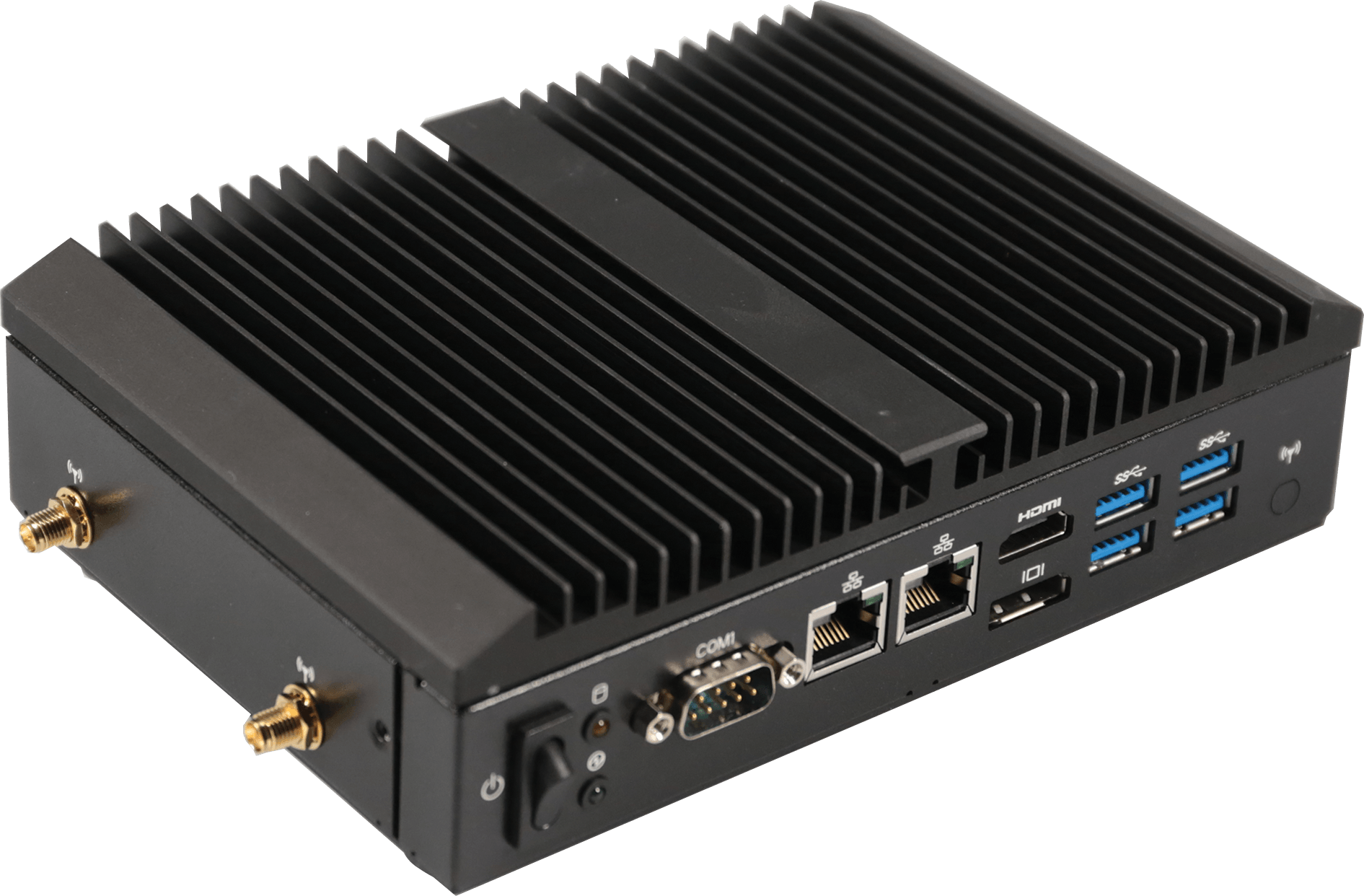

Front I/O

2 x USB 3.0
1 x Power switch
2 x External Antenna (optional)
1 x HDD LED
1 x Power LED

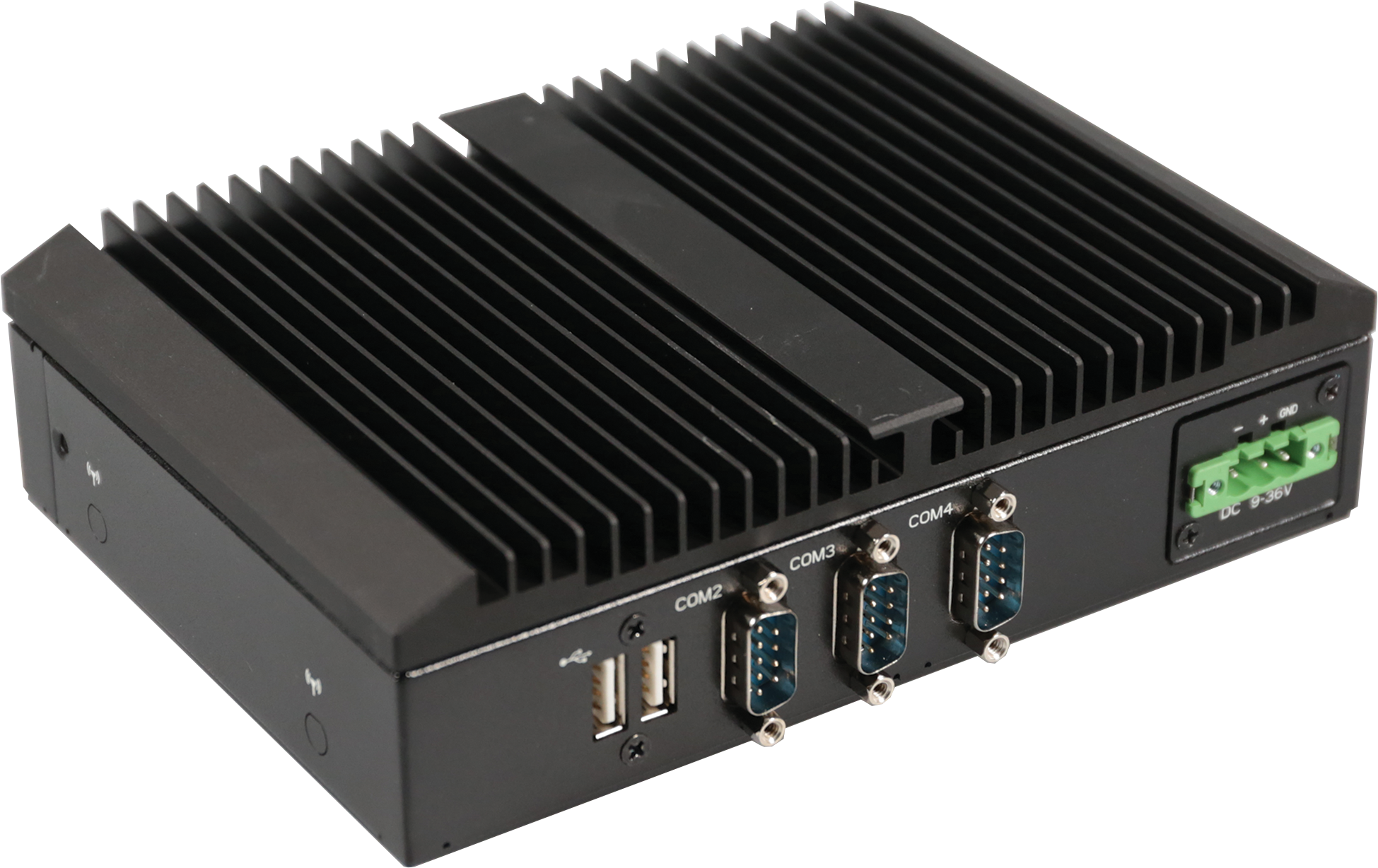

Rear I/O

1 x RJ45 LAN port
2 x USB 3.0
1 x HDMI
1 x Mini Display port
1 x COM (RS-232)
1 x Screw type DC Jack
Power +12~24VDC (Adapter 19V/65W)
Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content

Box Packing Capacity: 6pcs
Carton size: 416x409x296(mm)
Including:
Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad HDD x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad DRAM2 x 1 (P/N: 25ST3-200051-T5R)
SATA+Power cable x 1 (P/N: 25CRA-010000-S9R)
Order Information

6BCKAAMR-SI (Box packing)
Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
