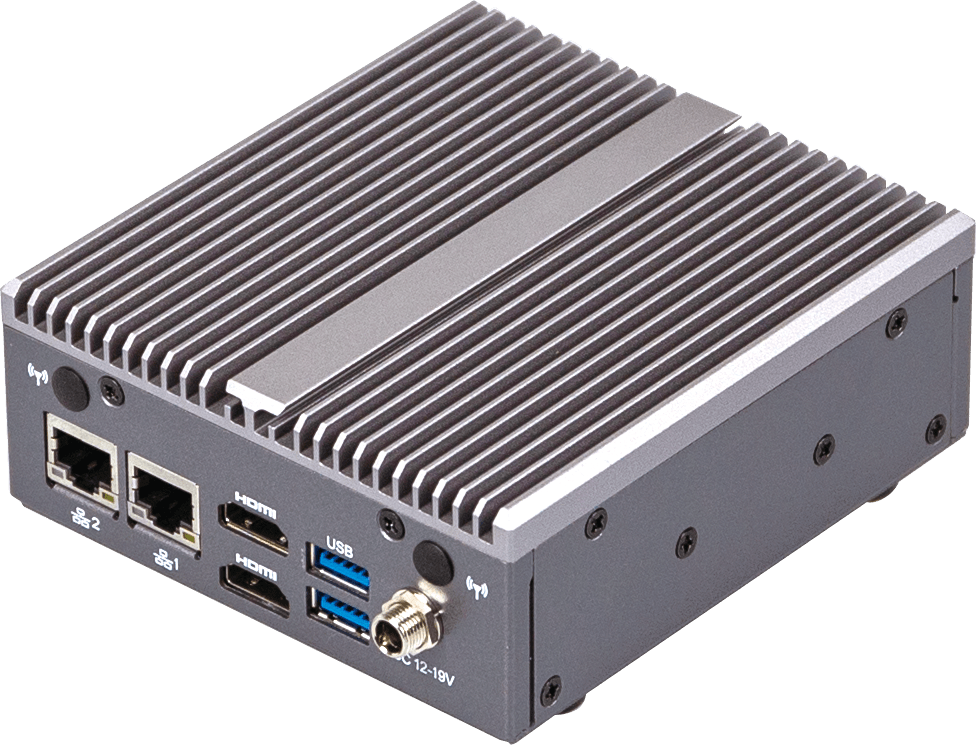

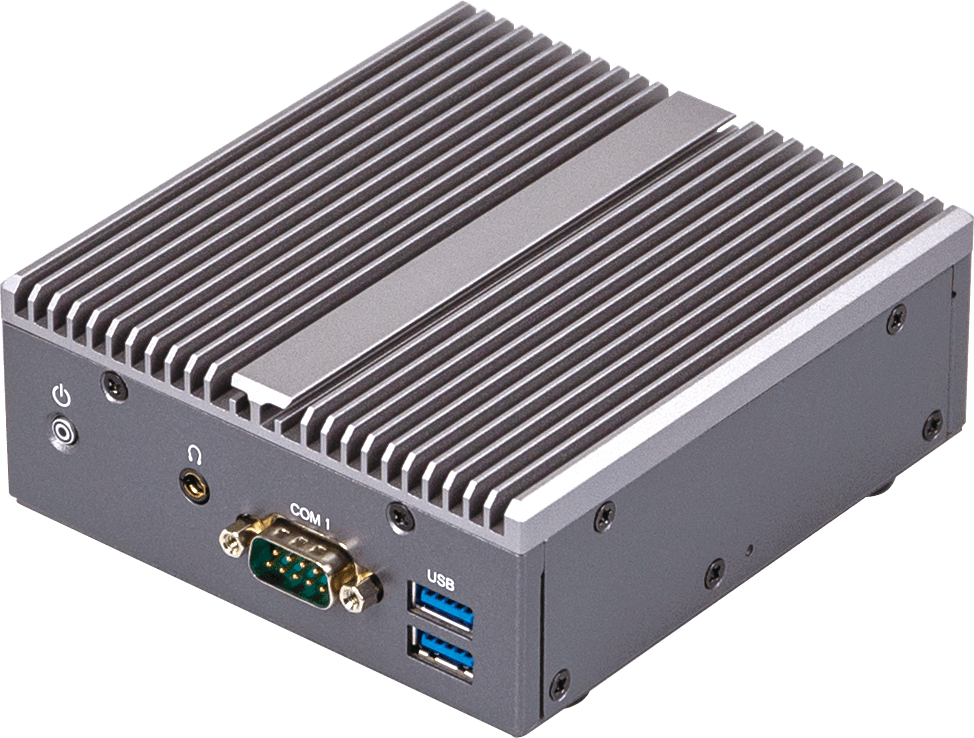

QBiX-GLKB4125-A1

Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.7 GHz
TDP 10W

1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB
Support Single Channel DDR4 2400 MHz memory modules

Integrated Graphics Processor - Intel® UHD Graphics 600:
2 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz

(2 independent display outputs)

1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

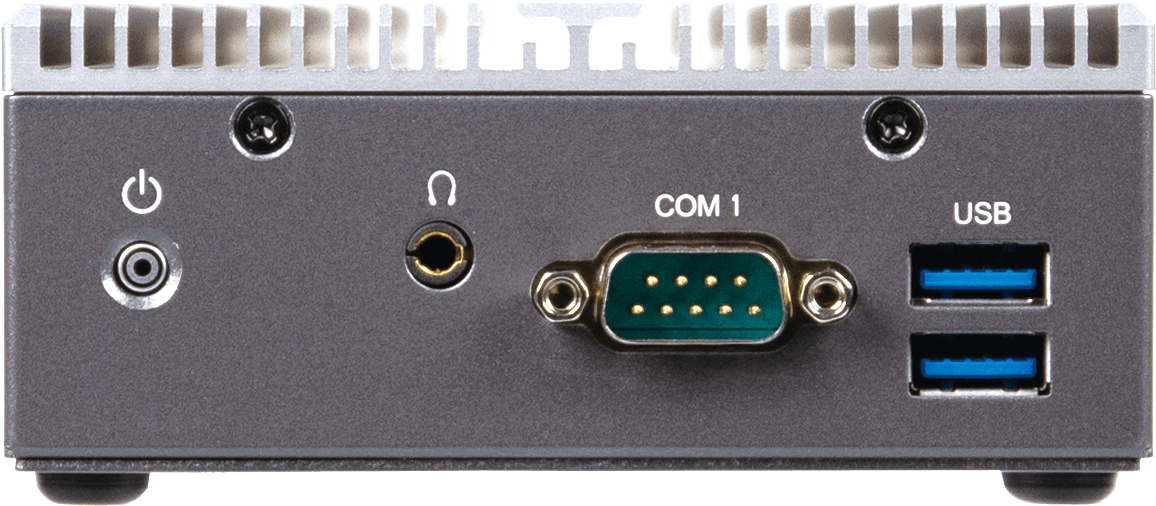

2 x USB 3.0
1 x COM Port (RS-232)
1 x Headphone Jack
1 x Power button with LED

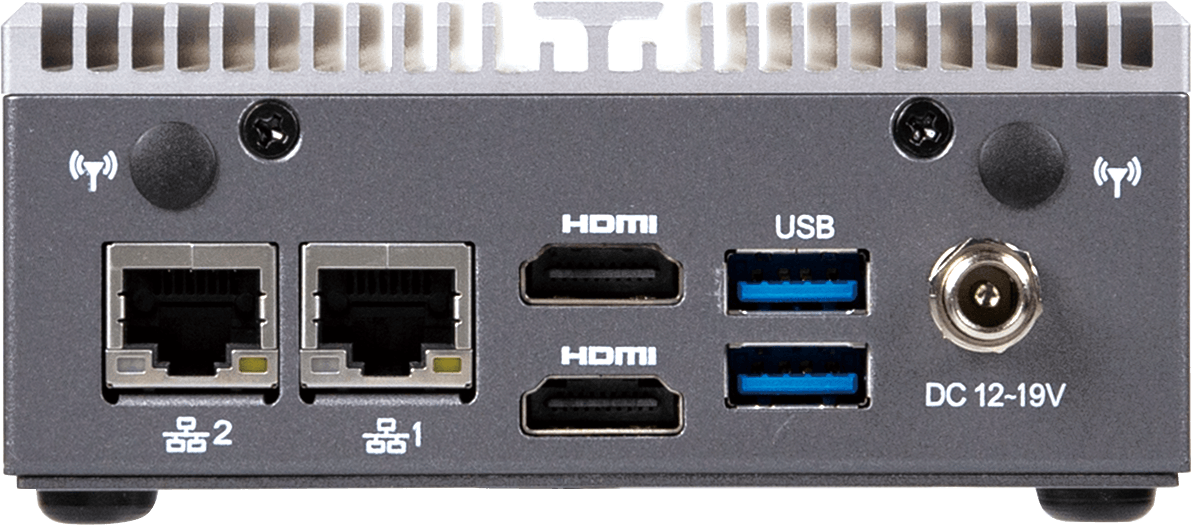

2 x RJ45 LAN ports
2 x USB 3.0
2 x HDMI
2 x External Antenna (optional)
1 x Screw Type DC Jack

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Box Packing Capacity: 6pcs
Carton size: 416x409x296(mm)
Including:
Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)

6BQB4125AMR-SI (Box packing)

WiFi module (Intel 3168AC) : 25FC7-3168N0-10R
Internal Antenna (300mm) : 25CA0-300003-A5S
Internal Antenna (230mm) : 25CA0-230003-A5S
WiFi/BT Antenna x 2 : 25CA0-111000-A5S
