uATX-Q47EA

M/B MQ47EAM-SI 1.0A
  • Micro ATX form factor
  • Supports 11th/10th Generation Intel® Core™ Processors
  • Intel® Q470E Express Chipset
  • Dual Channel Non-ECC Unbuffered DDR4, 4 x DIMMs
  • 4 x GbE LAN ports
  • 4 x SATA 6Gb/s ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • HDMI 1.4, Display port, VGA, LVDS for multiple displays
  • Realtek® Audio Codec
  • Up to 4 x PCIe Gen3 expansion slots
  • 16 x USB ports
  • 1 x COM headers (RS-232/422/485 & RI/5V/12V)
  • 1 x COM headers (RS-232 & RI/5V/12V)
  • 2 x COM headers (RS-232)
FORM FACTOR

Micro ATX
244W x 244D(mm)
CPU

Support for 11th/10th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1200 package
TDP under 95W
SOCKET 1 x LGA 1200
MEMORY

4 x DDR4 DIMM sockets, Max. Capacity 128GB
Support Dual channel DDR4 2933 MHz memory modules
ETHERNET 4 x GbE LAN ports (1 x Intel® i219LM and 3 x Intel® i211AT)
VIDEO

Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x Display port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 4 x SATA 6Gb/s ports (RAID 0/1/5/10)
EXPANSION SLOTS

2 x PCIe Gen3 x8 (or only 1 x PCIe Gen3 x16 on PCIe x16_A slot as optional)
1 x PCIe x4 (Gen3 x4)
1 x PCIe x1 (Gen3 x1)
1 x 2230 M.2 E-Key (PCIe x1 + USB2.0)
1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s)
INTERNAL I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x VGA header
1 x Backlight Control header
1x AT/ATX mode select jumper
4 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232 & RI/5V/12V)
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBUS header
1 x Buzzer
1 x Clear CMOS jumper

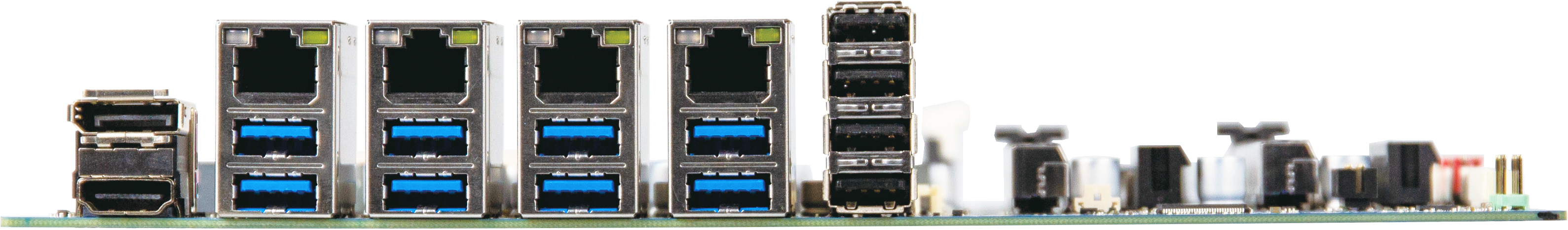

REAR I/O

1 x HDMI
1 x Display Port
4 x RJ45 LAN ports
8 x USB3.0
4 x USB2.0
TPM 1 x TPM header
OS COMPATIBILITY Windows 10 (x64)
CHIPSET Intel® Q470E Express Chipset
OPERATING PROPERTIES

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Carton size: 360 x 354 x 390 (mm)
Packing Capacity: 5pcs

Including:
IO Shield x 1 (P/N: 12AIO-MQ47EA-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
ORDER INFORMATION 9MQ47EAMMR-SI (Box packing)
OPTIONAL KIT

TPM 2.0 module: 9CTM000NR-00
