uATX-H310A
M/B MCH31AM-SI 1.0A
- Micro ATX form factor
- Supports 9th/8th Gen Intel® Core™ Processors
- Intel® H310 Express Chipset
- Dual Channel Non-ECC Unbuffered DDR4, 2 x DIMMs
- 2 x GbE LAN ports
- 4 x SATA 6Gb/s ports
- HDMI 1.4, DVI-D, VGA ports for multiple displays
- Up to 4 x PCIe expansion slots
- 4 x RS232 COM ports
- Onboard TPM 2.0 security chip
| FORM FACTOR |
Micro ATX |
|---|---|
| CPU |
Support for 8th/9th Generation
Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
|
| SOCKET | LGA1151 x 1 |
| MEMORY |
2 x DDR4 DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2666/2400 MHz memory modules
|
| ETHERNET | 2 x GbE LAN port (Intel® I219V and Realtek® RTL8111HS) |
| VIDEO |
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
* The DVI-D port does not support VGA connection by adapter
|
| AUDIO | Realtek® Audio Codec |
| STORAGE | 4 x SATA 6Gb/s ports |
| EXPANSION SLOTS |
1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen2 x2)
2 x PCIe x1 (Gen2 x1)
|
| INTERNAL I/O |
1 x 24-pin ATX main power connector |

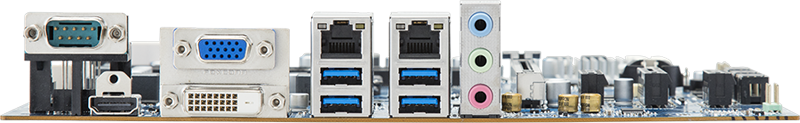

| REAR I/O |
3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232)
1 x HDMI
1 x DVI-D
1 x VGA
2 x RJ45 LAN ports
4 x USB 3.0
|
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9665VQ2.0 |
| OS COMPATIBILITY | Windows 10 (x64) |
| OPERATING PROPERTIES |
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
|
| PACKAGING CONTENT |
Bulk Packing Capacity: 20pcs
Carton size: 609 x 581 x 362(mm)
Content:
IO Shield x 1 (12AIO-MDH112-00R)
SATA cable x 2 (12CF1-2SAT1B-01R) |
| ORDER INFORMATION | 9MCH31AMNR-SI |
