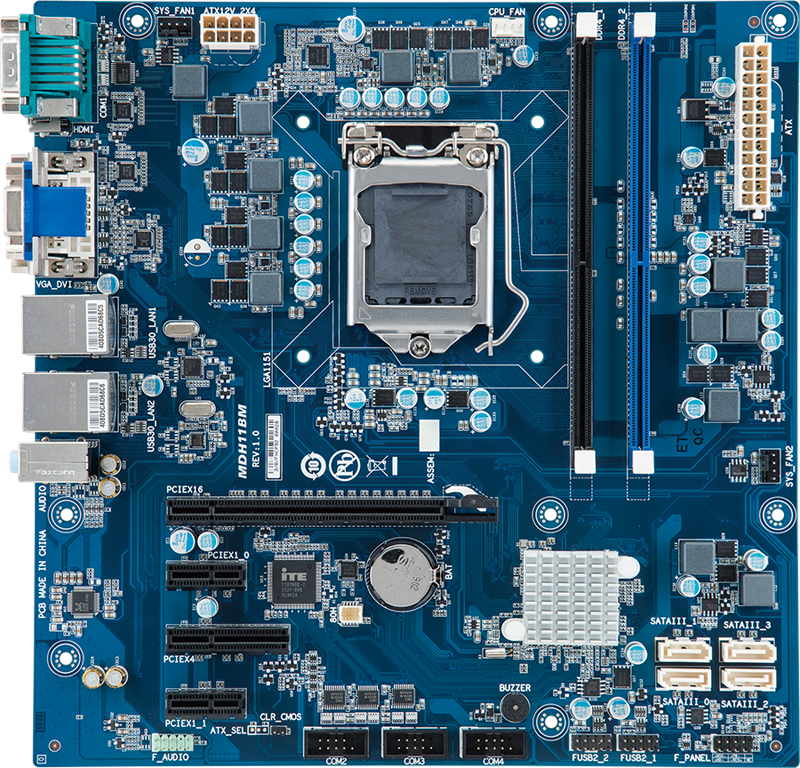

uATX-H110A

M/B MDH11BM-SI 1.0A
  • Micro ATX form factor
  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 x DIMMs
  • 2 x GbE LAN ports
  • 4 x SATA 6Gb/s ports
  • HDMI 1.4, DVI-D, VGA ports for multiple display
  • 4 x RS-232 COM ports
FORM FACTOR

Micro ATX
244W x 244D(mm)
CPU

Support for 7/6th Generation
Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
SOCKET 1 x LGA 1151
MEMORY

2 x DDR4 DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2400/2133 MHz memory modules
ETHERNET 2 x GbE LAN ports (Intel® I219LM and Realtek® RTL8111HS)
VIDEO

Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @24Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
* The DVI-D port does not support VGA connection by adapter
(2 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 4 x SATA 6Gb/s ports
EXPANSION SLOTS

1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen2 x2)
2 x PCIe x1 (Gen2 x1)
INTERNAL I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Clear CMOS jumper
1 x Buzzer

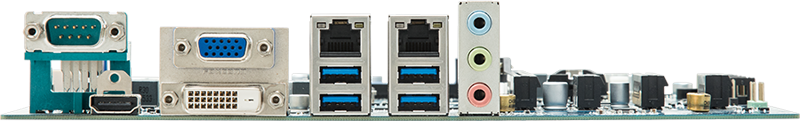

REAR I/O

3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232)
1 x HDMI
1 x DVI-D
1 x VGA
2 x RJ45 LAN ports
4 x USB 3.0
TPM Onboard TPM 2.0 security chip INFINEON SLB9665VQ2.0
OS COMPATIBILITY Windows 10 (x64)
CHIPSET Intel® H110 Express Chipset
OPERATING PROPERTIES

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Bulk Packing Capacity: 20pcs
Carton size: 609 x 581 x 362(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MDH112-00R)
ORDER INFORMATION 9MDH11BMNR-SI (Bulk Packing)
OPTIONAL KIT

TPM 2.0 module: 9CTM000NR-00
TPM Cable: 25CRZ-100600-S9R
