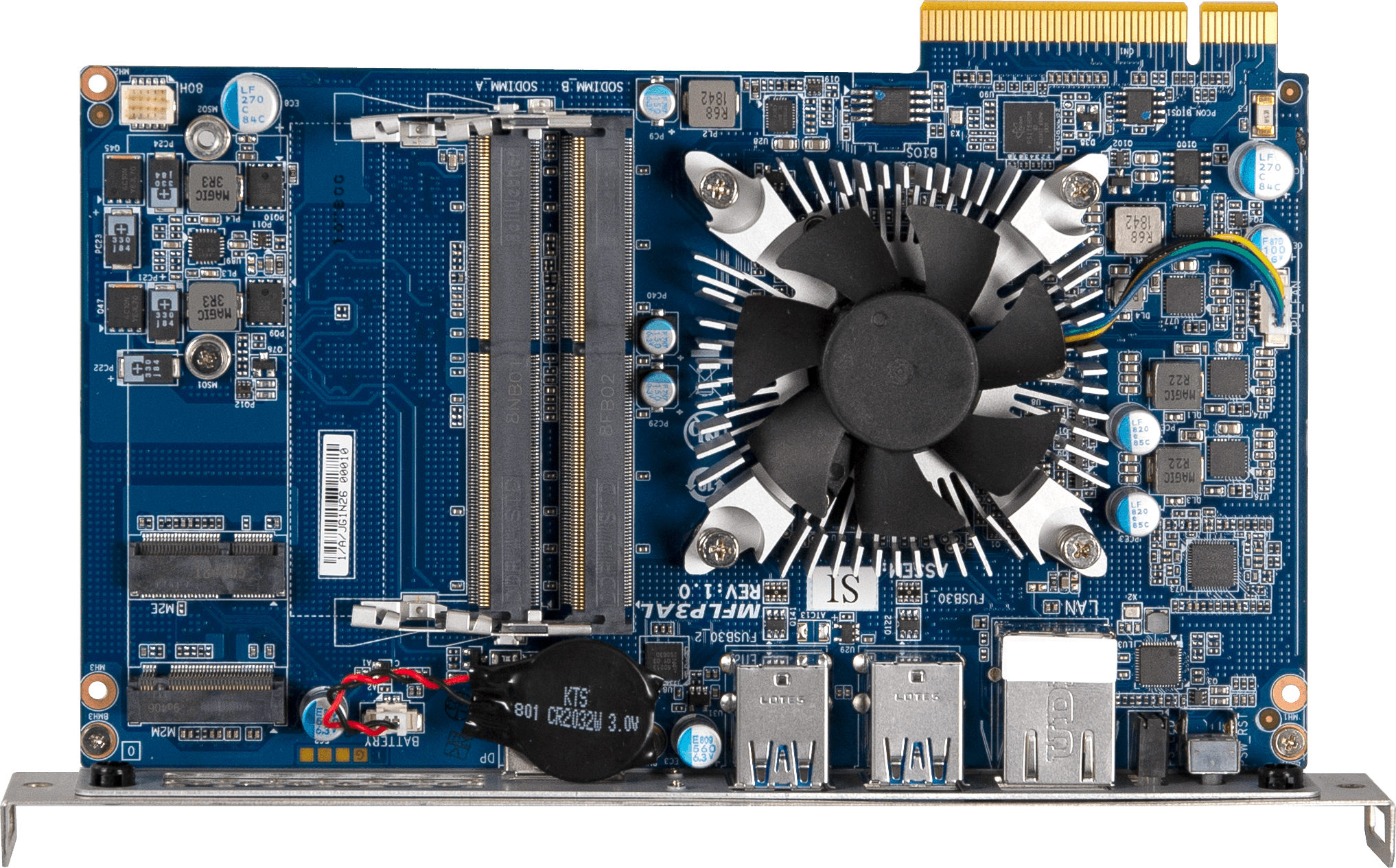

SDM-7100L

M/B MFLP3AL-SI 1.0B
  • SDM-L, 175W x 100D (mm)
  • Intel® Core™ i3-7100U Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 1 x GbE LAN ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 4 x USB 3.0 port
FORM FACTOR

SDM-Large, 175W x 100D(mm)
CPU

Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, up to 2.4 GHz
TDP 15W
SOCKET 1 x FCBGA 1356
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
ETHERNET 1 x GbE LAN port (Intel® i219V)
VIDEO

Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
AUDIO Intel® integrated Audio
EXPANSION SLOTS

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)

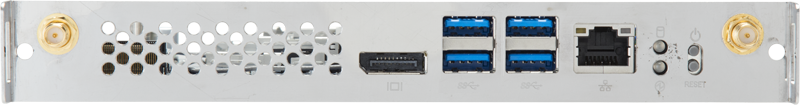

REAR I/O

1 x Display Port
1 x RJ45 LAN port
4 x USB 3.0
1 x PWR LED
1 x HDD LED
2 x Antenna(WiFi/BT)(Optional)
1 x Reset button
1 x Power button
OS COMPATIBILITY Windows 10 (x64)
CHIPSET SoC
OPERATING PROPERTIES

Operating temperature: 0°C to +55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Box Packing Capacity: 10pcs
Carton size: 465 x 351 x 217(mm)
Content:
SCREW KIT WITH #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
ORDER INFORMATION 9MFLP3ALMR-SI (Box packing)
