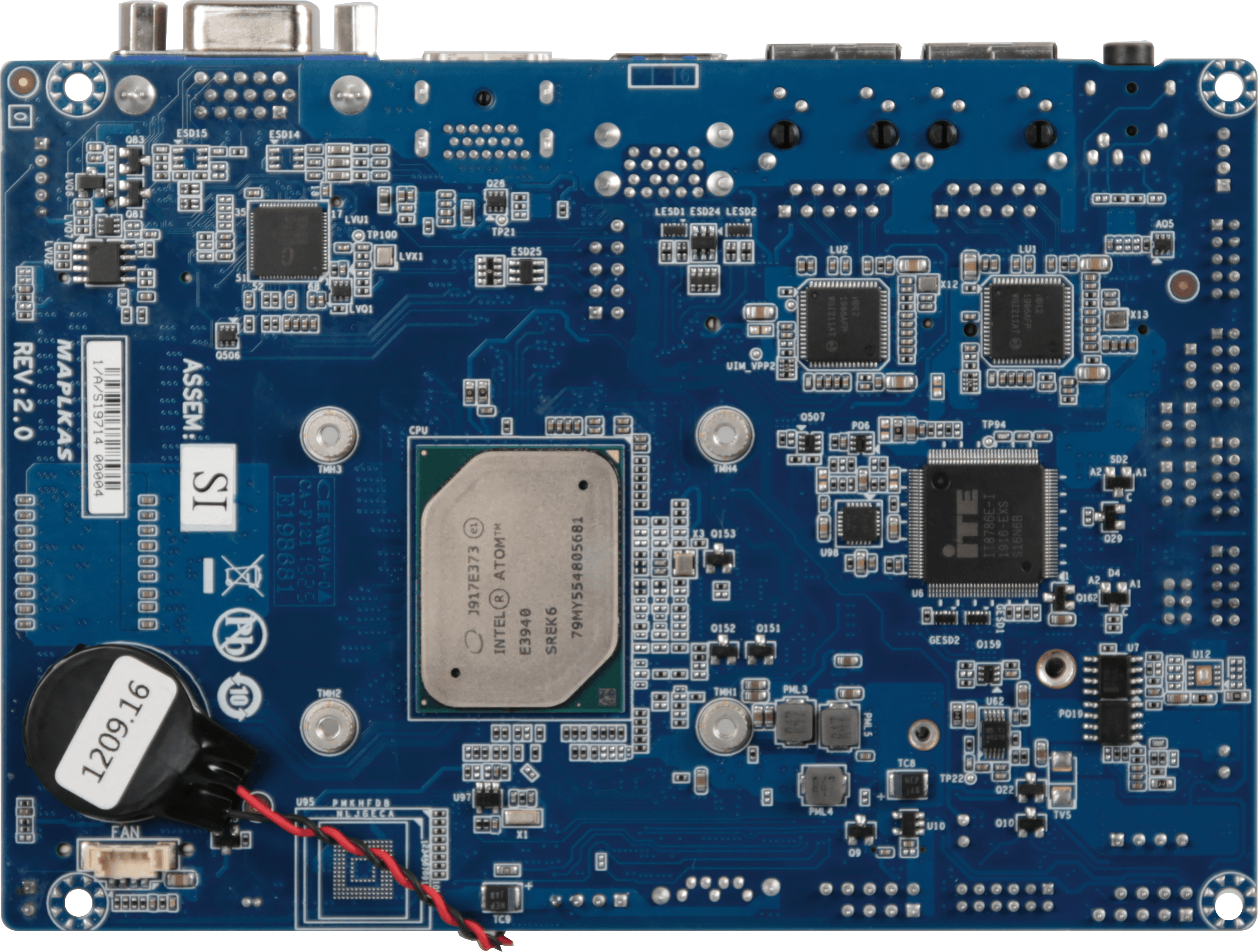

QBiP-E3940A

M/B MAPLKAS-SI 3.0C

3.5’’ SBC
Intel Atom® x5-E3940
Dual Channel DDR3L, 2 x SO-DIMMs
2 x GbE LAN ports
1 x SATA 6Gb/s port
M.2 with SATA 6Gb/s
HDMI, VGA, LVDS ports for multiple display
1 x RS-232/422/485 & RI/5V/12V COM port
3 x RS-232 COM ports

Industrial Motherboards Specifications

FORM FACTOR	3.5" SBC 146W x 101.7D(mm)
CPU	Intel Atom® x5-E3940 Processor 14nm, 4 cores, 4 threads, up to 1.8 GHz TDP 9.5W
SOCKET	1 x FCBGA 1296
MEMORY	2 x DDR3L SO-DIMM sockets, Max. Capacity 8GB Support Dual channel DDR3L 1866 MHz memory modules
ETHERNET	2 x GbE LAN ports (Intel® i211AT)
VIDEO	Integrated Graphics Processor - Intel® HD Graphics 500: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs)
AUDIO	Realtek® Audio Codec
STORAGE	1 x SATA 6Gb/s port
EXPANSION SLOTS	1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module
INTERNAL I/O	1 x 4-pin box power connector (+9V~36VDC) 1 x SATA Power header 1 x System fan header 1 x Front panel header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Backlight control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBUS header 1 x Buzzer header

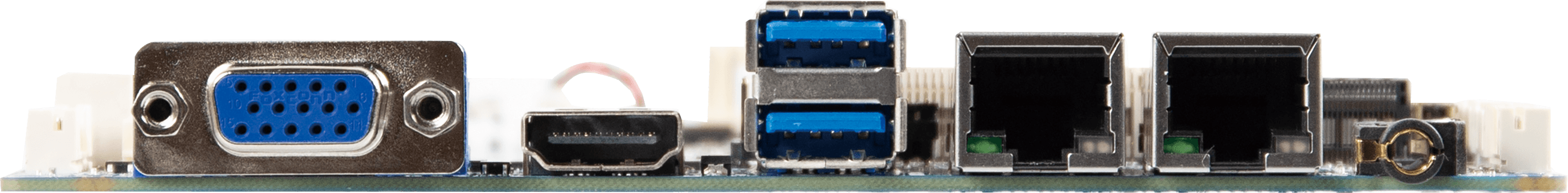

REAR I/O	1 x Headphone jack 1 x HDMI 1 x VGA 2 x RJ45 LAN ports 2 x USB 3.0
TPM	1 x TPM header
OS COMPATIBILITY	Windows 10 (x64)
OPERATING PROPERTIES	Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT	Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
ORDER INFORMATION	9MAPLKASMR-SI (Box Packing)
OPTIONAL KIT	Fanless Heatsink P/N: 25ST1-113103-A7R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R
