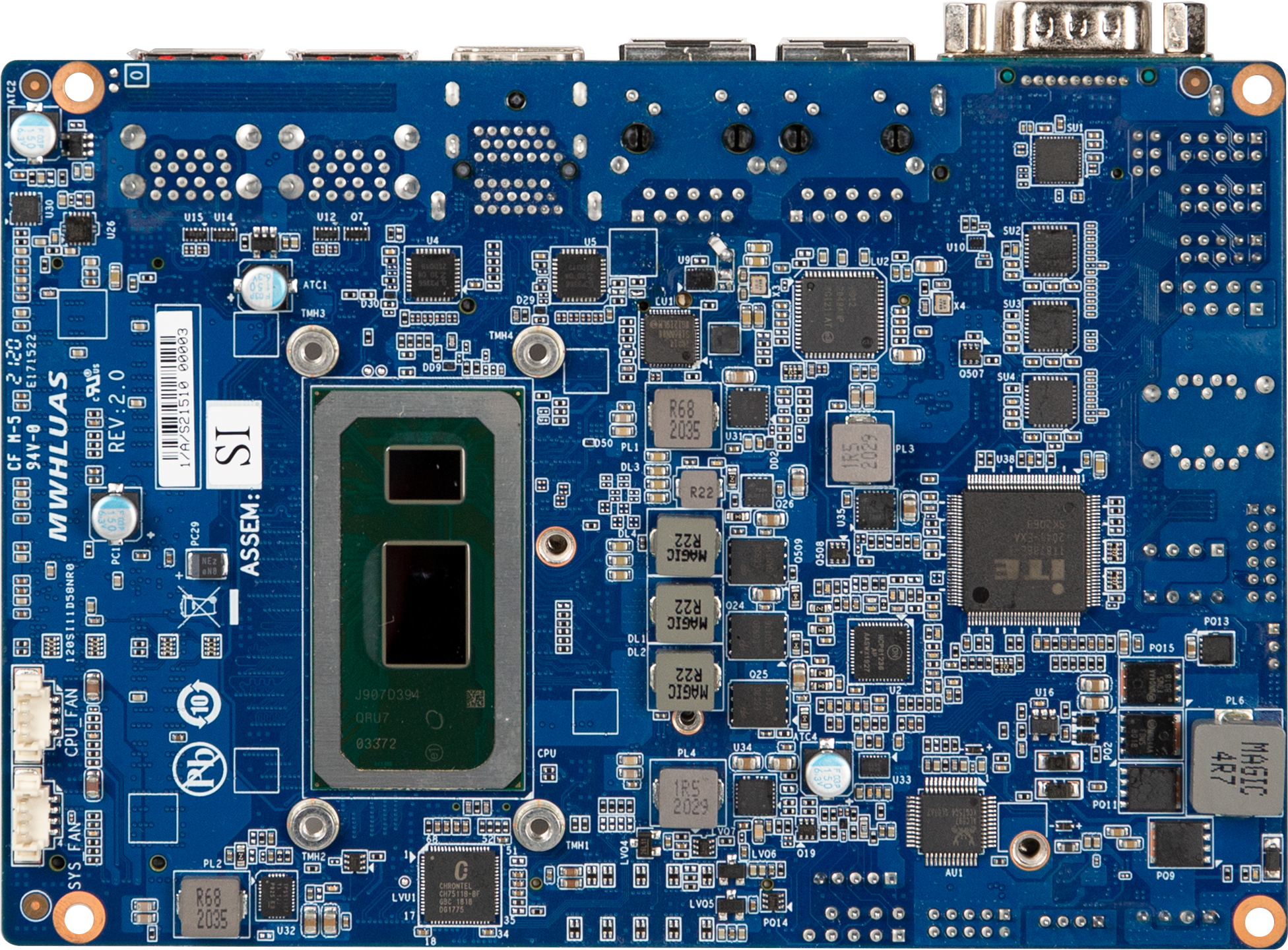

QBiP-8265A

M/B MWHLUBS-SI 1.0E
  • 3.5’’ SBC
  • Intel® Core™ i5-8265U Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN ports
  • 2 x SATA 6Gb/s ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 2 x HDMI, LVDS ports for multiple display
  • 1 x RS-232/422/485 & RI/5V/12V COM port
  • 3 x RS-232 COM ports
  • 4 x USB 3.2 Gen 2x1
FORM FACTOR

3.5" SBC
146W x 101.7D(mm)
CPU

Intel® Core™ i5-8265U Processor
14nm, 4 cores, 8 threads, up to 3.9 GHz
TDP 15W
SOCKET 1 x FCBGA 1528
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules
ETHERNET 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
VIDEO

Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2304 @24Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 2 x SATA 6Gb/s Ports (SATA RAID 0/1/5)
EXPANSION SLOTS

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
INTERNAL I/O

1 x 4-pin box power connector (DC in +9V~36VDC) (+48VDC for optional)
2 x SATA Power headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Backlight control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBUS header

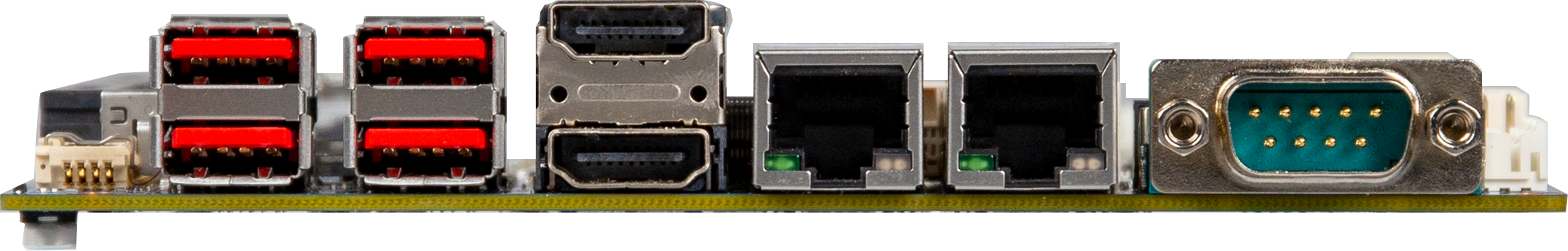

REAR I/O

1 x COM port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN ports
4 x USB 3.2 Gen 2x1
TPM 1 x TPM header
OS COMPATIBILITY Windows 10 (x64)
OPERATING PROPERTIES

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Capacity: 10pcs
Carton size: 465 x 351 x 217(mm)
Content:
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
ORDER INFORMATION 9MWHLUBSMR-SI (Box Packing)
OPTIONAL KIT

Fanless Heatsink P/N: 25ST1-153108-A7R
Fansink P/N: 25ST4-113100-A7R
Heat spreader P/N: 25ST5-8265A0-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
