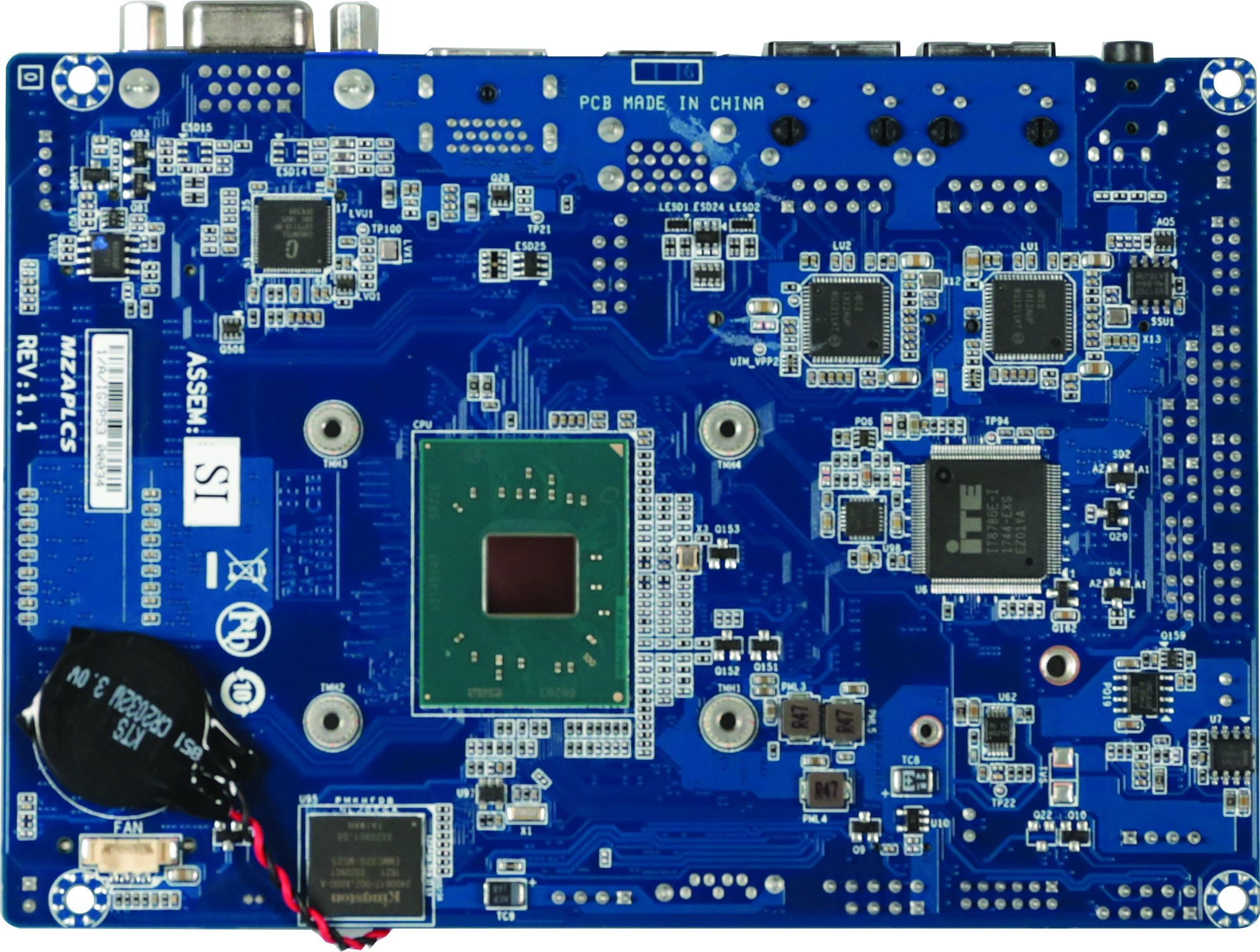

QBiP-4200C

3.5" SBC
146W x 101.7D(mm)

Intel® Pentium® N4200 Processor
14nm, 4 cores, 4 threads, up to 2.50 GHz
TDP 6W

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR3L 1866 MHz memory module

Integrated Graphics Processor -Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)

1 x 2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

1 x 4-pin box power connector (+9V~36VDC)
1 x SATA Power header
1 x System fan header
1 x Front panel header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x Backlight control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBUS header
1 x Buzzer header

1 x Headphone jack
1 x HDMI
1 x VGA
2 x RJ45 LAN ports
2 x USB 3.0

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

Capacity: 20pcs
Carton size: 384 x 251 x 211(mm)
Content:
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)

Fanless Heatsink P/N: 25ST1-153109-A7R
Heat spreader P/N: 25ST5-CBAB00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
