QBi-8145A

M/B MWHLUCH-SI 1.0B
  • Embedded IPC Motherboard
  • Intel® Core™ i3-8145UE Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN ports
  • 1 x SATA 6Gb/s port
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 2 x HDMI ports, eDP port for multiple display
  • 1 x RS-232/422/485 COM port
FORM FACTOR

Embedded Compact Board
105W x 110D(mm)
CPU

Intel® Core™ i3-8145UE Processor
14nm, 2 cores, 4 threads, up to 3.9 GHz
TDP 15W
SOCKET 1 x FCBGA 1528
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2400 MHz memory modules
ETHERNET 2 x GbE LAN ports (Intel® i219V & Realtek® RTL8111HS)
VIDEO

Integrated Graphics Processor - Intel® UHD Graphics 620 support:
2 x HDMI 1.4 port, supporting a maximum resolution of 4096x2304 @24Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 1 x SATA 6Gb/s port (RAID 0/1)
EXPANSION SLOTS

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

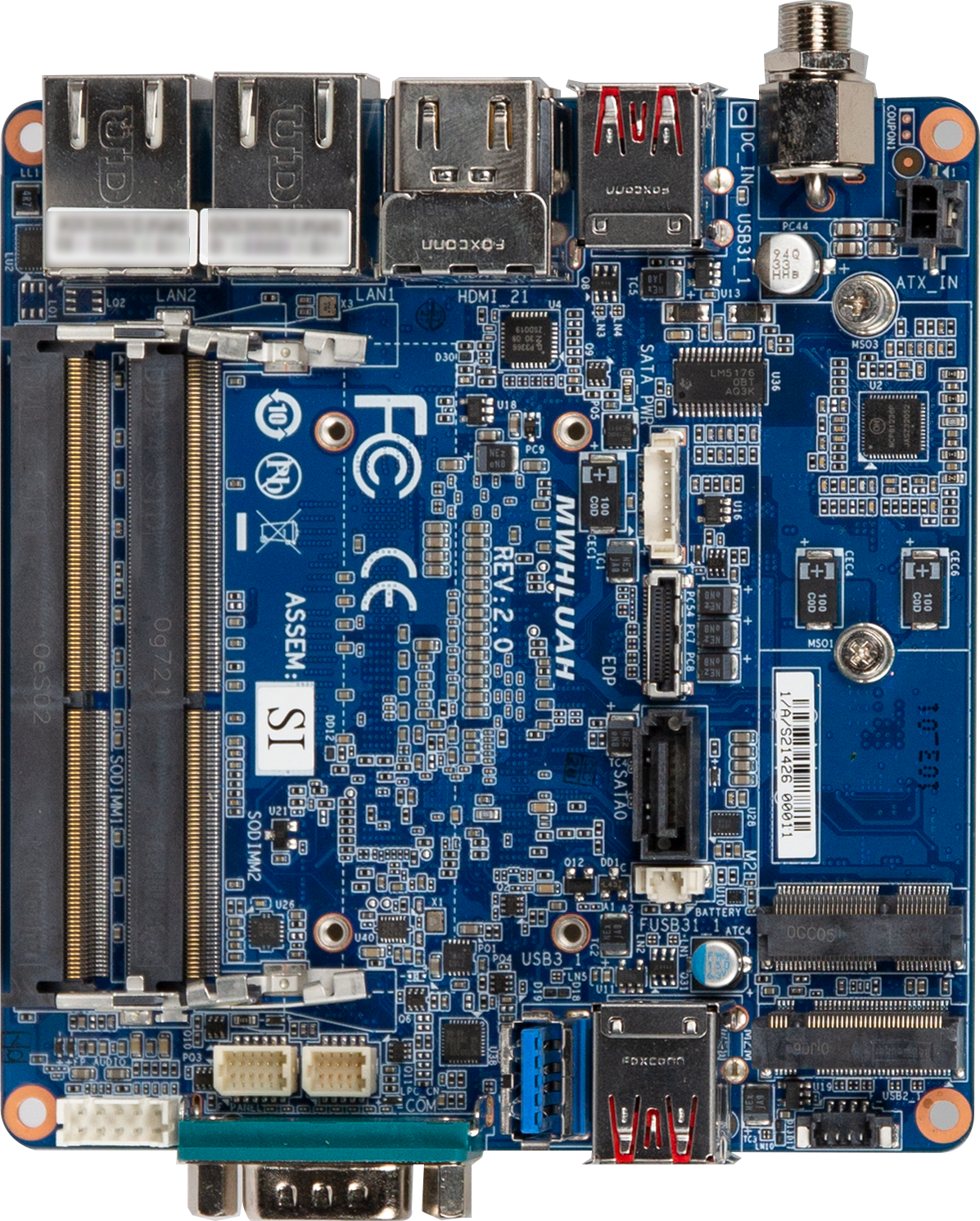

INTERNAL I/O

1 x 2-pin power connector
1 x SATA Power header/optional for eDP Power
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 2.0 header
1 x Vertical USB 3.2 Gen 1

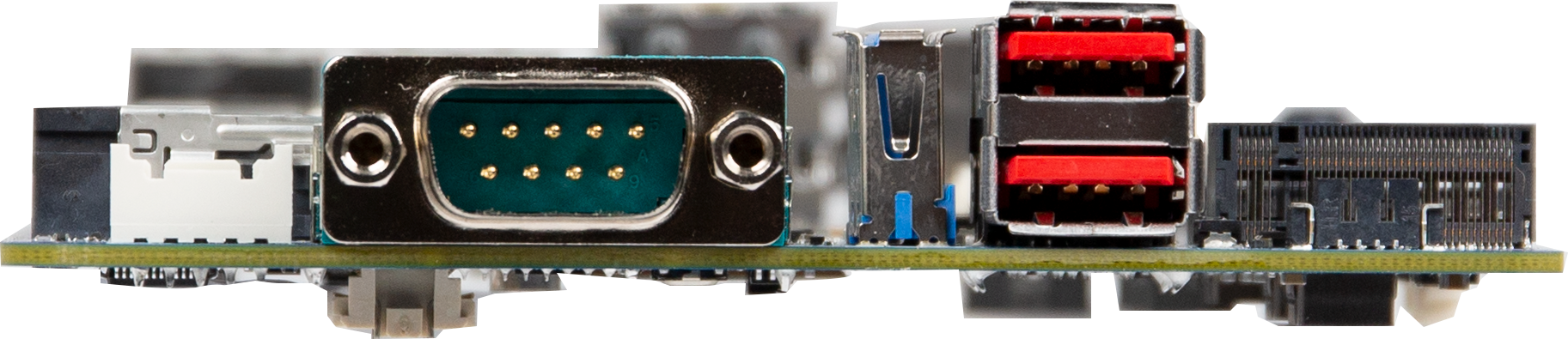

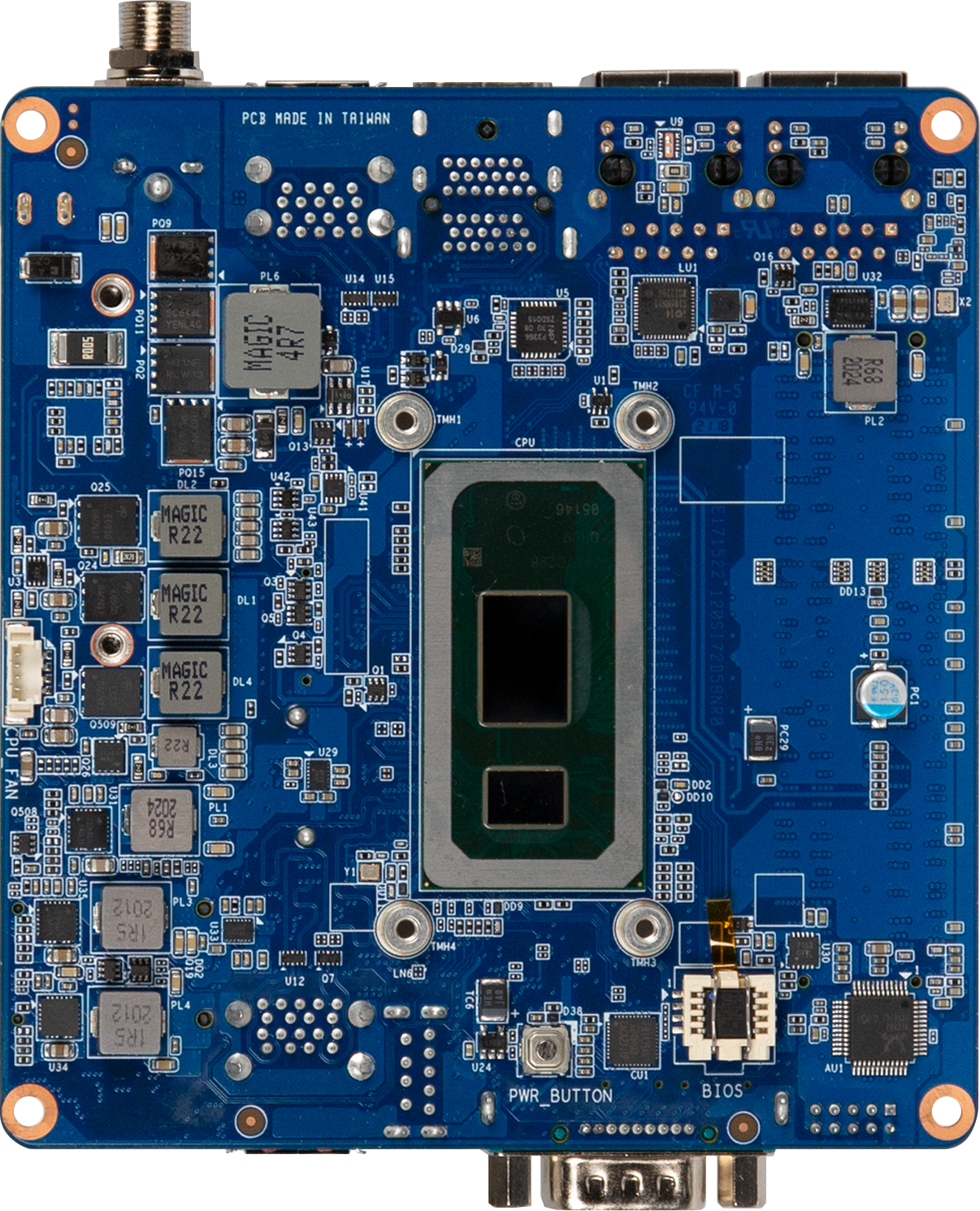

FRONT I/O

2 x USB 3.2 Gen 2x1
1 x Power button
1 x COM port (RS-232/422/485)

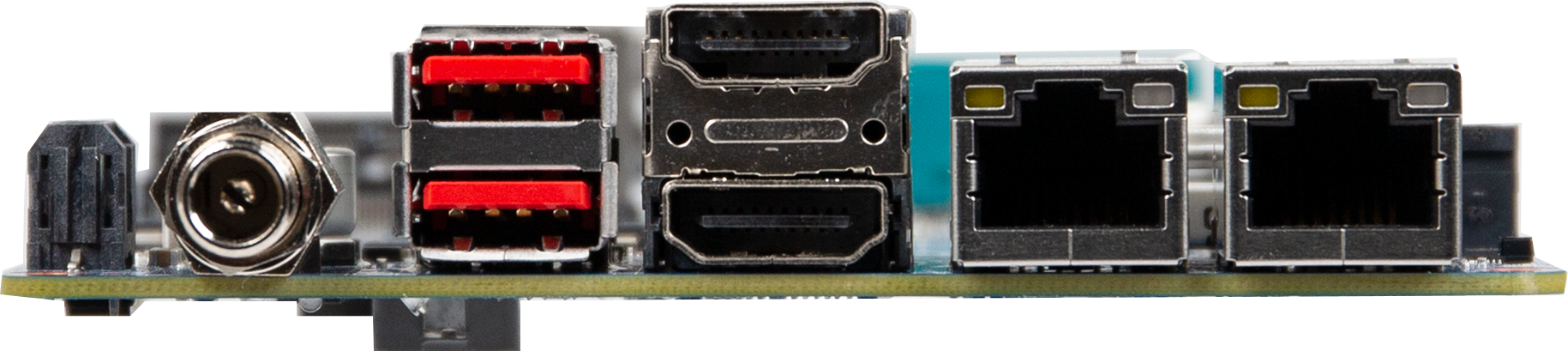

REAR I/O

2 x HDMI
2 x RJ45 LAN ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack (+9~36VDC)
OS COMPATIBILITY Windows 10 (x64)
OPERATING PROPERTIES

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Capacity: 10pcs
Carton size: 465x351x217(mm)
Content:
SATA power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
ORDER INFORMATION 9MWHLUCHMR-SI (Box Packing)
OPTIONAL KIT

Fanless Heatsink P/N: 25ST1-123118-AFR
Fansink P/N: 12SF2-01A073-00R
Heat spreader P/N: 25ST5-8265A1-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
