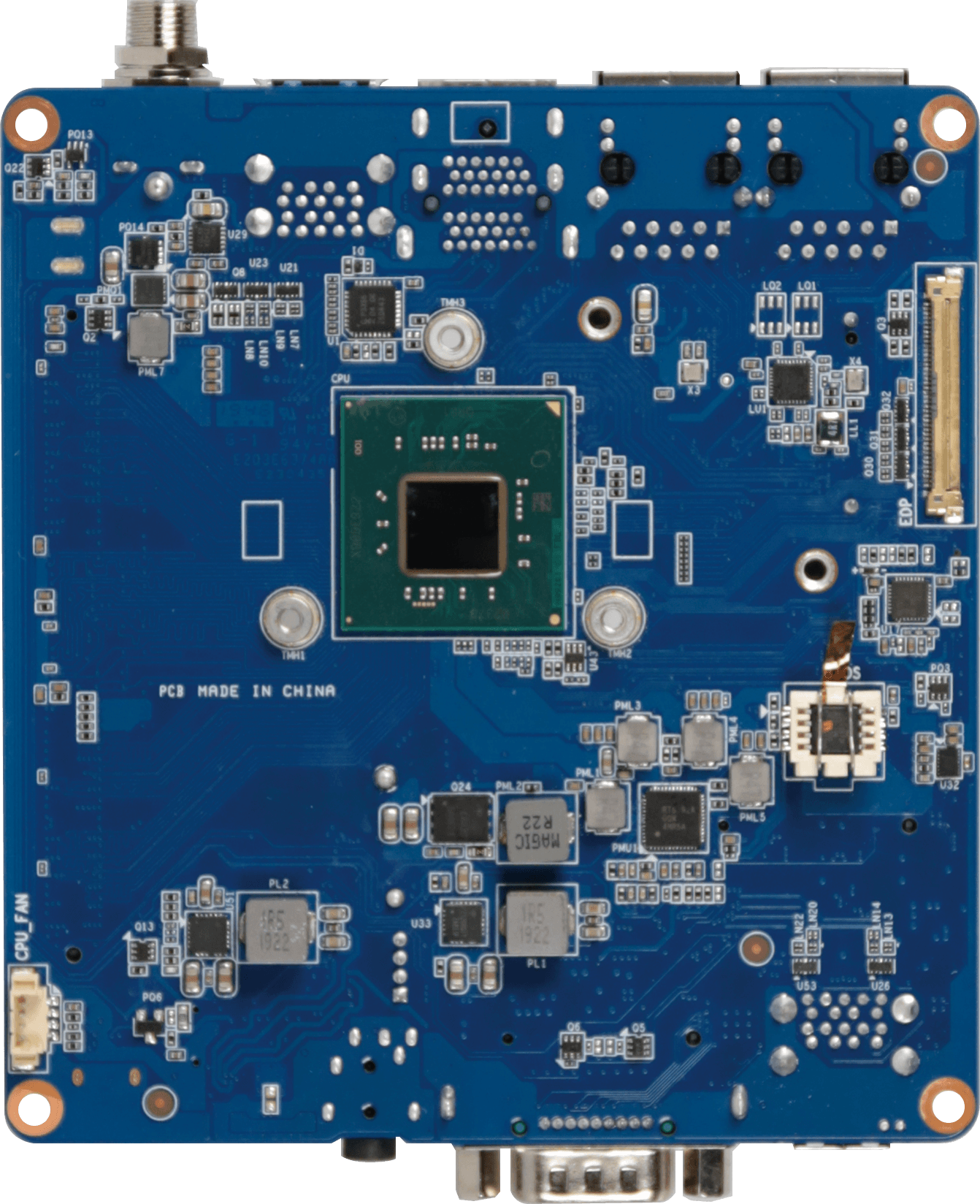

QBi-4125A

M/B MGMLKAH-SI 1.0A
  • Embedded IPC Motherboard
  • Intel® Celeron® J4125 Processor
  • Single Channel DDR4, 1 x SO-DIMM
  • 2 x GbE LAN ports
  • 1 x SATA 6Gb/s port
  • 2 x HDMI port, eDP ports for multiple display
  • 1 x RS232 COM port
FORM FACTOR

10x10
105W x 110D(mm)
CPU

Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.7 GHz
TDP 10W
SOCKET 1 x FCBGA 1090
MEMORY

1x DDR4 SO-DIMM sockets, Max. Capacity 8GB
Support Single Channel DDR4 2400 MHz memory module
ETHERNET 2 x GbE LAN ports (Intel® i211AT & Realtek® RTL8111HS)
VIDEO

Integrated Graphics Processor - Intel® UHD Graphics 600:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 1 x SATA 6Gb/s Port (RAID 0/1)
EXPANSION SLOTS

1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
INTERNAL I/O

1 x SATA Power header
1 x CPU fan header
1 x power button header
2 x USB 2.0 headers
1 x Speaker out header

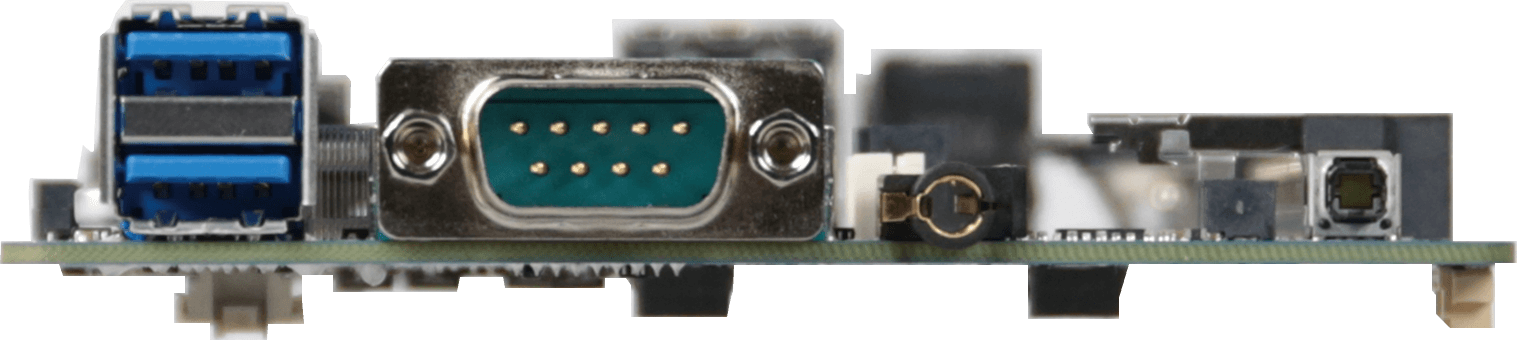

FRONT I/O

2 x USB 3.0
1 x COM port (RS-232)
1 x Headphone Jack
1 x Power button

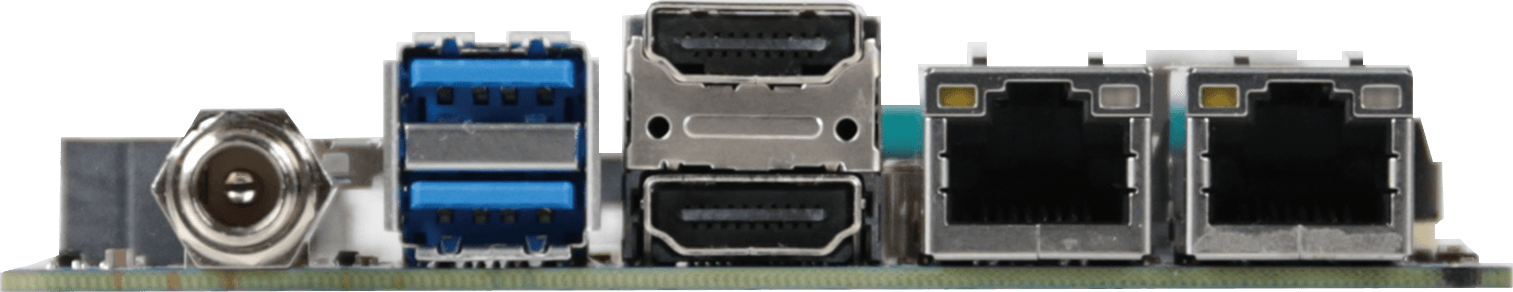

REAR I/O

2 x RJ45 LAN ports
2 x USB 3.0
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)
OS COMPATIBILITY Windows 10 (x64)
OPERATING PROPERTIES

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Capacity: 10pcs
Carton size: 465x351x217(mm)
Content:
CABLE SATA POWER 150mm x 1 (P/N: 25CRI-150621-K1R)
ORDER INFORMATION 9MGMLKAHMR-SI (Box Packing)
OPTIONAL KIT

Fanless Heatsink P/N: 25ST1-123001-A7R
Heat spreader P/N: 25ST5-CGAA00-A8R
