HDMI, Display Port, VGA, eDP ports for multiple display
2 x RS-232/422/485 & RI/5V/12V COM ports
2 x RS-232 COM ports

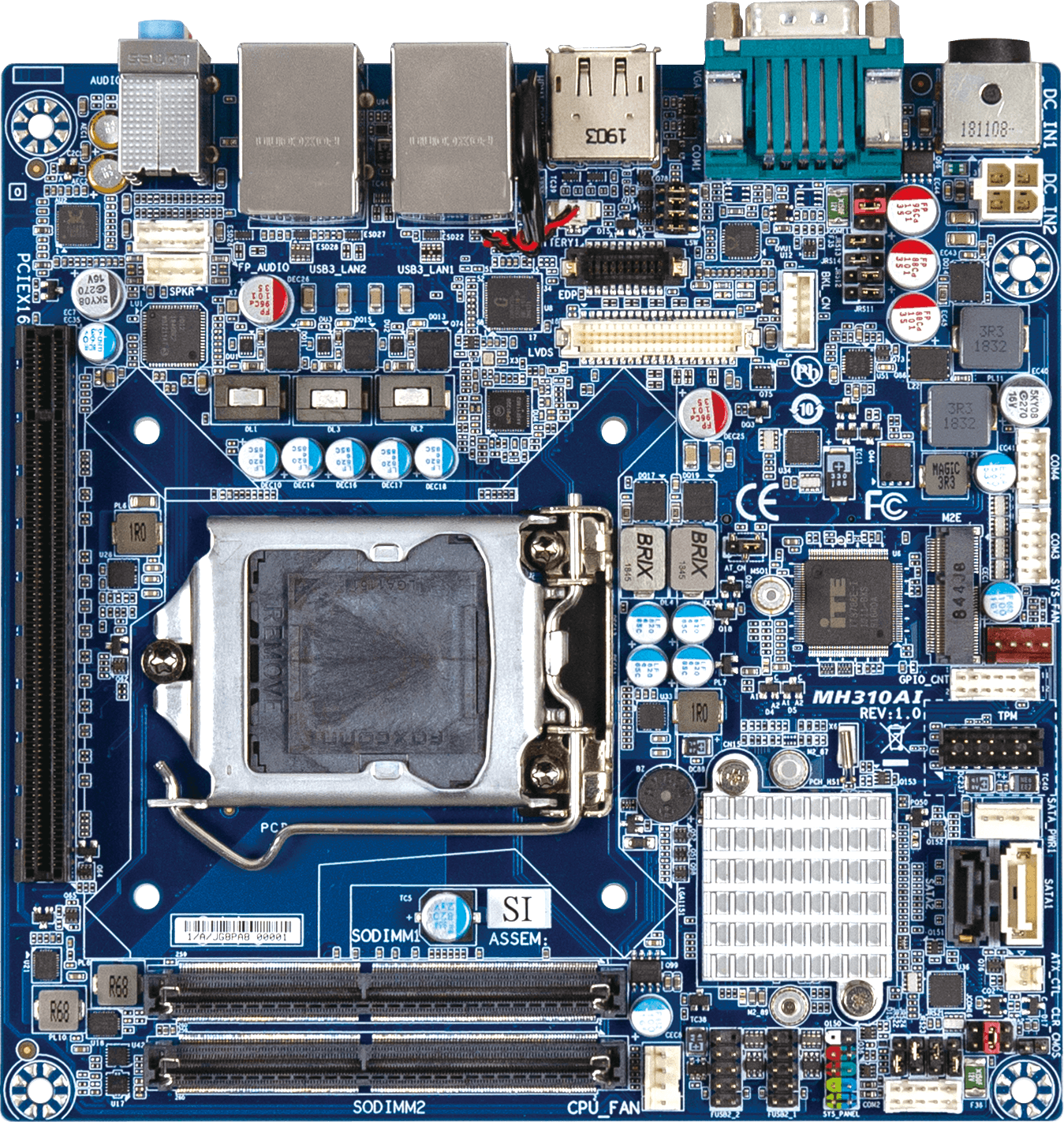

FORM FACTOR
Mini-ITX
170W x 170D(mm)
CPU
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
SOCKET
1 x LGA 1151
MEMORY
2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2666/2400 MHz memory modules
ETHERNET
2 x GbE LAN ports (Intel® i219V and i211AT)
VIDEO
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP port is alternative with LVDS port, only one can be worked at the same time
(2 independent display outputs)
AUDIO
Realtek® Audio Codec
STORAGE
2 x SATA 6Gb/s ports
EXPANSION SLOTS
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
INTERNAL I/O
1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBUS header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper

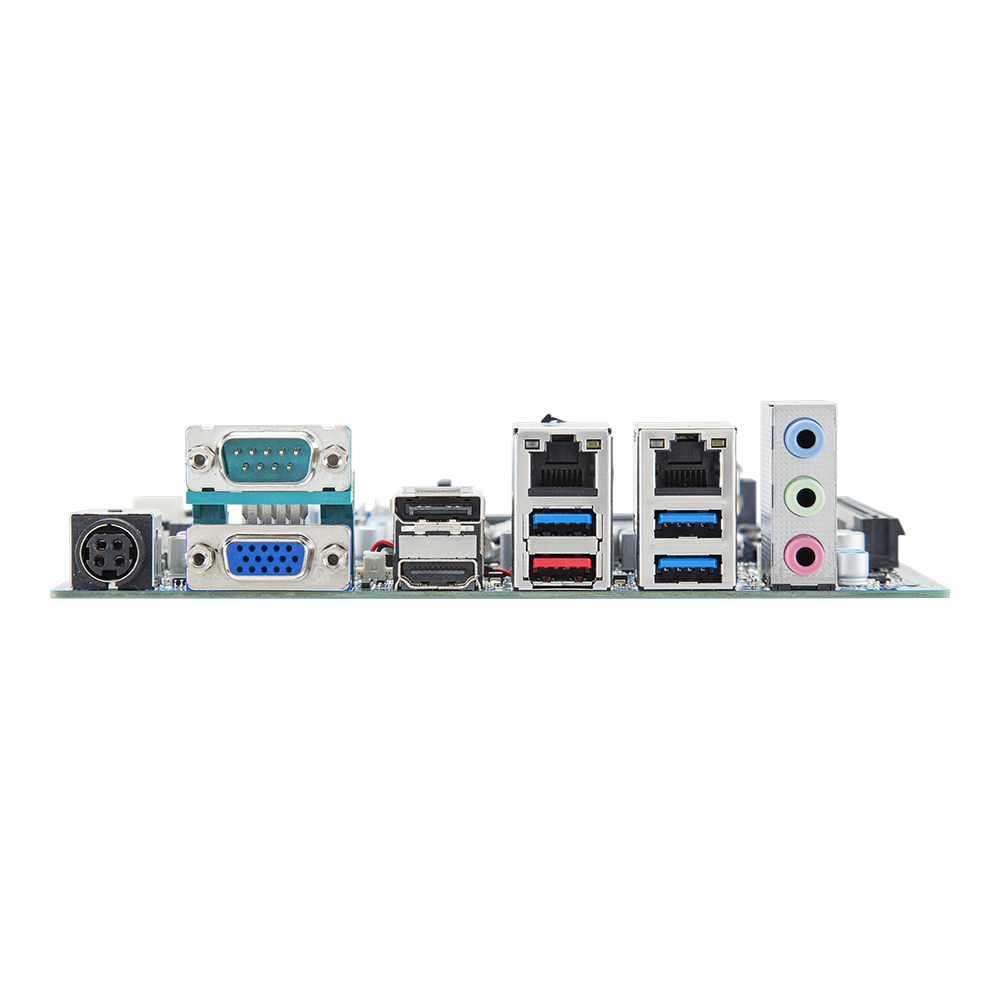

REAR I/O
3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN ports
4 x USB 3.0
1 x DC Jack (+12V/+19V/+24VDC)
TPM
1 x TPM Header
OS COMPATIBILITY
Windows 10 (x64)
CHIPSET
Intel® H310 Express Chipset
OPERATING PROPERTIES
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT
Box Packing Capacity: 10pcs
Carton size: 465 x 351 x 217 (mm)
Content:
IO Shield x 1 (P/N: 12AIO-MDH114-00R)
SATA Power cable x 1 (P/N: 25CRI-300B01-K1R)
SCREW FLAT HEAD M2*2.5 x 1 (P/N: 12KS2-110202-01R)
SCREW STAND OFF 12L15 x 1 (P/N: 12KSF-F10303-20R)
SCREW I HEAD M2x3L x 1 (P/N: 25KSG-130032-S0R)
