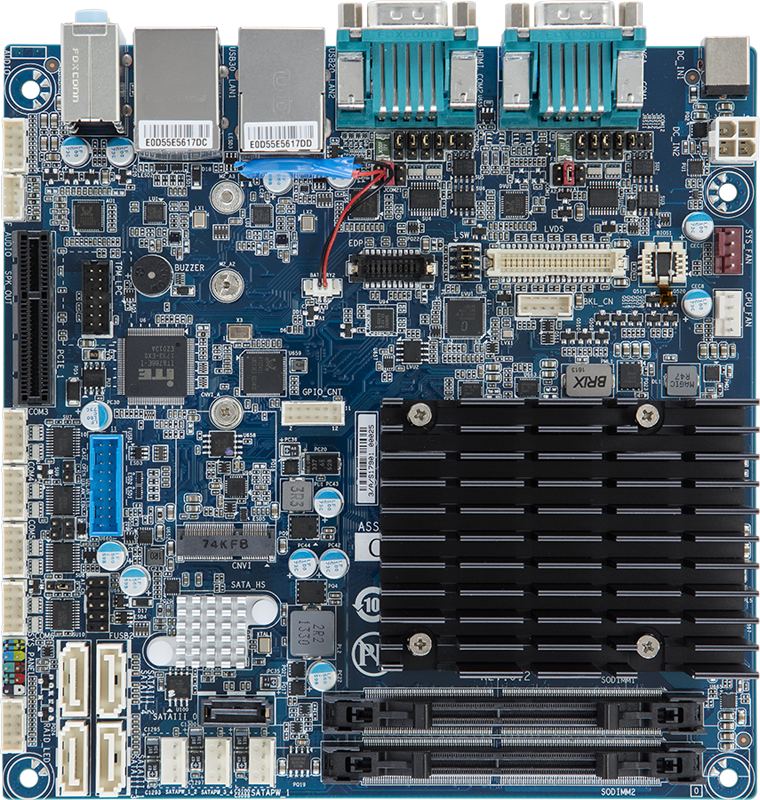

mITX-4125A

M/B MGMLJAI-SI

  • Mini-ITX form factor
  • Intel® Celeron® J4125 Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN ports
  • 5 x SATA 6Gb/s ports with one SATA DOM supported
  • HDMI 2.0a, VGA, eDP (in option), LVDS ports for multiple display
  • 1 x PCIe x4 (Gen2 x 2) expansion slot
  • 2 x RS-232/422/485 & RI/5V/12V COM ports
  • 4 x RS-232 COM ports
FORM FACTOR

Mini-ITX
170W x 170D(mm)
CPU

Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.70 GHz
TDP 10W
SOCKET 1 x FCBGA 1090
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR4 2400 MHz memory modules
ETHERNET 2 x GbE LAN ports (Realtek® RTL8111HS)
VIDEO

Integrated Graphics Processor - Intel® UHD Graphics 600:
1 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920X1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 5 x SATA 6Gb/s ports (4 x from Marvell 88SE9230, support RAID/0/1/10) (1 x from J4125 supports SATA DOM)
EXPANSION SLOTS

1 x PCIe x4 (Gen2 x2)
1 x 2280/2260/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (CNVi cards only)
INTERNAL I/O

1 x 4-pin ATX main power connector
3 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
2 x USB 3.0 headers
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBUS header
1 x Case open header
1 x AT/ATX mode jumper
1 x Backlight Control header
1 x RAID LED header
2 x LAN LED headers
1 x Clear CMOS jumper
1 x Buzzer
REAR I/O

3 x Audio jacks (Line in, Line out, Mic in)
2 x COM ports (RS-232/422/485 and RI/5V/12V)
1 x HDMI
1 x VGA
2 x RJ45 LAN ports
2 x USB 2.0
2 x USB 3.0
1 x DC Jack (+12VDC)
TPM 1 x TPM Header
OS COMPATIBILITY Windows 10 (x64)
OPERATING PROPERTIES

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Bulk Packing Capacity: 20pcs
Carton size: 550 x 451 x 330(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MGMLJA-00R)
SATA power cables x 2 (P/N: 25CRI-300B01-K1R)
ORDER INFORMATION 9MGMLJAINR-SI (Bulk Packing)
OPTIONAL KIT

TPM 2.0 module: 9CTM000NR-00
