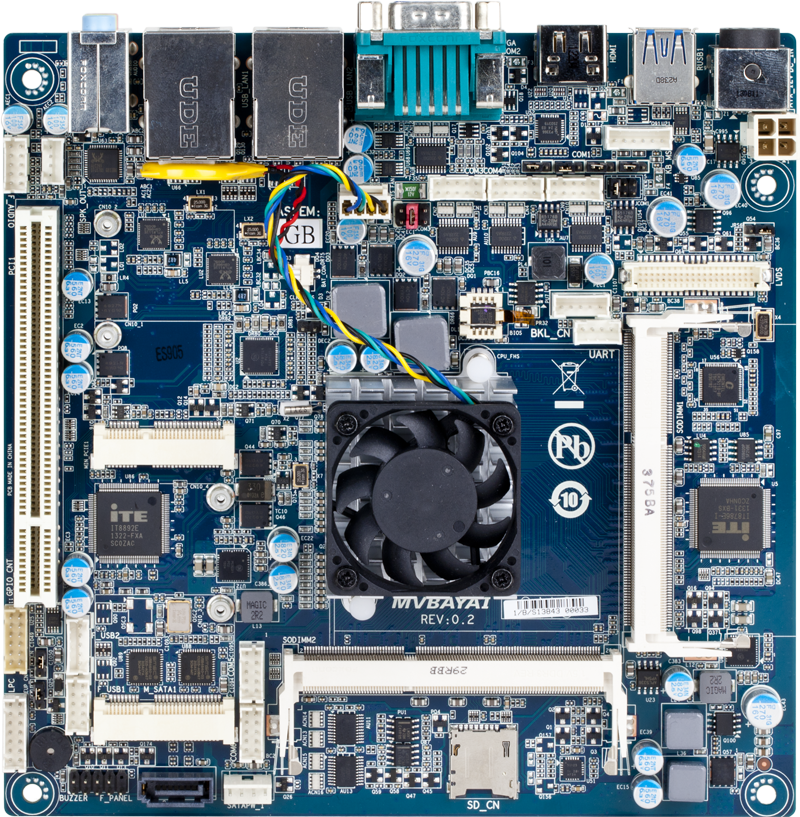

mITX-1900A

M/B MVBAYAI 1.0F
  • Mini-ITX form factor
  • Intel® Celeron® J1900 Processor
  • Dual Channel DDR3L, 2 x SO-DIMMs
  • 2 x GbE LAN ports
  • 1 x SATA 3Gb/s port
  • HDMI, VGA, eDP (in option), LVDS ports for multiple display
  • 1 x PCIe x4 (Gen2 x 2) expansion slot
  • 6 x COM ports
FORM FACTOR

Mini-ITX
170W x 170D(mm)
CPU

Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
SOCKET 1 x FCBGA 1170
MEMORY

2 x DDR3L SO-DIMM sockets, Max. Capacity 8GB
Support Dual channel DDR3L 1333 MHz memory modules
ETHERNET 2 x GbE LAN ports (Realtek RTL8111G)
VIDEO

Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 1.4 port, max. resolution 1920x1080 @60Hz
1 x VGA port, max. resolution 2560x1600 @60Hz
1 x LVDS port, max. resolution 1920x1200 @60Hz
(2 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 1 x SATA 3Gb/s port (incl. 1 x SATA supports SATA DOM)
EXPANSION SLOTS

1 x Full-size mSATA slot
1 x Full-size Mini-PCIe slot
1 x PCI slot
INTERNAL I/O

1 x 4-pin ATX power connector
1 x SATA power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W speaker out header
2 x USB 2.0 header
1 x COM header (RS-232/422/485)
3 x COM headers (RS-232)
1 x COM header (RS-232 and RI/5V/12V)
1 x GPIO (8 bits) & SMBUS header
1 x PS/2 Keyboard/Mouse header
1 x AT/ATX mode select jumper
1 x Backlight control header
1 x Clear CMOS jumper
1 x Buzzer

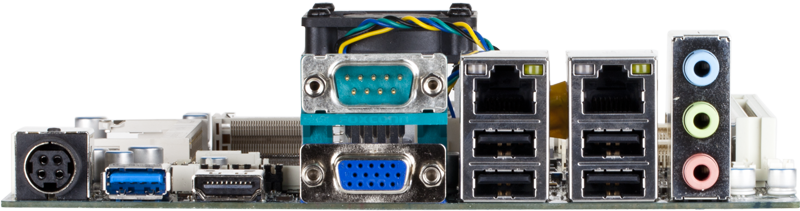

REAR I/O

3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232)
1 x HDMI
1 x VGA
2 x RJ45 LAN ports
4 x USB 2.0
1 x USB 3.0
1 x DC Jack (+12VDC)
OS COMPATIBILITY Windows 8/8.1 32/64bit
OPERATING PROPERTIES

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Capacity: 20pcs
Carton size: 550 x 451 x 330(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MVBAY0-00R)
SATA power cables x 1 (P/N: 25CRI-100B00-H3R)
SATA cable x 1 (P/N: 25CF4-500522-H3S)
ORDER INFORMATION Fan version: 9MVBAYAINS-SI Fanless version: 9MVBAYAINS-00
