iTXL-Q47EA

M/B MQ47EAT-SI 1.0B
  • Thin Mini-ITX form factor
  • Supports 10th Generation Intel® Core™ Processors
  • Intel® Q470E Express chipset
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN ports
  • 4 x SATA 6Gb/s ports
  • HDMI, Display Port, eDP/LVDS ports for Multiple Display
  • Realtek® Audio codec
  • 1 x RS232/422/485 & 5V/12V/RI COM port
  • 1 x RS232 COM port
FORM FACTOR

Thin Mini ITX
170W x 170D(mm)
CPU

Support for 10th Generation
Intel® Core™ i9/i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1200 package
TDP under 65W
SOCKET LGA1200
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2933/2666 MHz memory modules
ETHERNET 2 x GbE LAN ports (Intel® I219LM and Intel® I211AT)
VIDEO

Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
3 independent display outputs
AUDIO Realtek® Audio codec
STORAGE 4 x SATA 6Gb/s ports (RAID 0/1/5/10)
EXPANSION SLOTS

1 x PCIe x16 (Gen3 x8)
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
INTERNAL I/O

1 x 4-pin ATX main power connector
2 x SATA Power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x Backlight Control header
1 x ATX Control header
1 x AT/ATX mode select jumper

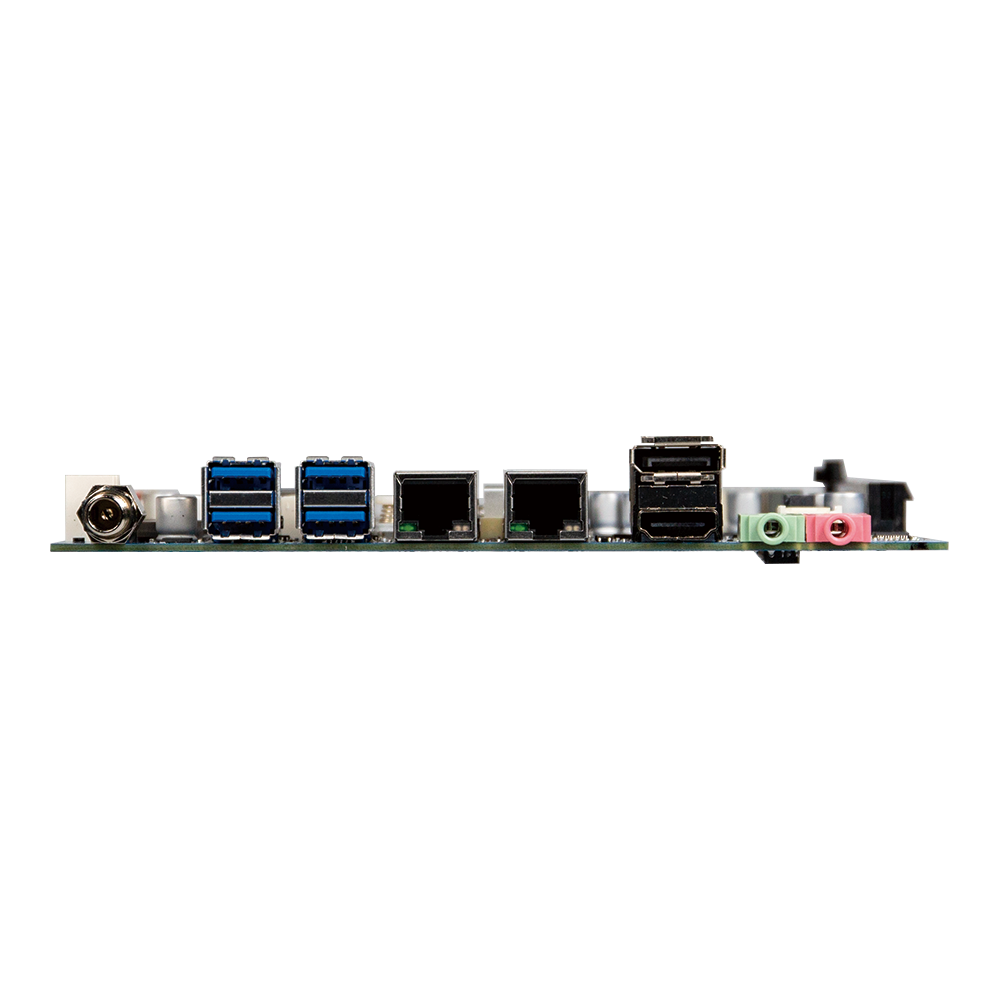

REAR I/O

2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
2 x RJ45 LAN ports
4 x USB 3.2 Gen1
1 x DC Jack (+12V/+19~24VDC)
TPM 1 x TPM header
OS COMPATIBILITY Windows 10 (x64)
CHIPSET Intel® Q470E Chipset
OPERATING PROPERTIES

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Carton size : 465 x 351 x 217 (mm)
Packing Capacity : 10pcs

Single box size : 221 x 178 x 65 (mm)

Including:
IO Shield x 1 (12AIO-MQ47EA-20R)
SATA Power cable x 2 (25CRI-300B01-K1R)
ORDER INFORMATION 9MQ47EATMR-SI (Box packing)
OPTIONAL KIT

TPM 2.0 module : 9CTM000NR-00
TPM Cable : 25CRZ-100600-S9R
