GA-IMB410TN

M/B GA-IMB410TN 1.0E
  • Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S)
  • Intel 10thGen,Intel Graphics DX12, OGL4.5
  • Support Dual channel DDR4 2666/2933MHz, 2 x So-DIMM up to 32G System Memory
  • Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S 65W)
  • 1 x HDMI2.0, 2 x HDMI1.4a, 1 x Dual Channel 24-bits LVDS
  • 4 x USB3.0, 4 x USB2.0, 2 x SATA3
  • 1 x Mini PCIe/mSATA , 1 x PCIe x16, 1 x M.2 Wifi, 1 x 2280 SSD slot
  • Gigabit LAN : 2 x Intel LAN
  • 1 x TPM IC(Optional)
  • DC in 12/19~24V
  • Op temp : 0~60 degree
FORM FACTOR

Thin Mini ITX
170W x 170D(mm)
CPU
Support for 10th Generation
Intel® Core™ i9/i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1200
package
TDP under 65W
SOCKET LGA1200
MEMORY

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2666/2933 MHz memory modules
ETHERNET 2 x GbE LAN ports
VIDEO

Integrated Graphics Processor-Intel® HD Graphics support:
2 x HDMI1.4a, supporting a maximum resolution of 4096 x 2160@30Hz
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160@60 Hz
1 x D-Sub port (Optional and share with one HDMI1.4 Port, Default support HDMI)
(2 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 2 x 2.5" HDD/SSD (SATA 6Gb/s)
EXPANSION SLOTS

1 x mPCIe x16 (Gen3 x16)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
INTERNAL I/O

1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector on the back of the motherboard
2 x SATA 6Gb/s connectors
1 x Mini PCIe/MSATA connector
1 x USIM connector on the back of the motherboard
1 x front panel header
1 x front panel audio header
1 x battery power cable connector
2 x USB 2.0/1.1 headers
4 x serial port power select jumpers
1 x AT/ATX mode switch jumper (AT_ATX)
4 x serial port
1 x SATA Power connector
1 x GPIO header
1 x LVDS header
1 x LVDS drive voltage jumper (LCD_VCC)
1 x flat panel display switch header (MON_SW)
1 x flat panel display header (FPD)
1 x speaker header (SPKR)
1 x buzzer header (SPEAKER)
1 x Clear CMOS jumper
1 x chassis intrusion header
1 x I2C header
1 x SMbus header

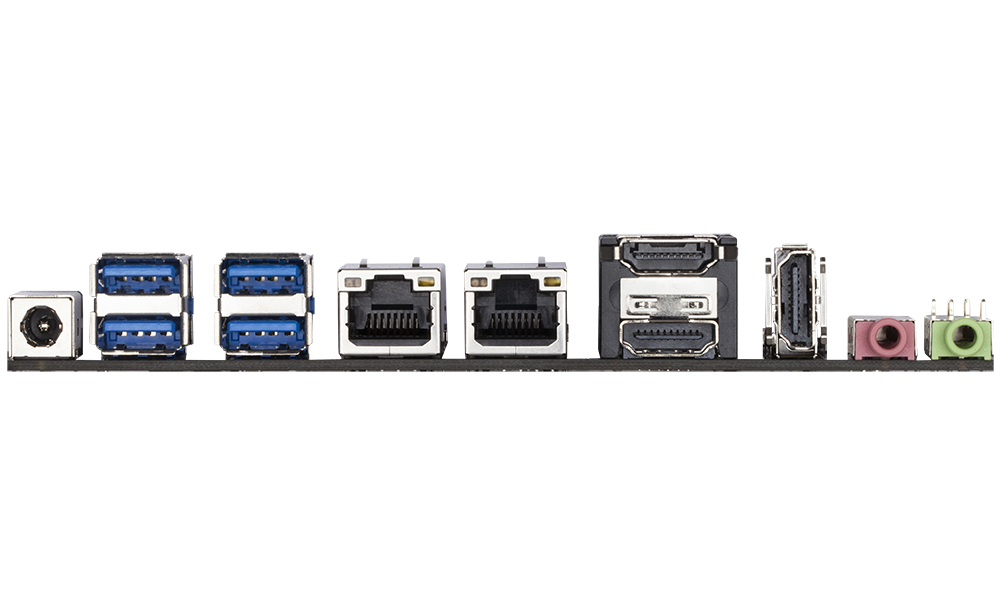

REAR I/O

2 x RJ45 LAN ports
4 x USB 3.0/2.0 ports
2 x HDMI1.4a
1 x HDMI2.0 port (Note)
2 x audio jacks
TPM 1 x TPM header
OS COMPATIBILITY Windows 10 (x64)/Linux
CHIPSET Intel® H410 Express Chipset
OPERATING PROPERTIES

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT

Capacity: 10pcs
ORDER INFORMATION 9MIM410TN-00 (color box)
OPTIONAL KIT

COM cable P/N: 12CF1-1CM011-01R
SATA Power cable P/N: 12CF1-1SATPW-01R
SATA cable P/N: 12CF1-2SAT1B-01R
CPU cooler P/N: 24TSE-621PET-01R
