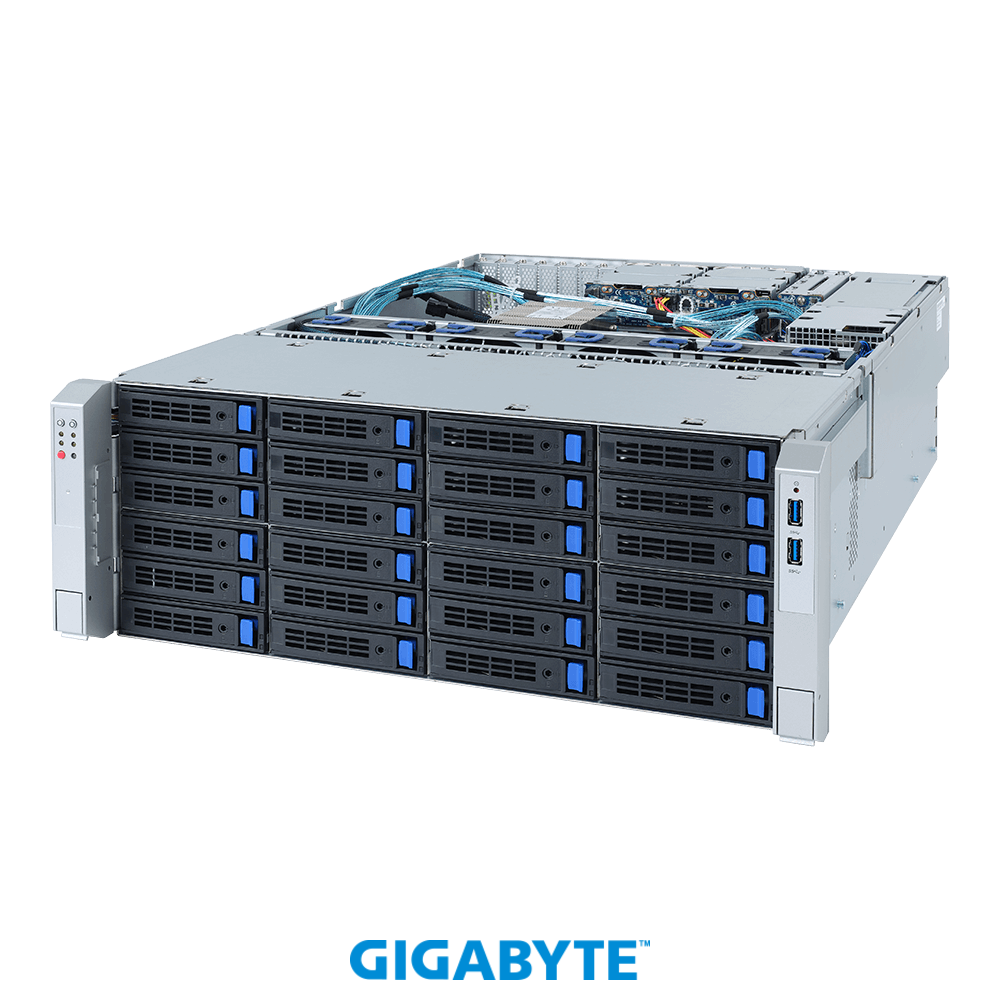

4U 42-Bay Single Pro...
  • AMD EPYC™ 7003 series processors
  • Single processor, LGA 4094
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 36 x 3.5" SATA/SAS hot-swap bays
  • 4 x 2.5" NVMe/SATA hybrid hot-swap bays
  • 2 x 2.5" SATA hot-swap bays
  • SAS expander with 12Gb/s transfer speed
  • 2 x M.2 slots with PCIe Gen3 x4 interface
  • 4 x LP PCIe Gen4 x16 and x8 slots
  • 2 x LP PCIe Gen3 x16 and x8 slots
  • Dual 1200W (240V) 80 PLUS Platinum redundant power supply

Interested in this product? Please contact one of our sales specialists!

Dimension 482.6 x 177 x 625
Motherboard MZ32-AR0

AMD EPYC™ 7003 series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 180W

Compatible with AMD EPYC™ 7002 series processors


1 x LGA 4094
Socket SP3


System on Chip


16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC


Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN


Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM


Front side:

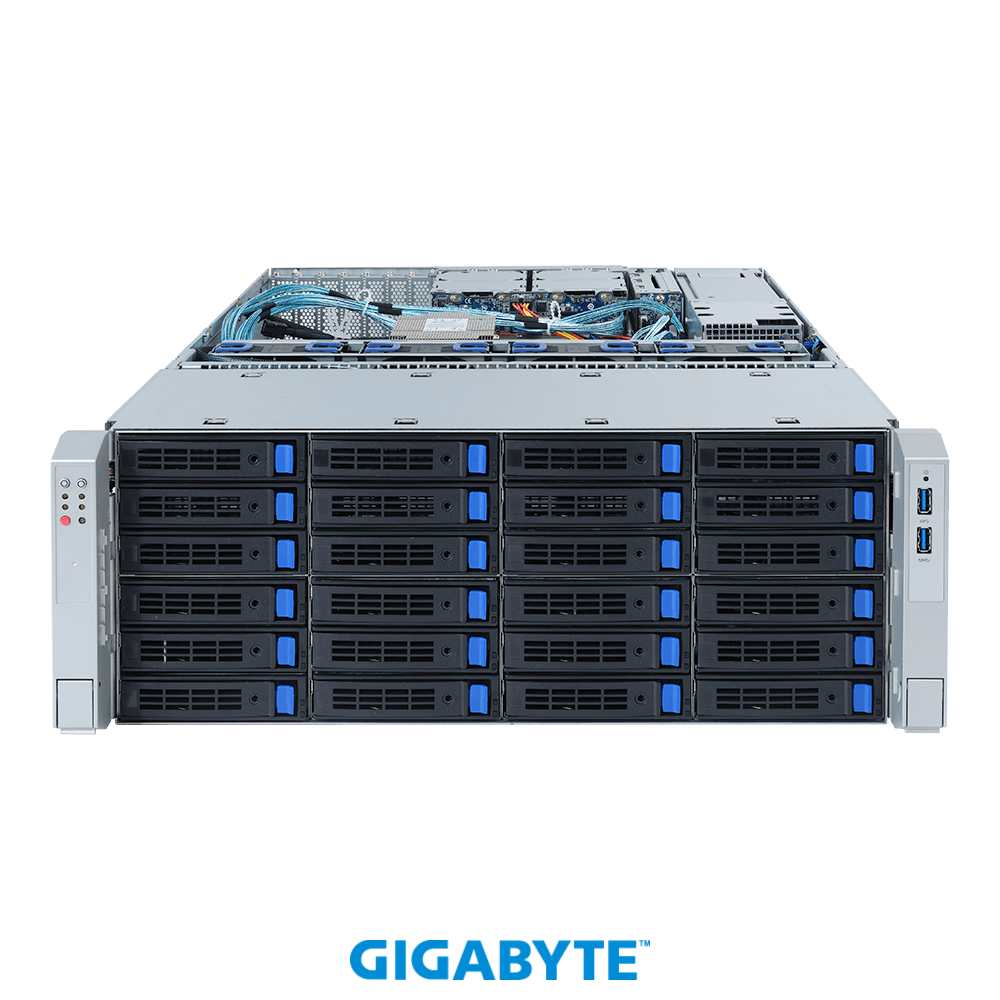

24 x 3.5"/2.5" SATA/SAS hot-swappable bays

Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
4 x 2.5" NVMe/SATA hybrid hot-swappable bays*
2 x 2.5" SATA hot-swappable bays*

*Rear side 2.5" bays only support Solid State Drives due to thermal consideration

1 x Broadcom SAS35x48 expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

Default configuration supports:
4 x NVMe/SATA/SAS and 2 x SATA/SAS devices available on rear side

SAS card is required to enable the drive bays

Suggested 12Gb/s SAS cards:

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards


Supported via SAS add-on Card


Depends on SAS add-on Card

Expansion Slots

Slot_6: 1 x PCIe x16 (Gen4 x16) low-profile slot
Slot_5: 1 x PCIe x16 (Gen4 x8) low-profile slot
Slot_4: 1 x PCIe x16 (Gen4 x16) low-profile slot
Slot_3: 1 x PCIe x16 (Gen4 x16) low-profile slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)*

*NOTE: If OCP 2.0 mezzanine slot is required, rear side 4-bay cage needs to be removed.

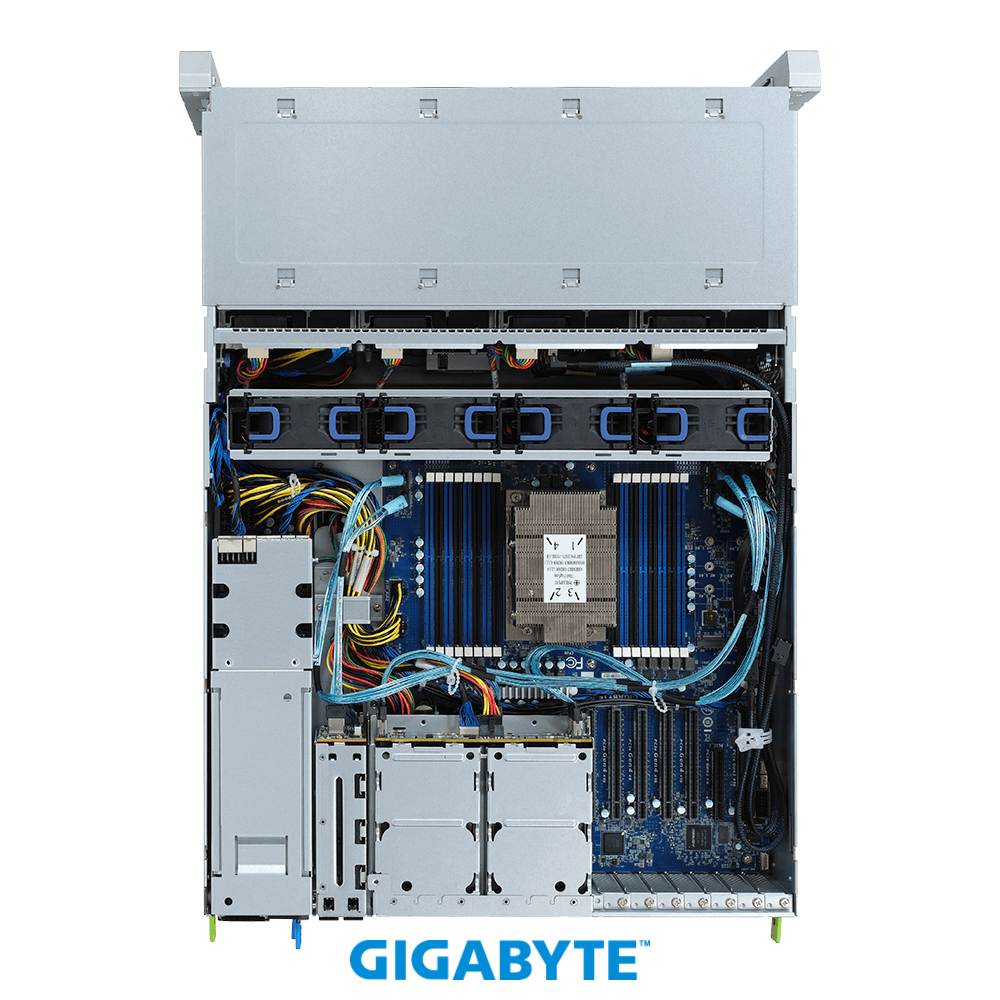

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
10 x SlimSAS connectors
2 x M.2 slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs

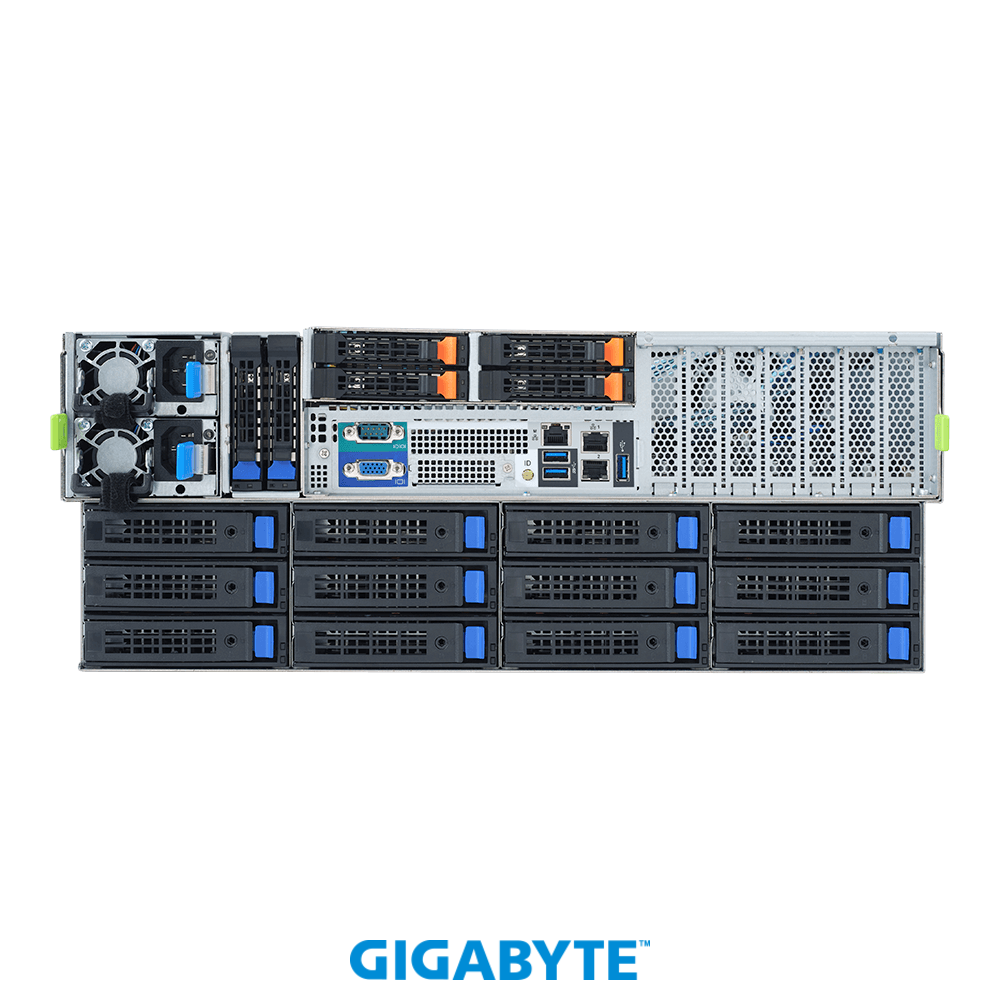

Rear I/O

3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s
Rear side - COBPU43: PCIe Gen3 x4 or SATA 6Gb/s


1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

2 x 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz

DC Output:
- Max 1000W/ 100-127V~
+ 12V/ 82A
+ 12Vsb/ 2A
- Max 1200W/ 200-240V~
+ 12V/ 98A
+ 12Vsb/ 2A

2 x 1300W redundant 80 PLUS Platinum power supplies (for -A01)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-63Hz

DC Input:
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A

System Management

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

JAVA Based Serial Over LAN
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later


Net Weight: 30.18kg
Gross Weight: 53.7 kg

System Fans

8 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

843 x 610 x 290 mm

Packaging Content

1 x S452-Z30
1 x CPU heatsink
1 x Rail kit

Part Numbers

- Barebone package: 6NS452Z30MR-00-A*
- Motherboard: 9MZ32AR0NR-00
- Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBPD4O0: 9CBPD4O0NR-00
- Backplane board - CBPD0C0: 9CBPD0C0NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Backplane board - COBPU43: 9COBPU43NR-00
- Fan module: 25ST2-883829-D0R
- 1200W Power supply: 25EP0-212003-D0S
- 1300W Power supply (-A01): 25EP0-213006-F3S
