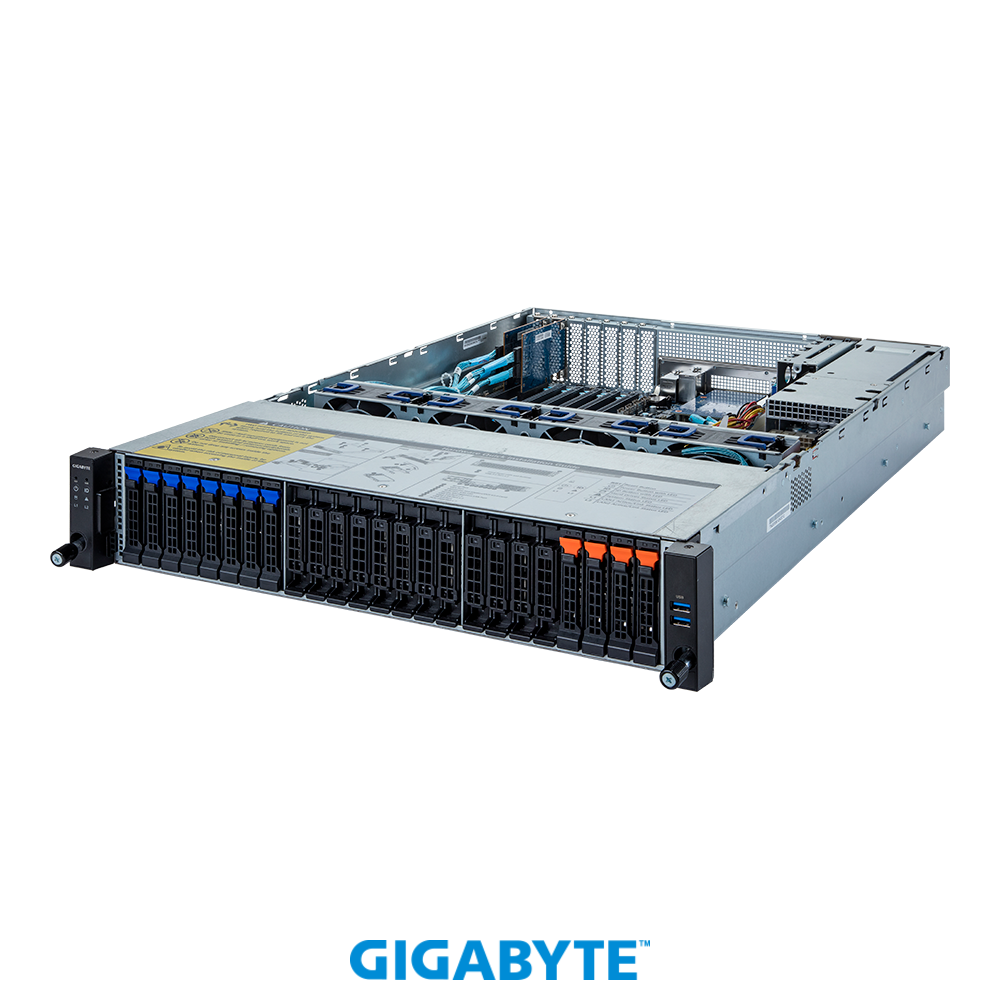

R272-P32

Ampere® Altra® Max or Altra® Processors
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W

1 x LGA 4926

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz

NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs

Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Front side:
4 x 2.5" NVMe hot-swappable bays
8 x 2.5" SATA hot-swappable bays, from CSTO180 (ASM1164) SATA HBA

Total 4 x PCIe Gen4 low-profile slots
Slot_7: Disabled
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x8) slot
Slot_2: 1 x PCIe x8 (Gen4 x8) slot, occupied by CNV3122
Slot_1: 1 x PCIe x16 (Gen4 x8) slot, occupied by CNV3122

1 x OCP 2.0 mezzanine slot, occupied by CSTO180 (ASM1164) SATA HBA

2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards

2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

3 x USB 3.0
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 800W 80 PLUS Platinum power supplies (-100)

AC Input:
- 100-240V~/ 10-4A, 50-60Hz

DC Input:
- 240Vdc/ 4.5A

DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A

1+1 800W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz

DC Input:
- 240Vdc/ 5A

DC Output:
- Max 800W
+ 12.2V/ 65A
+ 12Vsb/ 3A

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later

CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later

SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later

Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later

Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later

OracleLinux R8 U2
OracleLinux R8 U5

Debian 10.9 (Buster)
Debian 11.1

4 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

982 x 588 x 268 mm

1 x R272-P32
1 x CPU heatsink
1 x 2-Section Rail kit

- Barebone package: 6NR272P32MR-00-1*
- Motherboard: 9MP32AR1NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-353109-T1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for CPU: 25HA8-R27234-S5R
- OCP type SATA HBA Card - CSTO180: 9CSTO180NR-00
- PCIe to NVMe HBA - CNV3122: 9CNV3122NR-00
- Power supply (-100): 25EP0-208004-L0S
- Power supply (-1T0): 25EP0-20800C-G1S

- 3-Section Rail kit: 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
