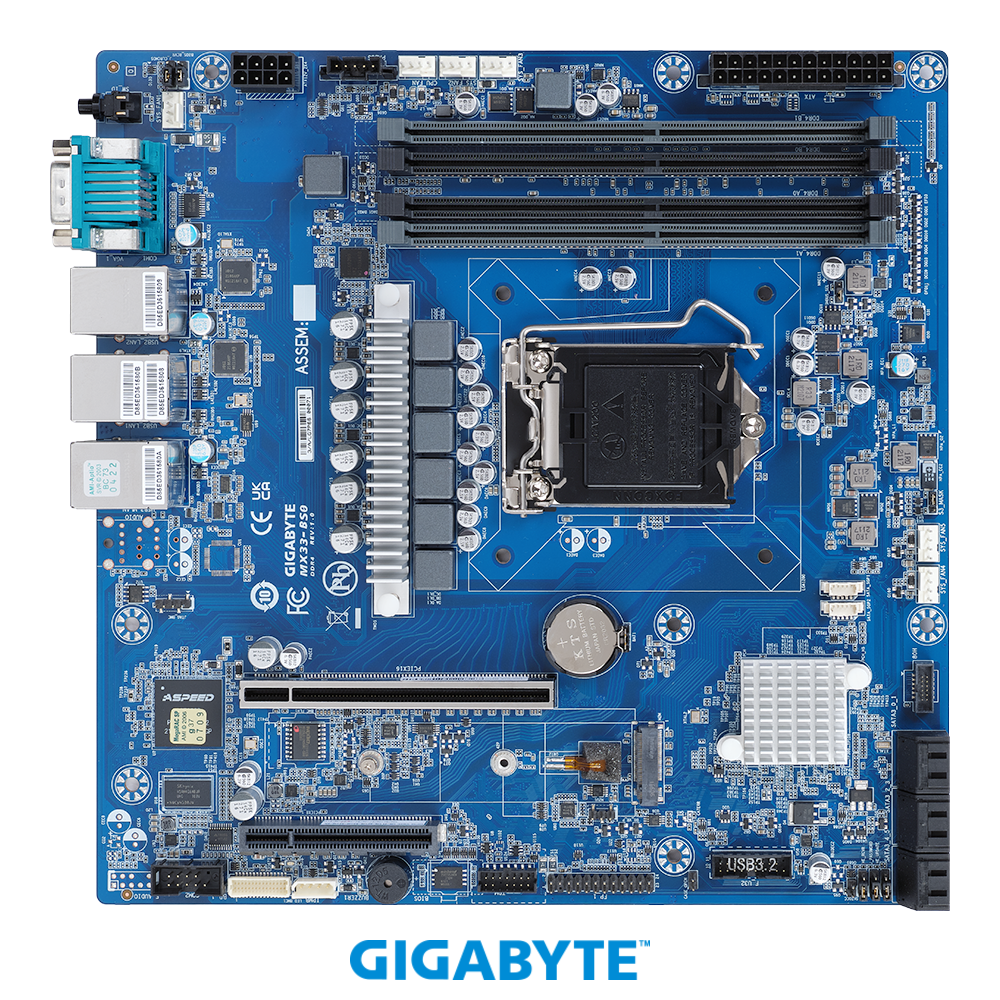

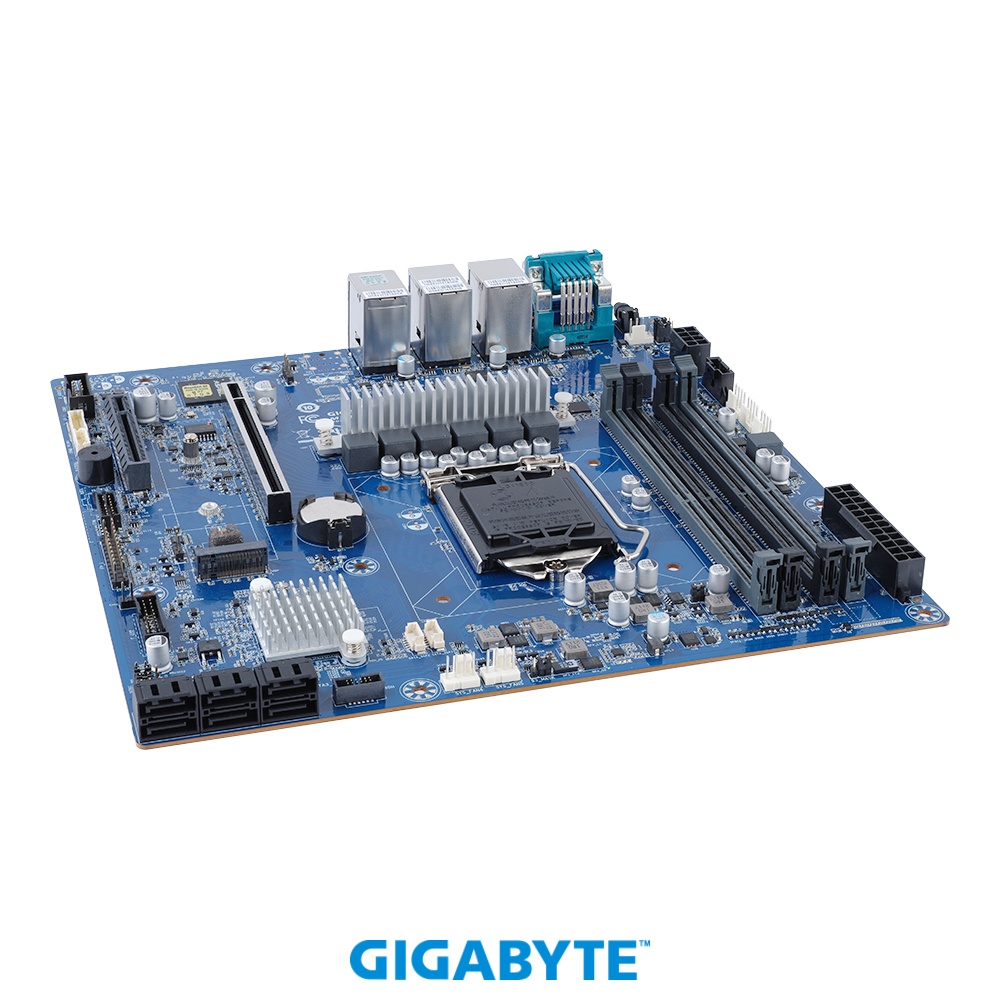

MX33-BS0

Intel® Xeon® E-2300 ...
  • Entry and small business server board
  • Micro-ATX form factor
  • Intel® Xeon® E-2300 Processor
  • Intel® C252 Chipset
  • 4 x UDIMM slots, DDR4 3200MHz
  • 2 x GbE LAN ports (Intel® I210-AT)
  • 1 x Dedicated management port
  • 6 x 7-pin SATA 6Gb/s ports
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 2 x USB 3.2 Gen2 ports supported
  • 2 x PCIe Gen4 x16 and x4 expansion slots

Interested in this product? Please contact one of our sales specialists!

Form Factor

Micro-ATX
244W x 244D mm
CPU

Intel® Xeon® E-2300 Processor
10th Gen Intel® Pentium® Processor
CPU TDP up to 95W
Socket

1 x LGA 1200
Socket H5
Chipset

Intel® C252 Chipset
Memory

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz
LAN

2 x GbE LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio

Optional
SATA

6 x SATA 6Gb/s ports
RAID

Intel® SATA RAID 0/1/10/5
Expansion Slots

1 x PCIe x16 (Gen4 x16 bus) slot, from CPU*
1 x PCIe x8 (Gen4 x4 bus) slot, from CPU**

* NOTE: Gen3 x16 supported if installed Intel® Pentium® Processor
** NOTE: Function not available if installed Intel® Pentium® Processor

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2242/2280 cards
Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x COM2 header
1 x back panel connector
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case Open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

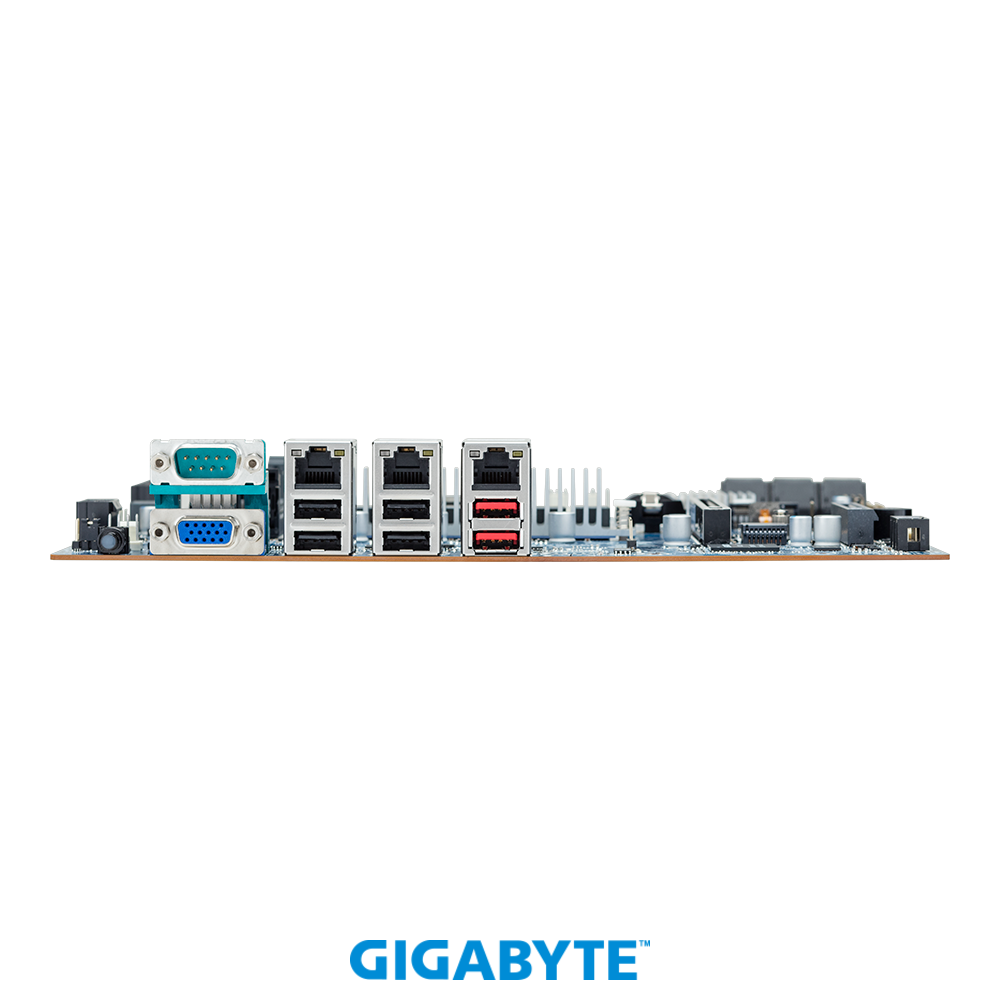

Rear I/O

1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.2 Gen2
4 x USB 2.0
1 x ID switch
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility

Windows Server 2019 (x64)
Windows Server 2016 (x64)

Red Hat Enterprise Linux 7.3 (x64)
Red Hat Enterprise Linux 6.9 (x64)

SUSE Linux Enterprise Server 12.2 (x64)
SUSE Linux Enterprise Server 11.2 (x64)

Ubuntu 18.04.2 LTS (x64)
Ubuntu 16.04.6 LTS (x64)

VMware 6.5
Board Management

Aspeed® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

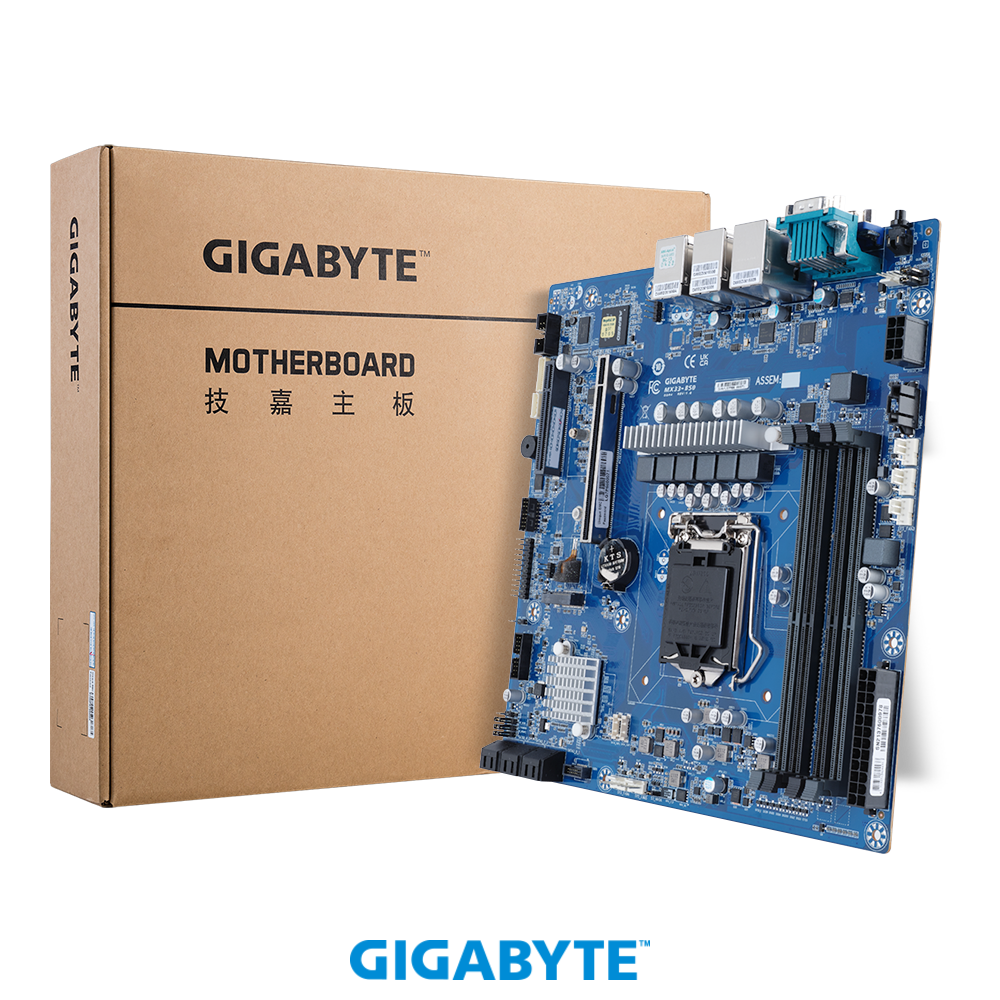

Retail Packaging Content

1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content

10 x MX33-BS0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers

Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*
Part Numbers

- I/O shield: 12AIO-MX23C0-10R
- SATA cable: 12CF1-2SAT1B-01R
