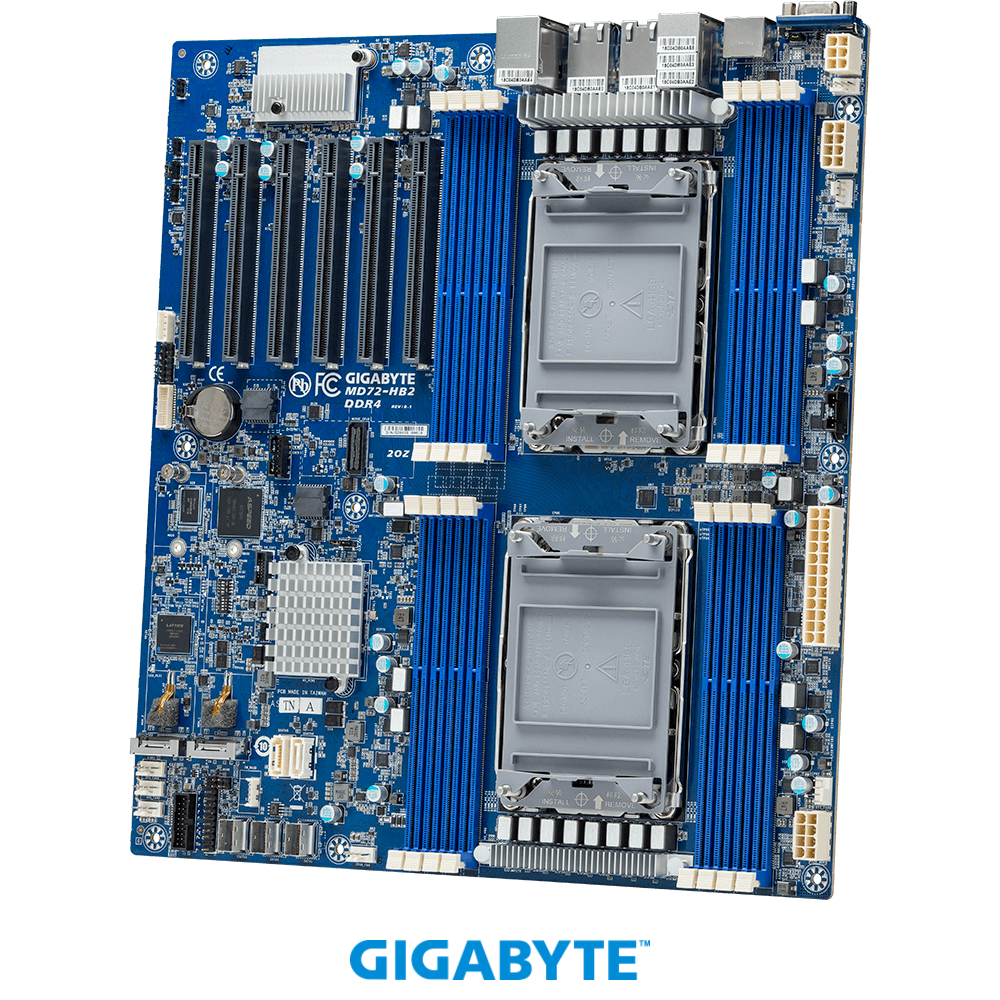

MD72-HB2

Intel® C621A Chipset

  • 3rd Gen. Intel® Xeon® Scalable Processors
  • Dual processor, 10nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Intel® C621A Express Chipset
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
  • 2 x 1Gb/s LAN ports (Intel® I210-AT)
  • 1 x Dedicated management port
  • 2 x 7-pin SATA 6Gb/s ports
  • 3 x SlimSAS with 12 x SATA 6Gb/s ports
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 6 x PCIe Gen4 x16 expansion slots

Interested in this product? Please contact one of our sales specialists!

Form Factor

E-ATX
305W x 330D (mm)

CPU

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W

Socket

2 x LGA 4189
Socket P+

Chipset

Intel® C621A Chipset

Memory

16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

LAN

2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

SATA

2 x 7-pin SATA 6Gb/s ports
3 x SlimSAS with 12 x SATA 6Gb/s ports

RAID

Intel® SATA RAID 0/1/10/5

Expansion Slots

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2280/22110 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connector
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
1 x HDD backplane board header
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header

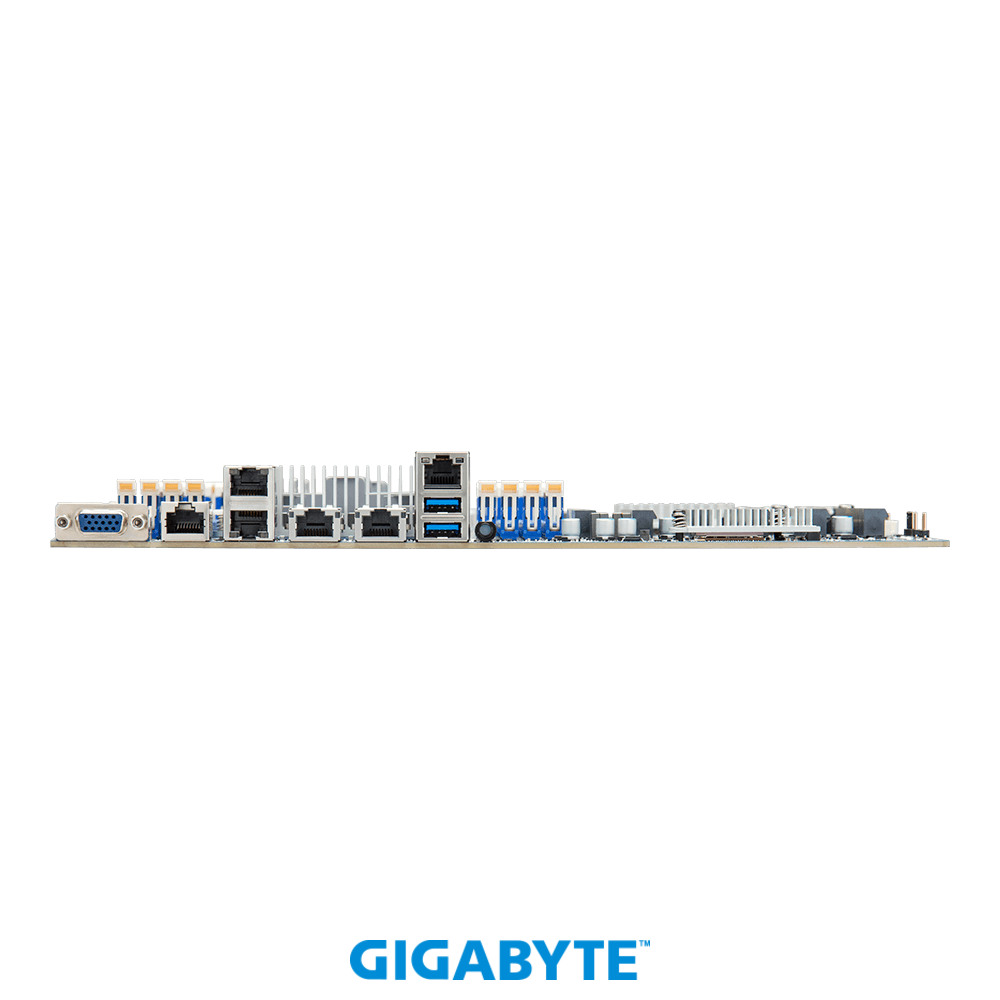

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
4 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Board Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MD72-HB2
1 x I/O shield
1 x Quick start guide
1 x SlimSAS for 4 x SATAIII 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MD72-HB2
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MD72HB2MR-00
Bulk: 9MD72HB2NR-00

Part Numbers

- Fan-sink: 25ST4-353203-M1R (optional)
- I/O shield: 12AIO-MD72HB-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
