3rd Gen Intel® Xeon®...
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Dual processor, LGA 4189
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • Intel® C621A Chipset
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 4 x 3.5" SATA/SAS hot-swappable bays
  • 2 x 7-pin SATA DOM
  • 2 x FHHL PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1300W (240V) 80 PLUS Platinum redundant power supplies

Interested in this product? Please contact one of our sales specialists!

Dimension 438 x 43.5 x 780
Motherboard MR92-FS1

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable


2 x LGA 4189
Socket P+


Intel® C621A Chipset


32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 3200/2933/2666 MHz


Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN


Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM


Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support


Depends on SAS add-on card


Intel® SATA RAID 0/1/10/5

Expansion Slots

Riser Card CRS101E:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0

Riser Card CRS101G:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Internal I/O

2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch

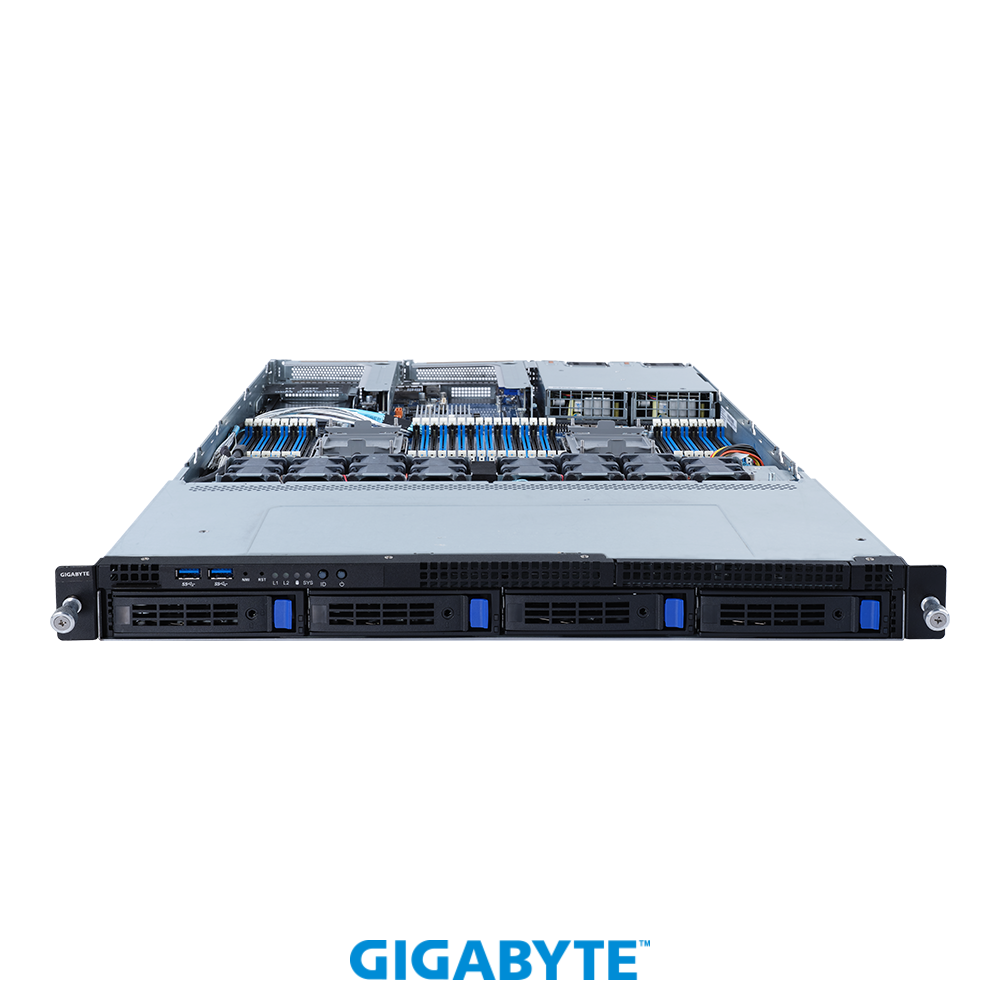

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

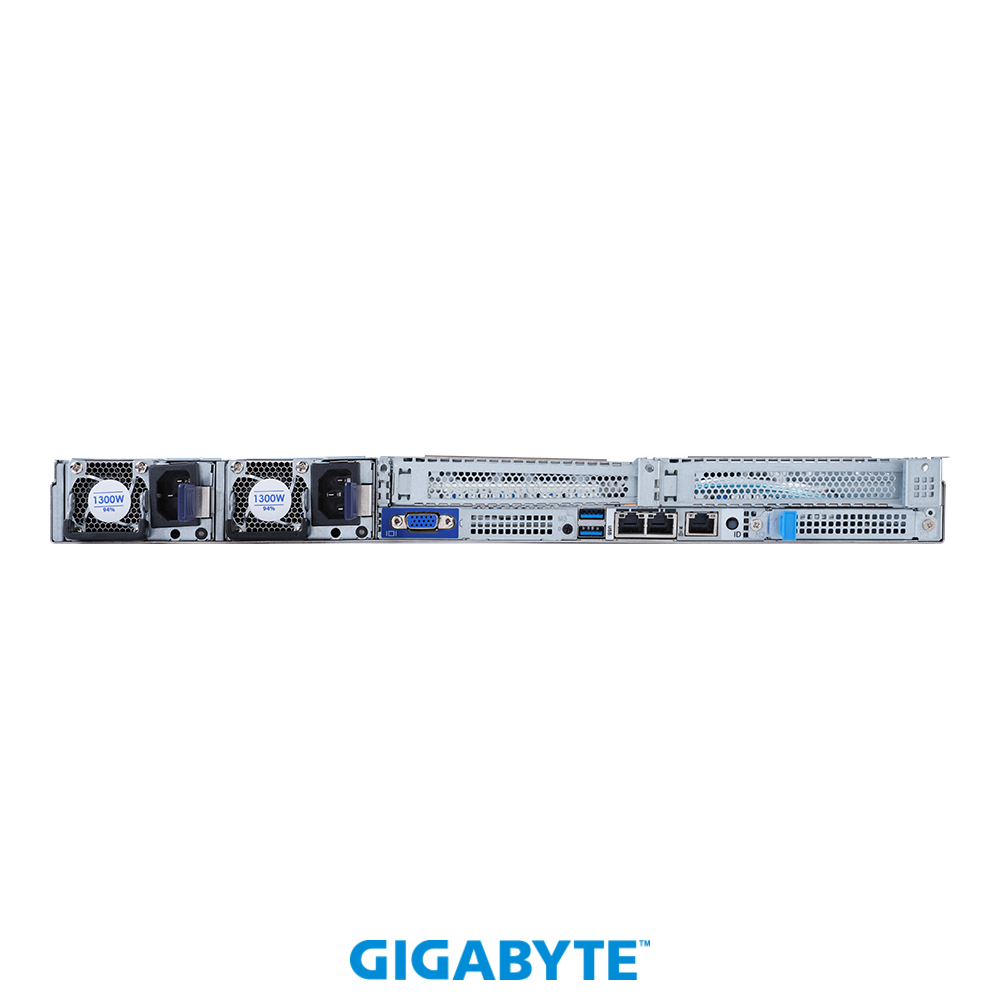

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s


1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 1300W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later

VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

8 x 40x40x56mm (29,700rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Content

1 x R182-340
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR182340MR-00-1*
- Motherboard: 9MR92FS1NR-00
- 2-Section Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-453204-M1R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1044: 9CBP1044NR-00
- Riser card - CRS101E: 9CRS101ENR-00
- Riser card - CRS101G: 9CRS101GNR-00
- Fan module: 25ST2-405622-A0R
- Power supply: 25EP0-213002-F3S

Optional Parts

- 3-Section Rail kit: 25HB2-A56120-K0R
- Cable Management Arm: 25HB1-R18100-K0R
