R162-Z11

Rack Server - AMD EP...

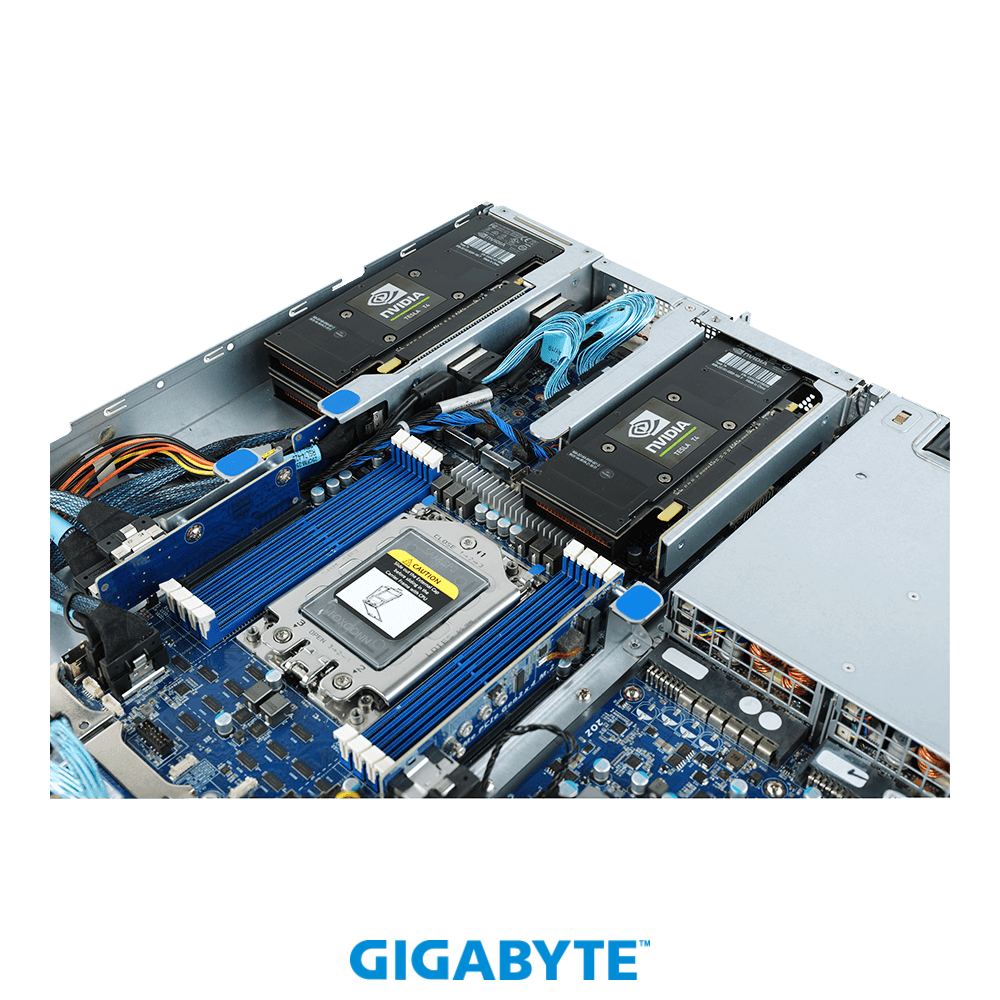

  • Compatible with 3 x NVIDIA Tesla PCIe GPU cards
  • AMD EPYC™ 7003 Series processors
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 4 x 2.5" Gen3 NVMe hot-swappable bays
  • 6 x 2.5" SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x LP PCIe Gen4 x16 slot
  • 2 x LP PCIe Gen3 x16 slots
  • 1 x OCP 2.0 Gen3 x16 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • 1+1 1200W (240V) 80 PLUS Platinum redundant power supplies

Interested in this product? Please contact one of our sales specialists!

Dimension 438 x 43.5 x 730
Motherboard MZ12-HD2 Rev. 3.0
CPU

AMD EPYC™ 7003 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C
NVIDIA Tesla GPU not supported if using 280W CPU

Compatible with AMD EPYC™ 7002 Series processors
Chipset

System on Chip
Memory

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz
LAN

Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
NCSI function supported

1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage

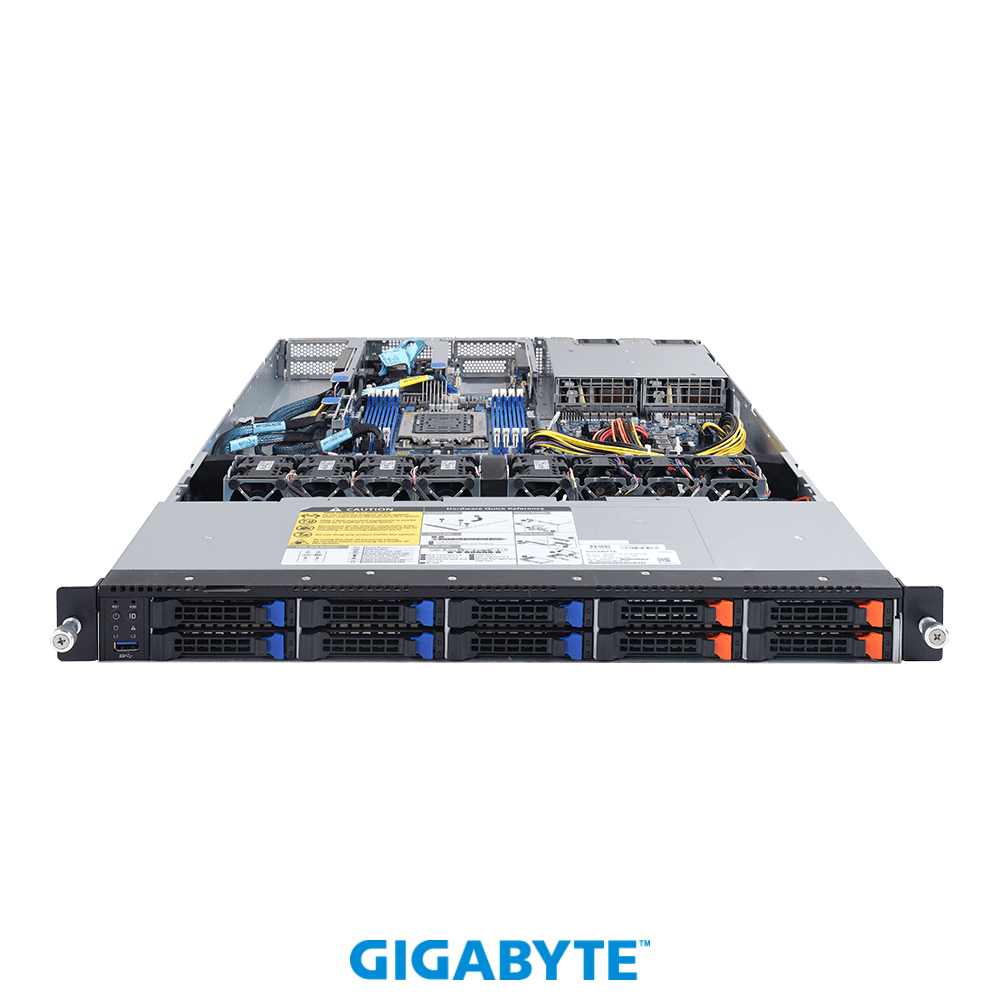

Front side:
4 x 2.5" Gen3 NVMe hot-swappable bays
6 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

*Backplane JP_SEL switch set from "00010" to "00000" (all OFF) if SAS RAID crad is installed
SAS

Depends on SAS add-on card
Expansion Slots

Riser Card CRSH01D:
- 1 x PCIe x16 (Gen4 x16) low-profile slot

Riser Card CRS1060:
- 2 x PCIe x16 (Gen3 x16) low-profile slots

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
NCSI function supported

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device

NOTE: Support is not provided for mixed GPU populations
Internal I/O

1 x M.2 slot
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

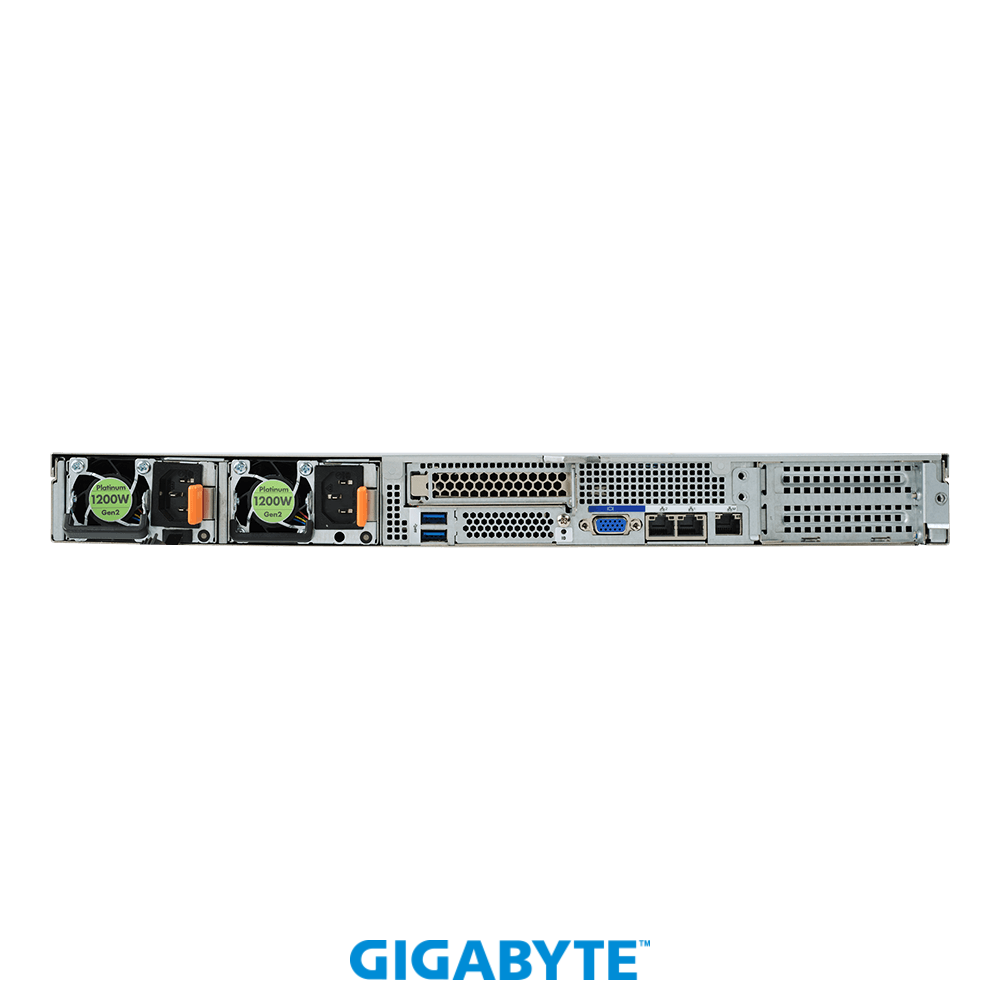

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply

1+1 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz

DC Output:
- Max 1000W/ 100-127V~
+ 12V/ 82A
+ 12Vsb/ 2A
- Max 1200W/ 200-240V~
+ 12V/ 98A
+ 12Vsb/ 2A
System Management

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
Weight

Net Weight: 11.95 kg
Gross Weight: 20.5 kg
System Fans

5 x 40x40x56mm (23,000rpm)
3 x 40x40x28mm (18,000rpm)
Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions

985 x 588 x 250 mm
Packaging Content

1 x R162-Z11
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR162Z11MR-00-A*
- Motherboard: 9MZ12HD2NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Backplane board - CBP10A1: 9CBP10A1NR-00
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRS1060: 9CRS1060NR-00
- Fan module: 25ST2-44562G-D0R/25ST2-442824-D0R
- Power supply: 25EP0-212008-D0S
Optional Parts

- Barebone package: 6NR162Z11MR-00-A*
- Motherboard: 9MZ12HD2NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Backplane board - CBP10A1: 9CBP10A1NR-00
- Riser card - CRSH01D: 9CRSH01DNR-00
- Riser card - CRS1060: 9CRS1060NR-00
- Fan module: 25ST2-44562G-D0R/25ST2-442824-D0R
- Power supply: 25EP0-212008-D0S
