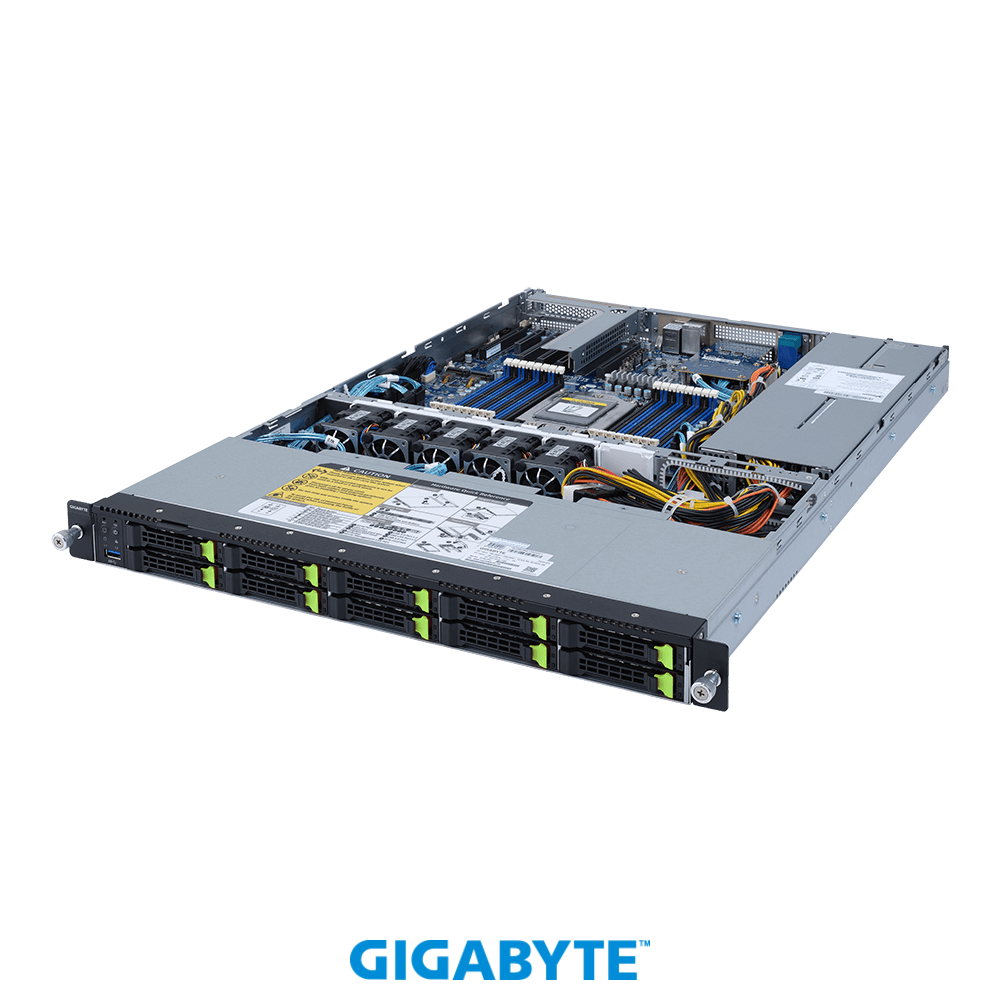

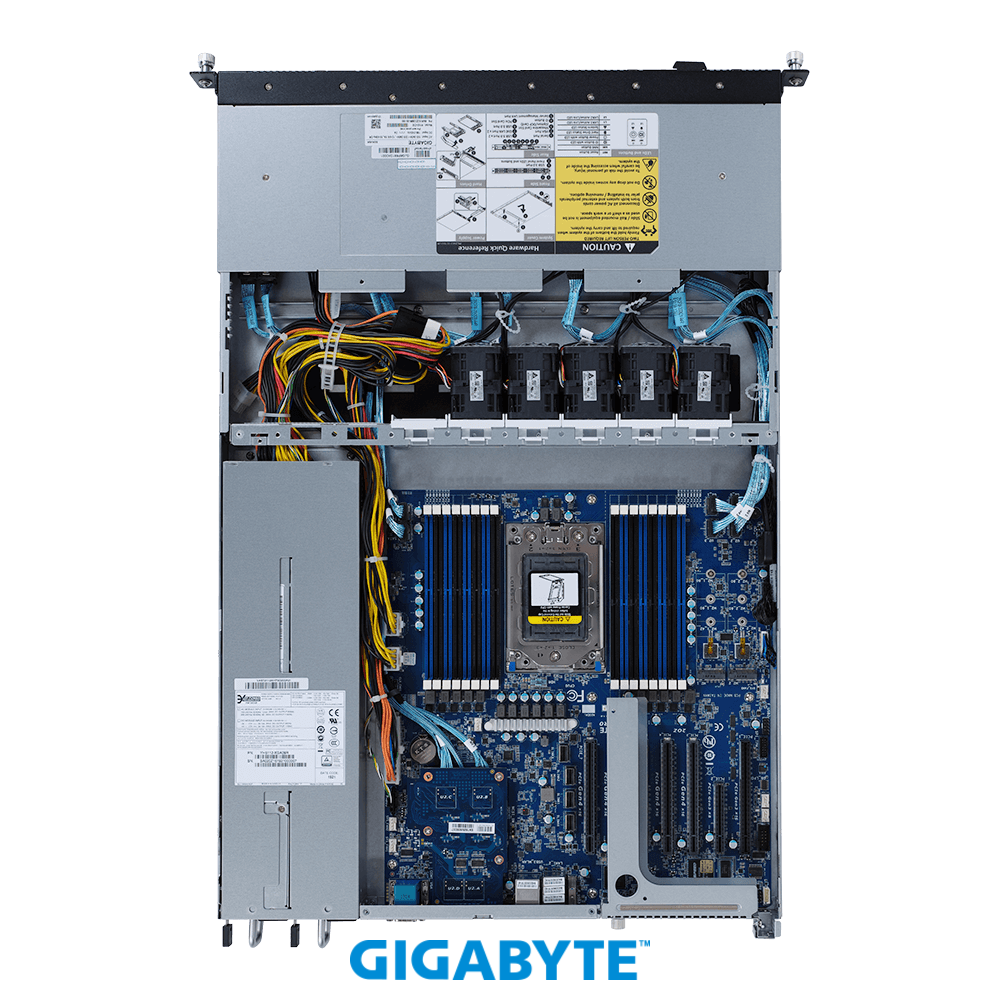

R152-Z33

AMD EPYC™ 7003 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C

Compatible with AMD EPYC™ 7002 Series processors

1 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

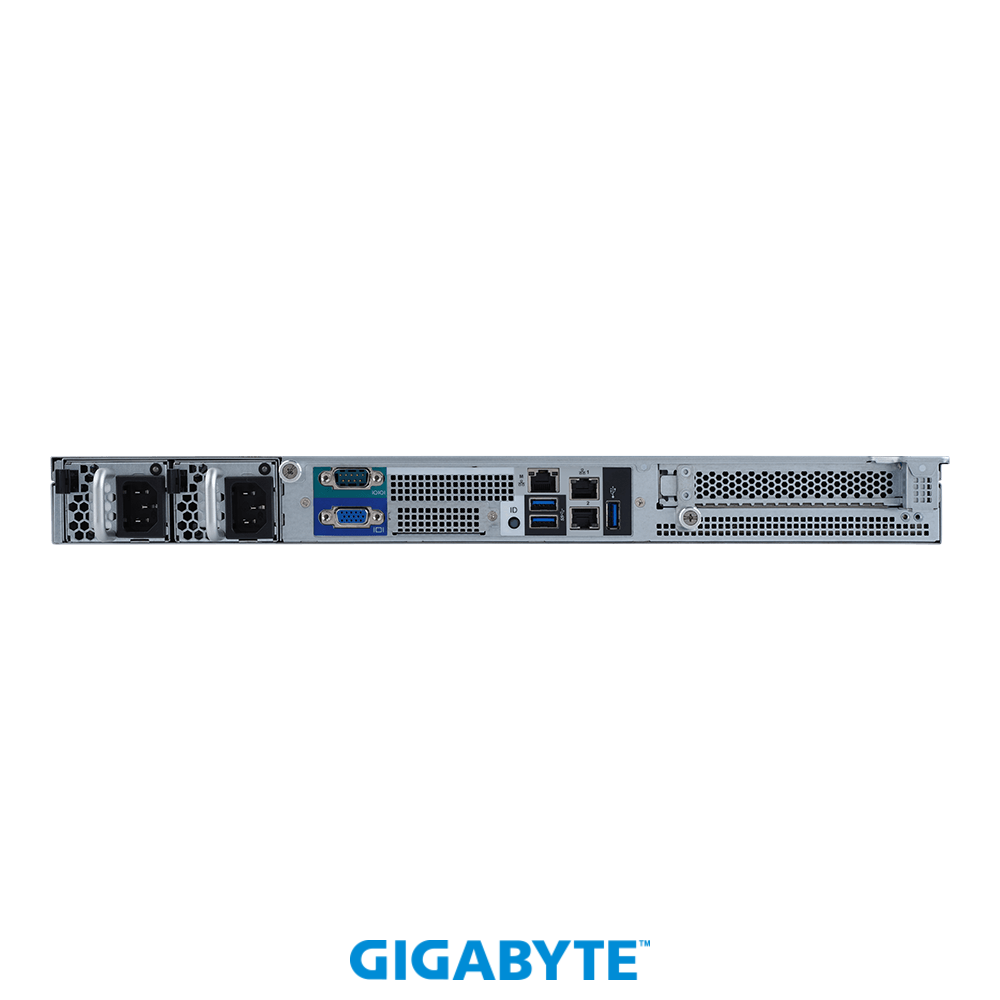

Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

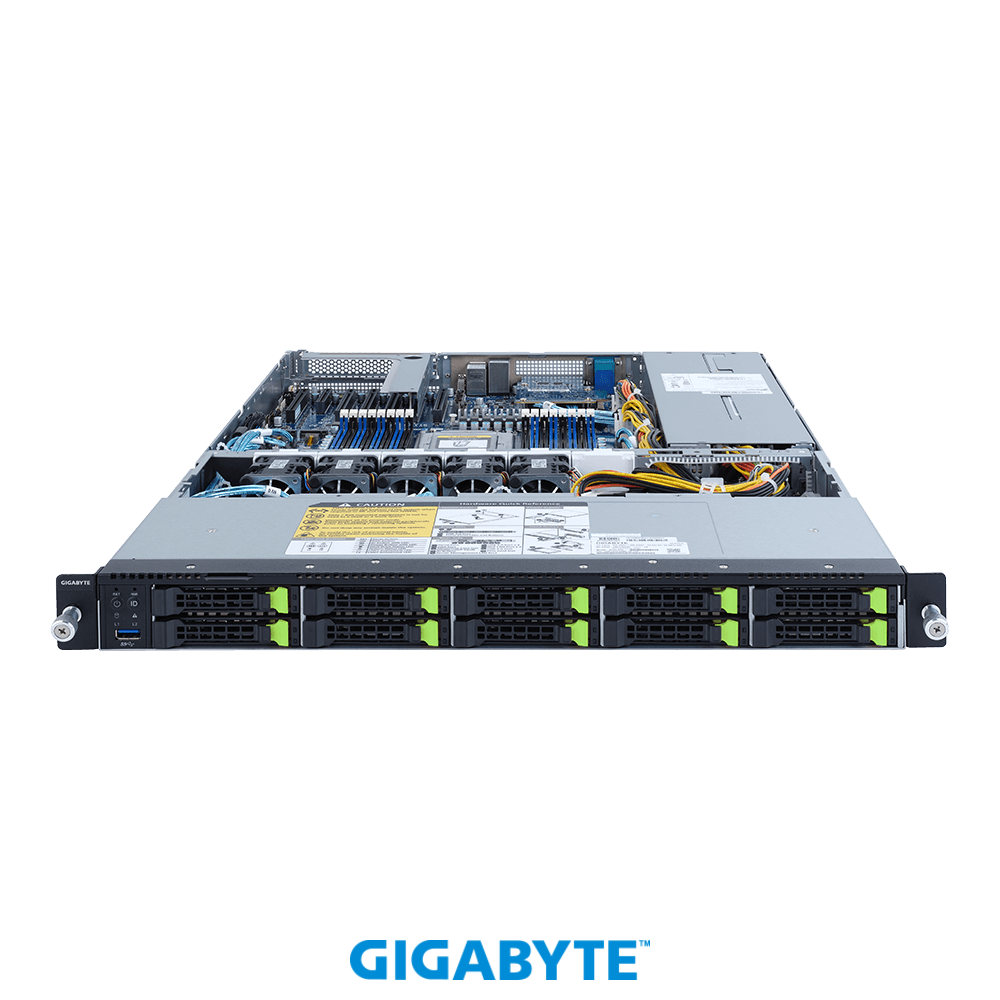

Front side:
10 x 2.5" Gen4 NVMe hot-swappable bays

Riser Card CRS101D:
- 1 x PCIe x16 (Gen4 x16) FHHL slot

1 x OCP 2.0 mezzanine slot with PCIe Gen4 x16 bandwidth (Type1, P1, P2, P3, P4)
- Occupied by CNVP143, 4 x NVMe HBA

2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280 cards

2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen4 x4

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 1100W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-6A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 190-310Vdc/ 7A

DC Output:
- Max 850W/ 100-240Vac~
+ 12V/ 70A
+ 5Vsb/ 3A
- Max 1100W/ 200-240Vac~
+ 12V/ 90.5A
+ 5Vsb/ 3A

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

5 x 40x40x56mm (23,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

985 x 588 x 250 mm

1 x R152-Z33
1 x CPU heatsink
1 x 2-Section Rail kit

- Barebone package: 6NR152Z33MR-00-A*
- Motherboard: 9MZ32AR1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320J-A0R
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Riser card - CRS101D: 9CRS101DNR-00
- Fan module: 25ST2-44562G-D0R
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- OCP NVMe Card - CNVP143: 9CNVP143NR-00
- Power supply: 25EP0-201102-F3S

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
- RMA packaging: 6NR152Z33SR-RMA-A100
