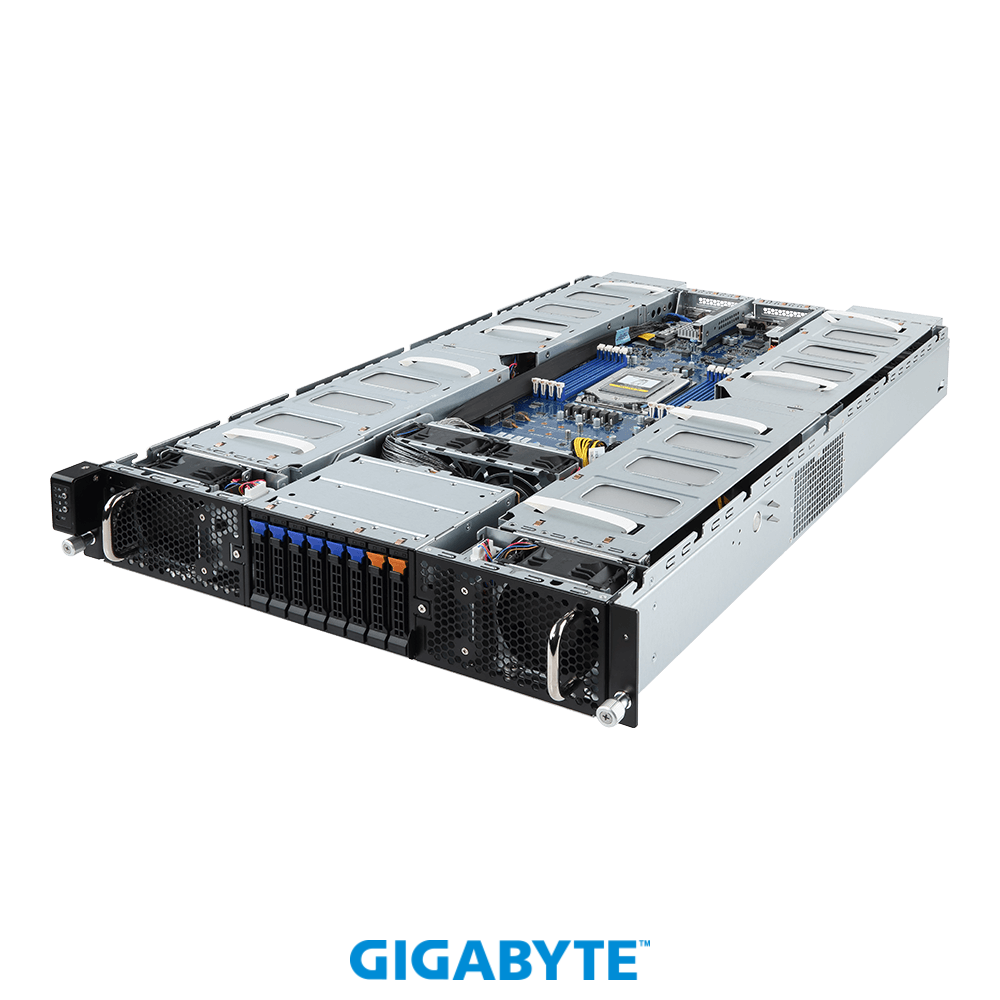

G292-Z20

HPC/AI Server - AMD ...
  • Supports up to 8 x Dual slot GPU cards
  • AMD EPYC™ 7003 Series processors
  • AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • 2 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-4 Lx controller)
  • 1 x Dedicated management port
  • 2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
  • 6 x 2.5" SATA/SAS hot-swappable bays
  • 2 x M.2 slots with PCIe Gen3 x4/x2 interface
  • 8 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x LP PCIe Gen4 x16 slots for add-on cards
  • Aspeed® AST2500 remote management controller
  • Dual 2200W (240V) 80 PLUS Platinum redundant power supply

Interested in this product? Please contact one of our sales specialists!

Dimension 448 x 87.5 x 800

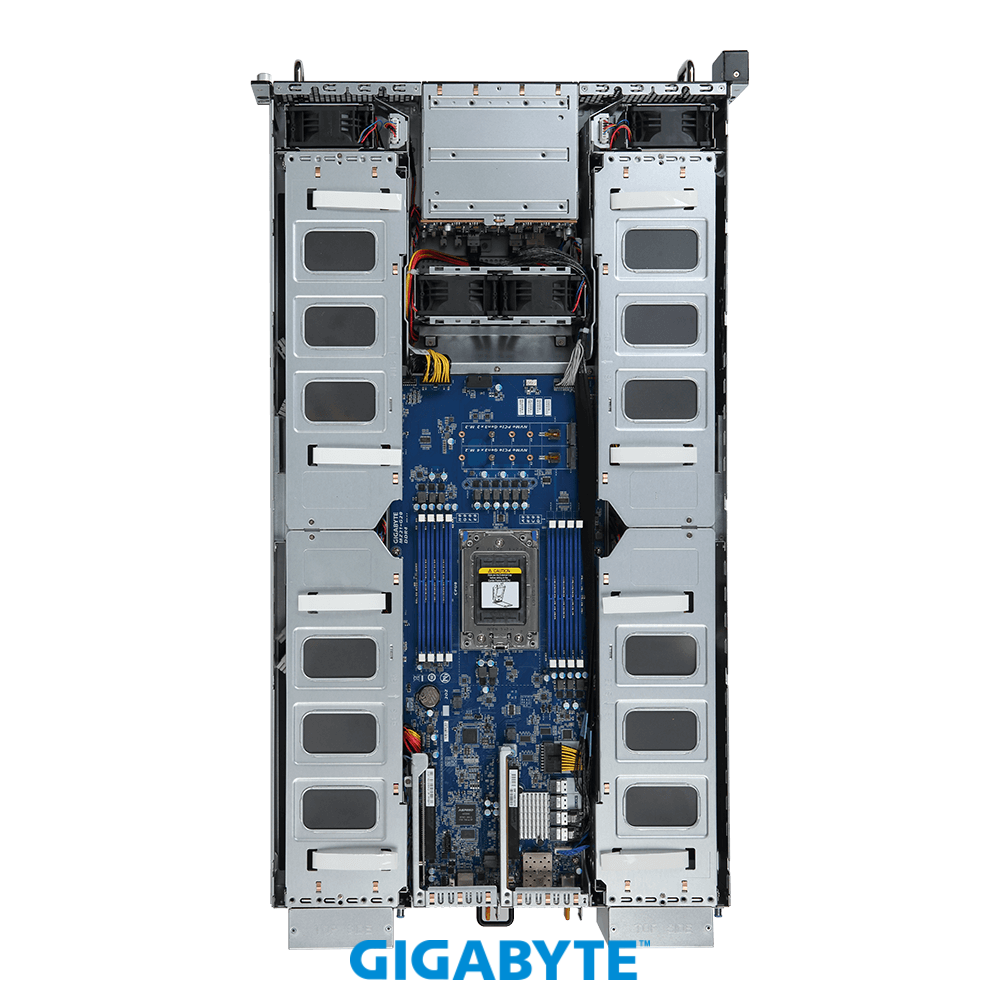

Motherboard MZ22-G20 Rev. 3.0
CPU

AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W

Compatible with AMD EPYC™ 7002 Series processors
Socket

1 x LGA 4094
Socket SP3
Chipset

System on Chip
Memory

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz
LAN

Rear side:
2 x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx controller)
Support NCSI function
Pin-to-Pin compatible with Mellanox® 25Gb/s LAN controller (optional)

1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage

Front side:
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
6 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SAS

Depends on SAS add-on card
RAID

Depends on SAS add-on card
Expansion Slots

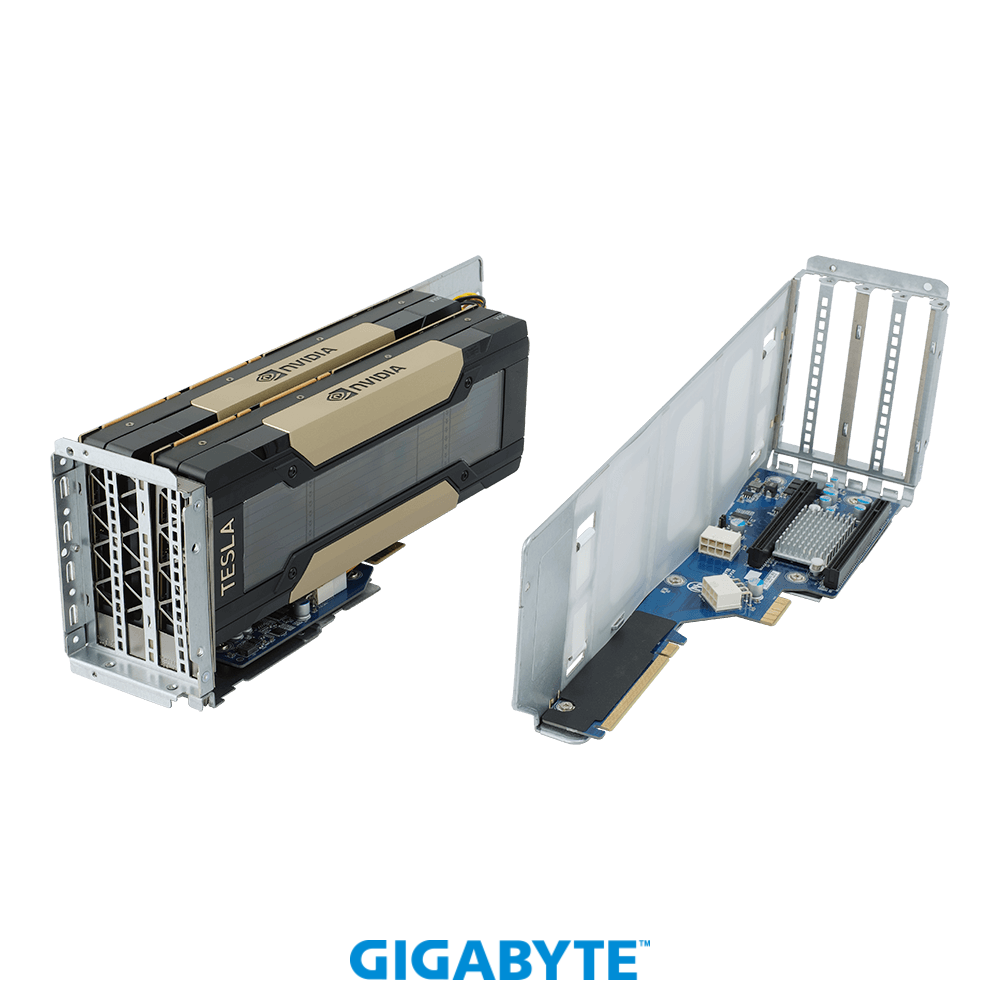

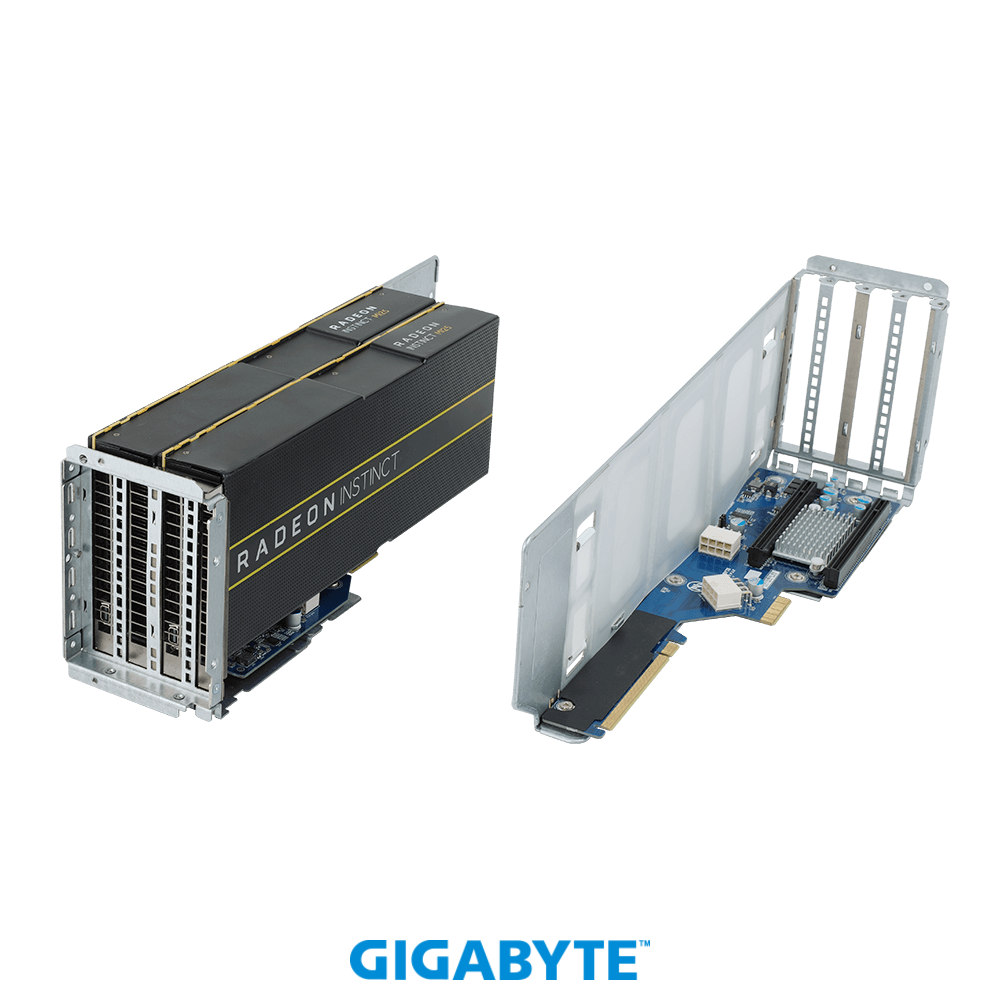

Riser Card CRSG421 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs (Microchip solution)

Riser Card CRSG422 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs (Microchip solution)

Riser Card CRSG01A x 2:
- 2 x PCIe x16 (Gen4 x16) low-profile slots

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports 2242/2260/2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
Internal I/O

2 x M.2 slots
1 x TPM header
4 x SlimSAS connectors
1 x Buzzer

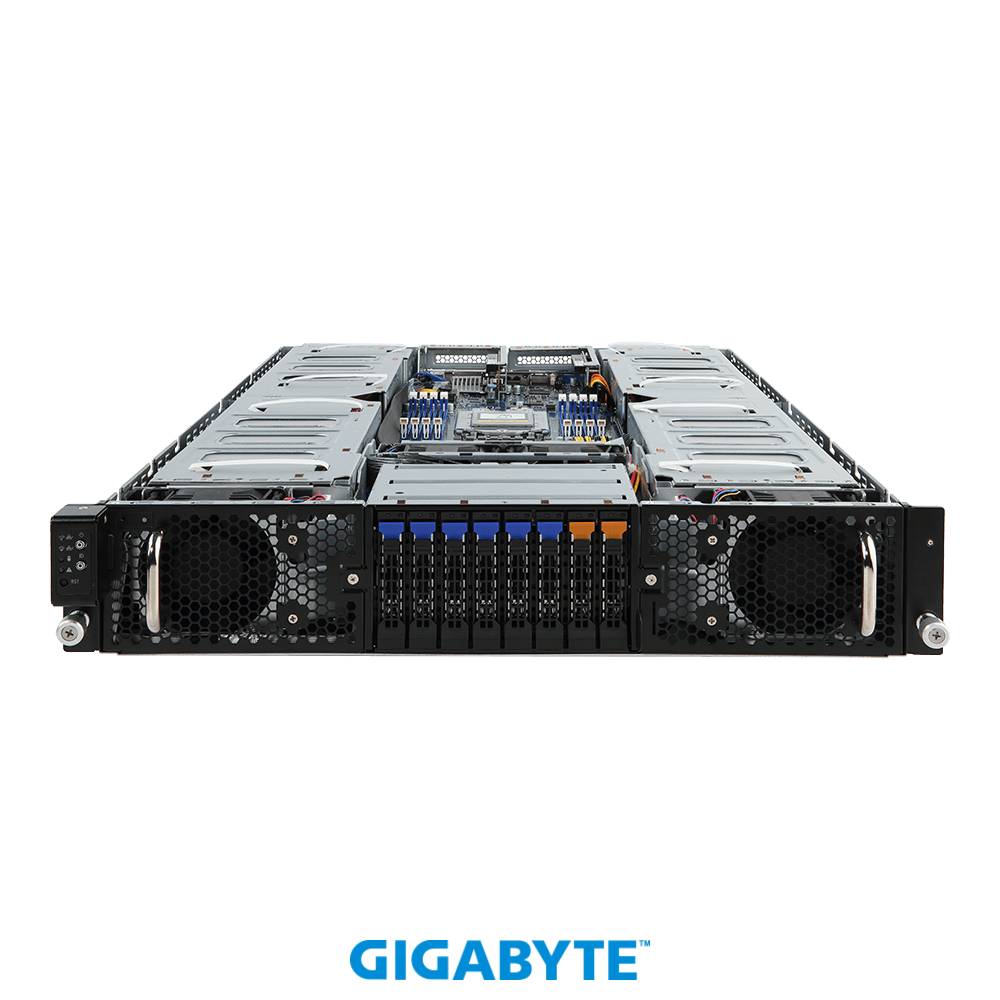

Front I/O

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

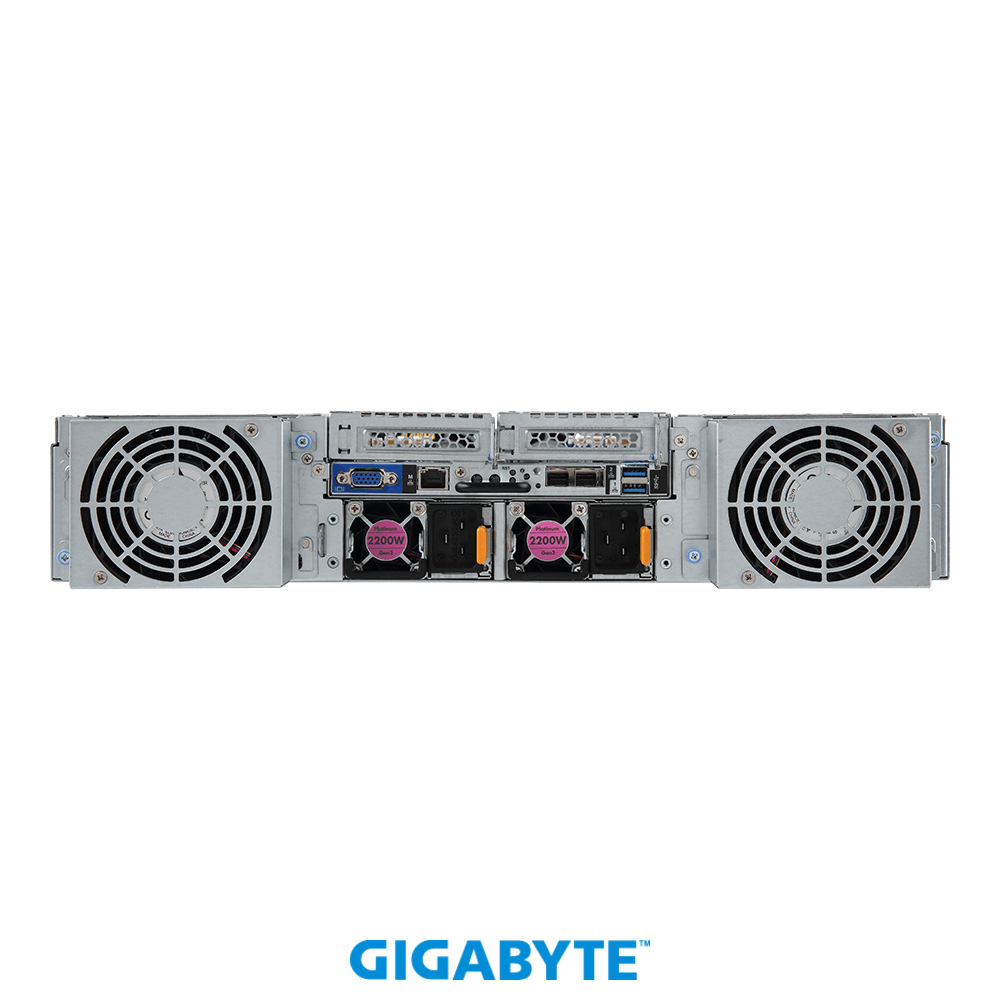

Backplane I/O

2 x USB 3.0
1 x VGA
2 x SFP+
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply

Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord
System Management

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
Weight

Net Weight: 30 kg
Gross Weight: 36 kg
System Fans

8 x 80x80x38mm (16,300rpm)
Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Packaging Dimensions

1133 x 724 x 261 mm
Packaging Content

1 x G292-Z20
1 x CPU heatsink
1 x L-shape Rail kit
Part Numbers

- Barebone package: 6NG292Z20MR-00-A*
- Motherboard: 9MZ22G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320I-A0R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card - CRSG421: 9CRSG421NR-00
- Riser card - CRSG422: 9CRSG422NR-00
- Riser card for GPUs - CRSG421: 9CRSG421NR-00
- Riser card for GPUs - CRSG422: 9CRSG422NR-00
- Power supply: 25EP0-222006-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- RMA packaging: 6NG292Z20SR-RMA-A100
