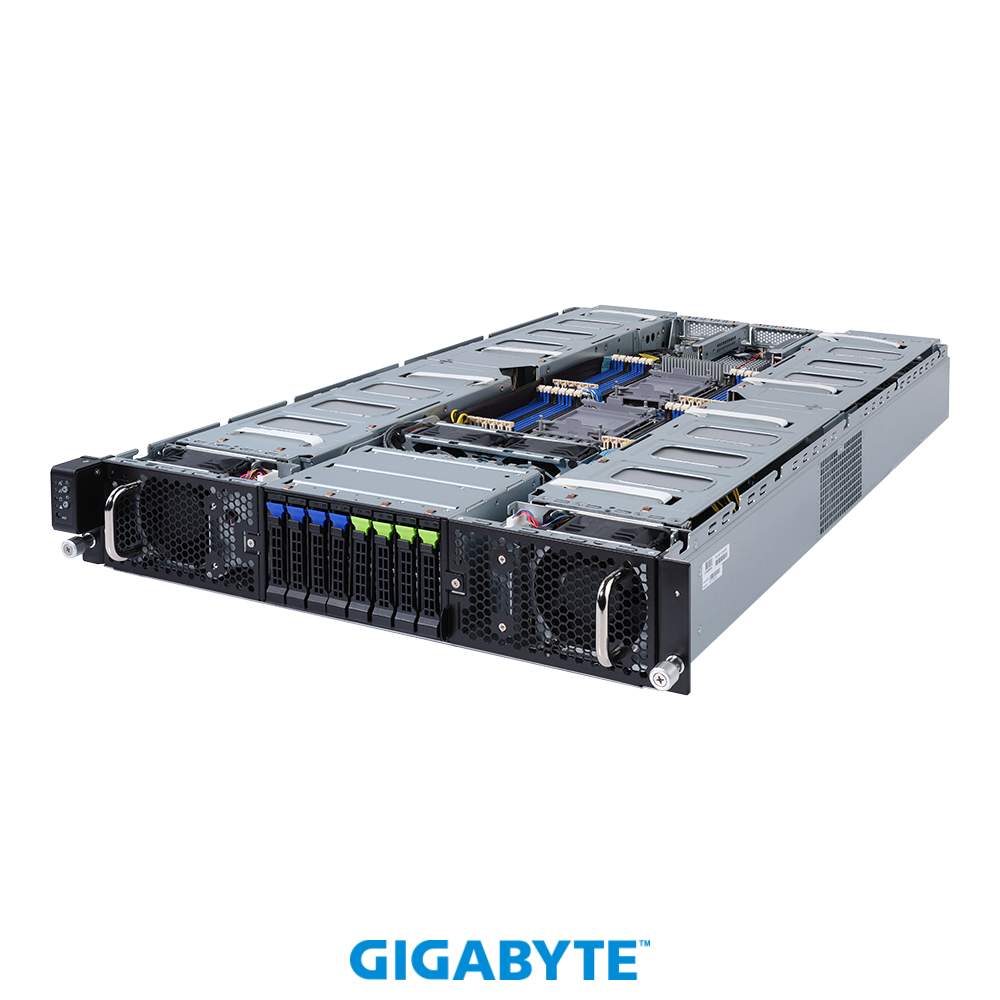

G292-280

HPC Server - 2U 8 x ...
  • Supports up to 8 x Dual slot Gen4 GPU cards
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Dual processor, 10nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 24 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • Intel® C621A Chipset
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
  • 1 x Dedicated management port
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
  • 8 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x LP PCIe Gen4 x16 slots for add-on cards
  • Dual 3200W 80 PLUS Platinum hot-swap power supply

Interested in this product? Please contact one of our sales specialists!

Dimension 448 x 87.5 x 800

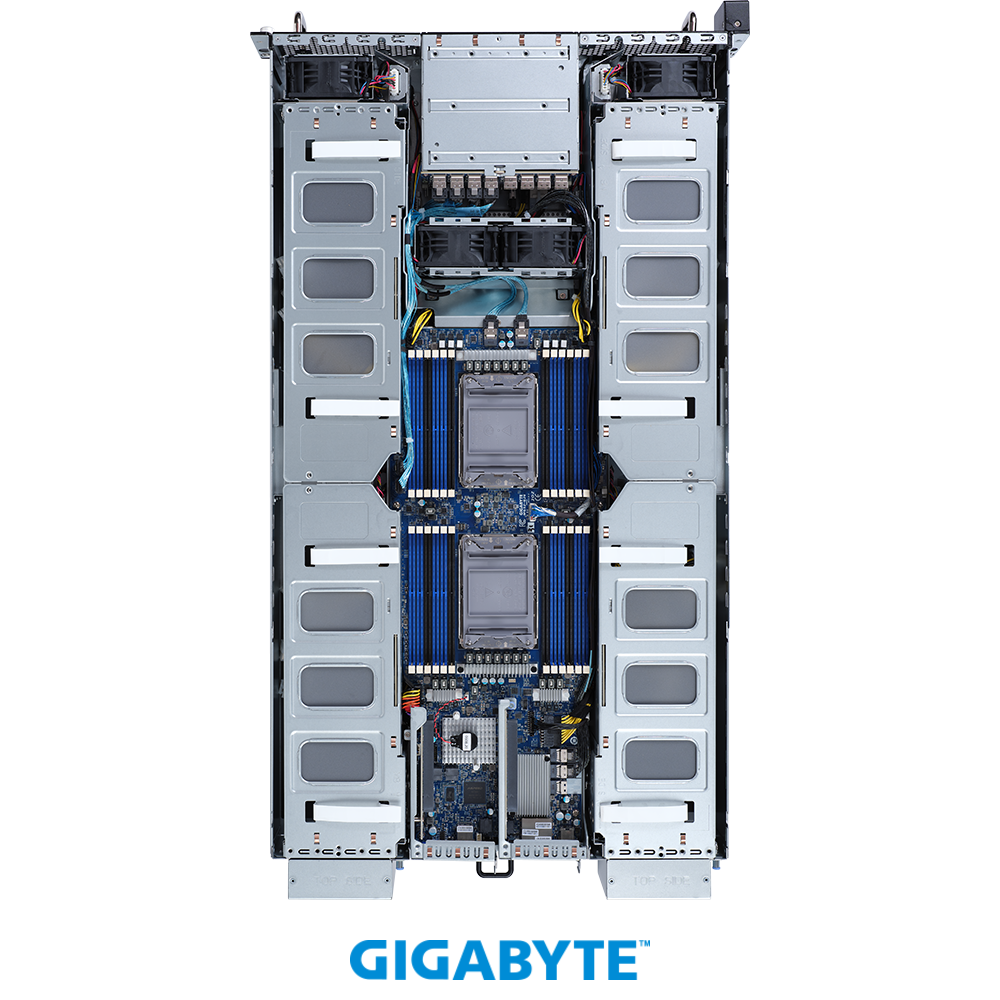

Motherboard MG52-G20
CPU

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 250W

Supports 270W CPU at ambient 25°C

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A Chipset
Memory

24 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN

Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported

1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage

Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

SAS card is required for SAS devices support
SAS

Depends on SAS Add-on card
RAID

Intel® SATA RAID 0/1/10/5
Expansion Slots

Riser Card CRSG620 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

Riser Card CRSG621 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs

Riser Card CRSG01A x 2:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O

1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Backplane board header

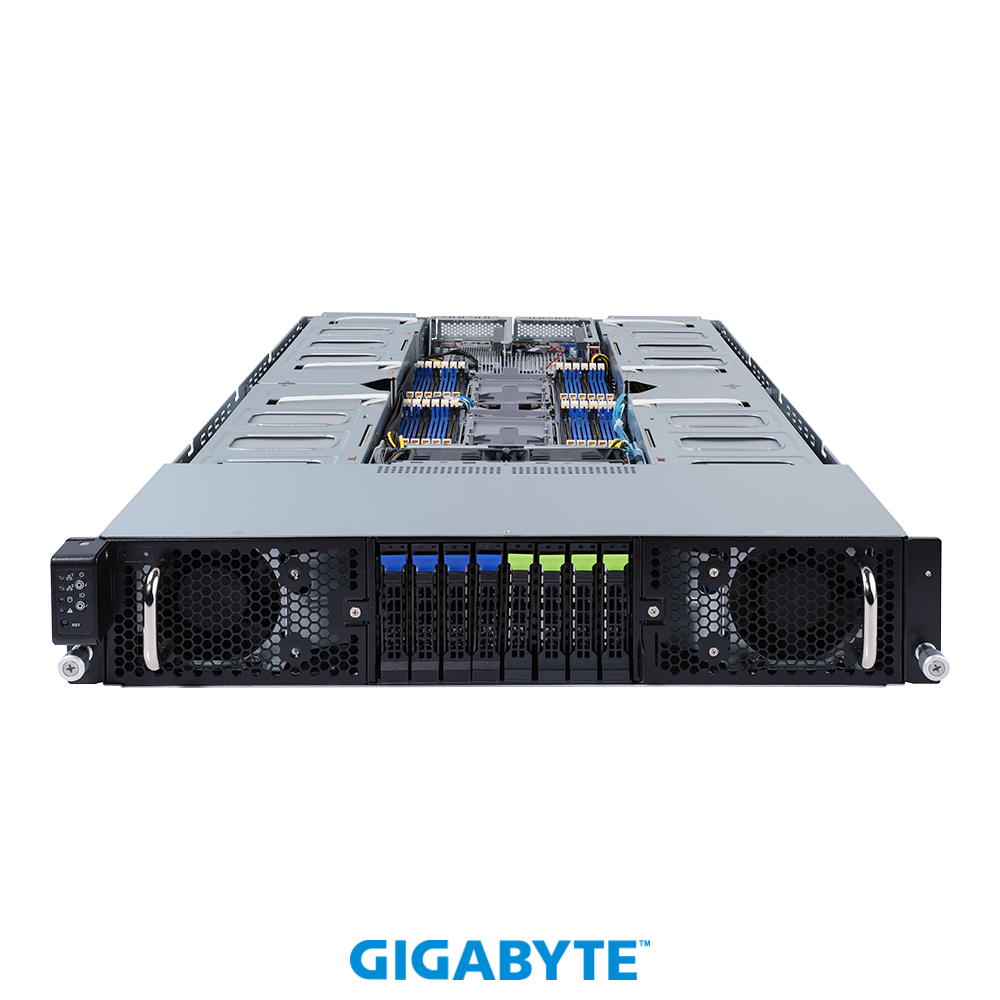

Front I/O

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

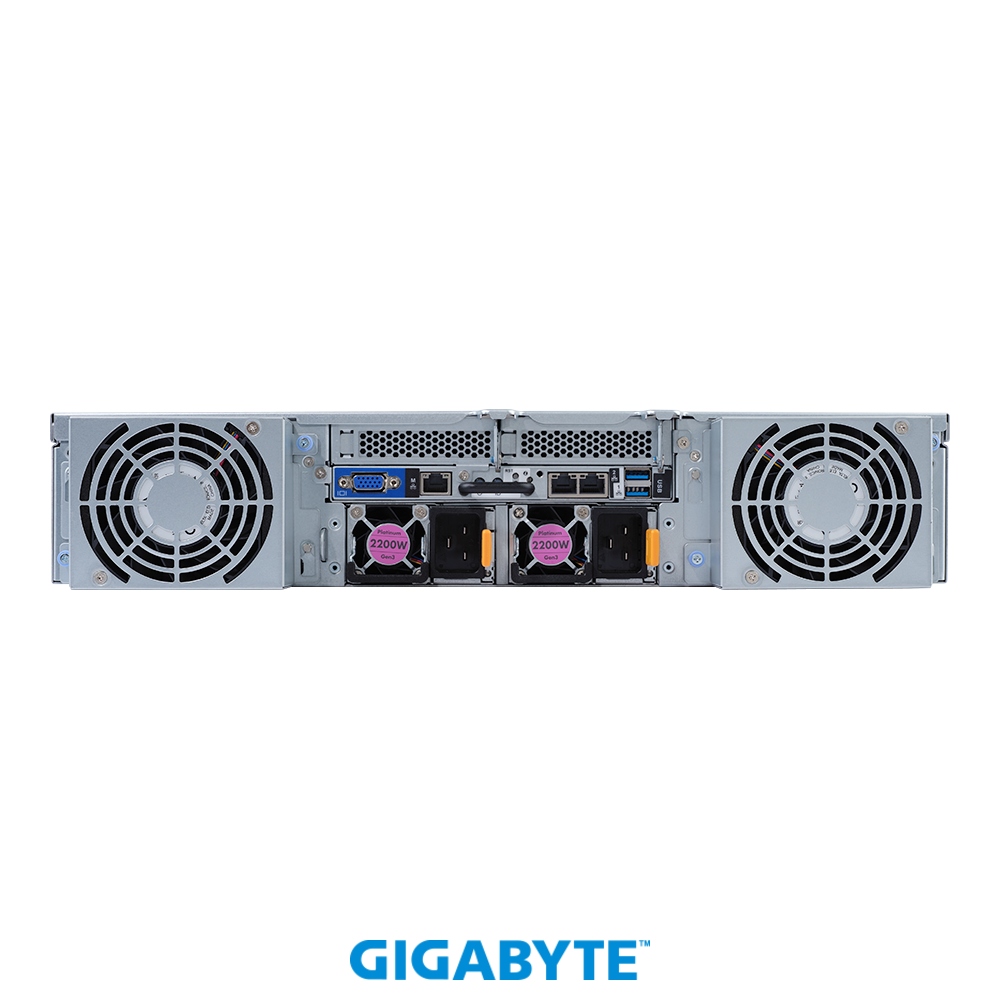

Rear I/O

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
Backplane I/O

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply

Dual 3200W 80 PLUS Platinum power supply

AC Input:
- 100-127V~/ 14A, 50-60Hz
- 200-208V~/ 16A, 50-60Hz
- 214-234V~/ 16A, 50-60Hz
- 240V~/ 16A, 50-60Hz

DC Input:
- 240Vdc/ 16A

DC Output:
- Max 1100W/ 100-127V~
- Max 2434W/ 200-208V~
- Max 2828W/ 214-234V~
- Max 3234W/ 240V~

NOTE: The system power supply requires C19 power cord
System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
System Fans

8 x 80x80x38mm (16,300rpm)
Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU system operating temperature
Packaging Dimensions

1133 x 724 x 261 mm
Packaging Content

1 x G292-280
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers

- Barebone package: 6NG292280MR-00-1*
- Motherboard: 9MG52G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320X-M1R/25ST1-44320Y-M1R
- Backplane board - CBPG084: 9CBPG084NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card - CRSG620: 9CRSG620NR-00
- Riser card - CRSG621: 9CRSG621NR-00
- Power supply: 25EP0-232001-D0S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2 x 7mm internal SSD cable kit: 6NG291281SR-00-100
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
