E162-220

Edge Server - 3rd Ge...
  • Supports up to 1 x Dual slot GPU card
  • NVIDIA-Certified system for scalability, manageability, security, and performance
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Single processor, LGA 4189
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • Intel® C621A Chipset
  • 1 x Dedicated management port
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x FHFL PCIe Gen4 x16 slot for GPUs
  • 2 x LP PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • Dual 800W 80 PLUS Platinum hot-swap redundant power supply

Interested in this product? Please contact one of our sales specialists!

Dimension 438 x 43.5 x 500
Motherboard ME62-GE0
CPU

3rd Generation Intel® Xeon® Scalable Processors
Single processor, 10nm technology
CPU TDP up to 270W
Socket

1 x LGA 4189
Socket P+
Chipset

Intel® C621A Chipset
Memory

16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN

Front side:
1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage

Front side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
SAS

Depends on SAS add-on card
RAID

Intel® SATA RAID 0/1
Expansion Slots

1 x PCIe x16 (Gen4 x16) FHFL slot, for GPUs
2 x PCIe x16 (Gen4 x16) low-profile slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
Internal I/O

3 x M.2 slots
2 x SATA ports
1 x TPM header
1 x OCP 3.0 slot
Front I/O

2 x USB 3.0
1 x Mini-DP
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Backplane I/O

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply

Dual 800W 80 PLUS Platinum hot-swappable redundant power supply

AC Input:
- 100-240V~/ 10A-5A, 50-60Hz

DC Input:
- 240Vdc/ 4A

DC Output:
- Max 800W/ 100-240V~
+ 12V/ 65A
+ 12Vsb/ 2.1A
System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced Power Capping
LDAP/AD/RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

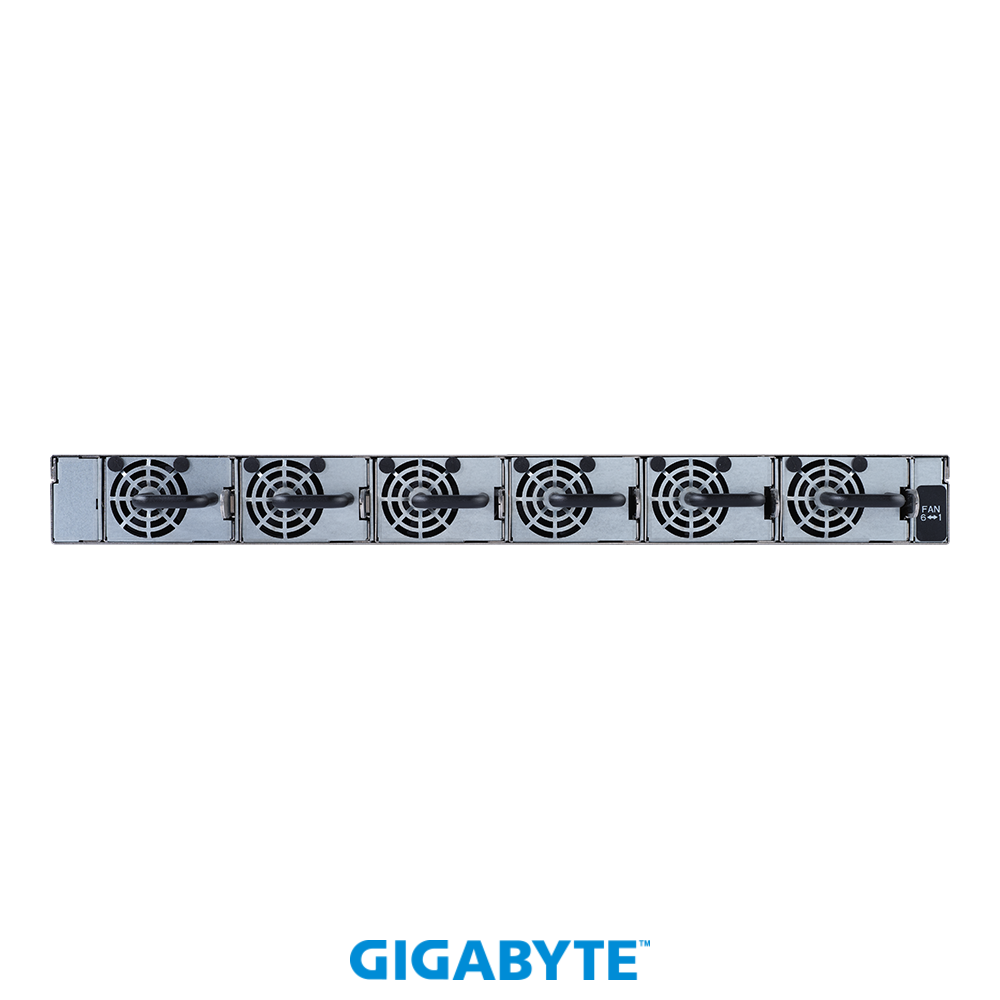

System Fans

6 x 40x40x56mm (29,000rpm)
Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Content

1 x E162-220
1 x CPU heatsink

*Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers

- Barebone package: 6NE162220MR-00-1*
- Motherboard: 9ME62GE0NR-00
- CPU heatsink: 25ST1-453213-M1R
- Backplane board - CBPE020: 9CBPE020NR-00
- Fan module: 25ST2-405628-S1R
- Riser card - CRSE010: 9CRSE010NR-00
- Riser card - CRSE011: 9CRSE011NR-00
- Riser card - CRSE012: 9CRSE012NR-00
- Power supply: 25EP0-208007-F3S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- RMA packaging: 6NE162220SR-RMA-A100
