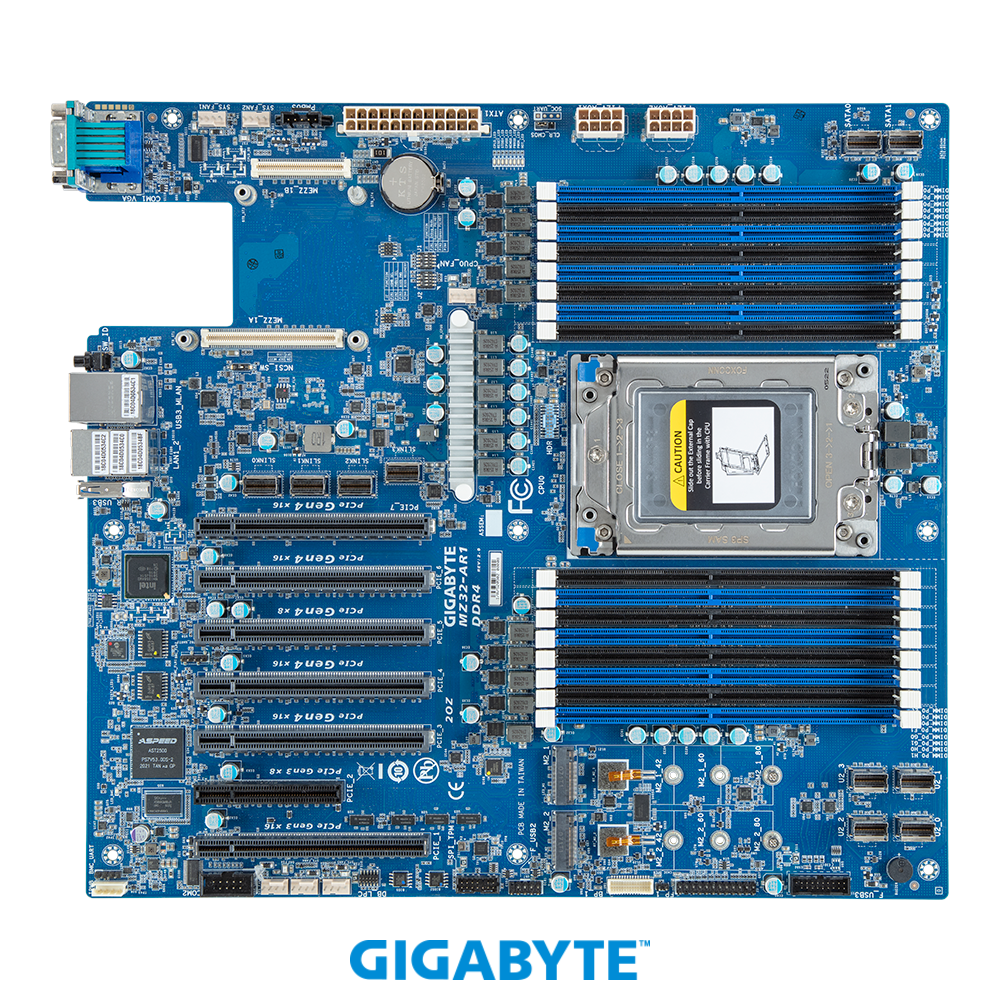

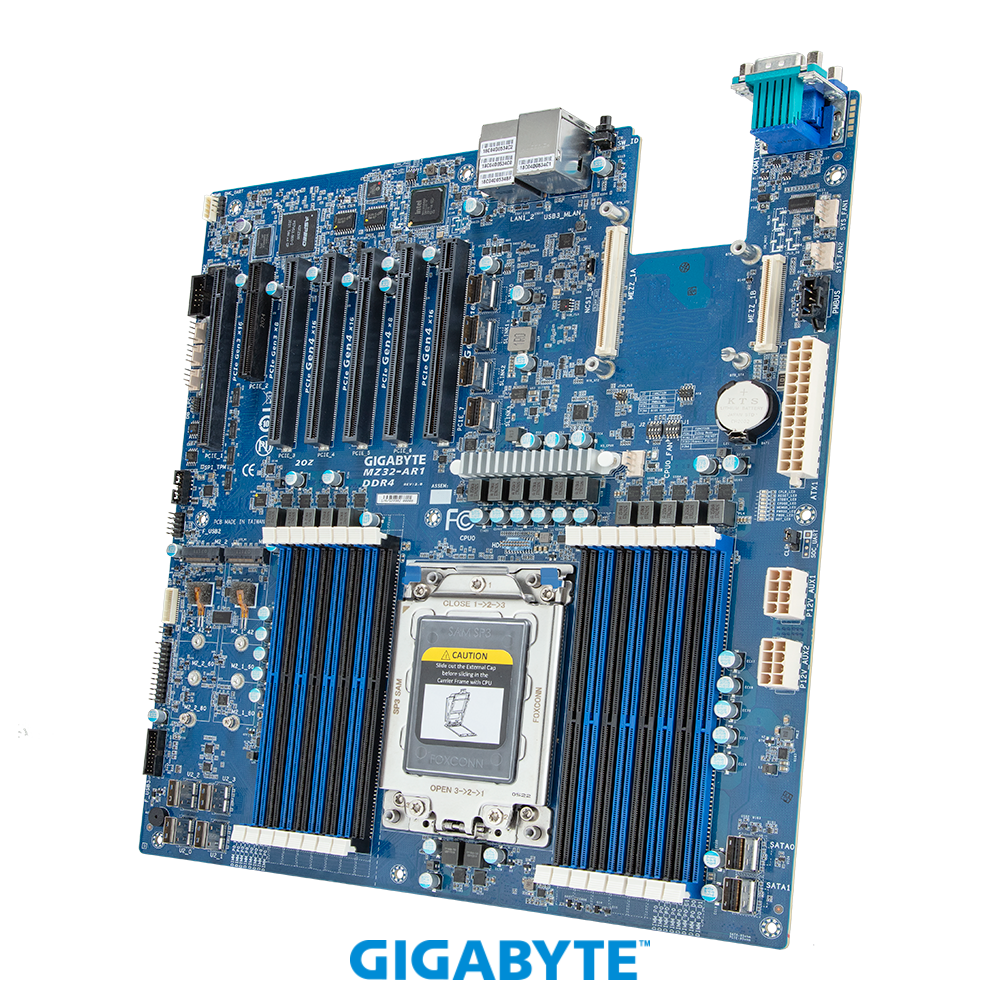

MZ32-AR1

AMD EPYC™ 7003 UP Se...

Hardware-level root of trust support
Single AMD EPYC™ 7003 series processor family
Single processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x Dedicated management port
2 x SlimSAS (with 8 x SATA 6Gb/s) ports
4 x SlimSAS (with 4 x NVMe) ports
Ultra-Fast M.2 with PCIe Gen4 x4 interface
Up to 5 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
1 x OCP 2.0 Gen3 x16 mezzanine slot
Aspeed® AST2500 remote management controller

Interested in this product? Please contact one of our sales specialists!

Server Motherboard Specifications

Form Factor	E-ATX 305W x 330D (mm)
CPU	AMD EPYC™ 7003 series processor family Single processor, 7nm, Socket SP3 Up to 64-core, 128 threads per processor cTDP up to 240W Fully support 280W NOTE: Please make sure Fan-sink supports over 280W CPU Compatible with AMD EPYC™ 7002 series processor family
Socket	Socket SP3
Chipset	System on Chip
Memory	16 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported 3DS RDIMM/LRDIMM modules up to 256GB supported Memory speed: Up to 3200/2933 MHz - Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN	2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN
Video	Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
SATA	2 x SlimSAS 4i for 8 x SATA ports
Expansion Slots	Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported) 2 x M.2 slots: - M-key - PCIe Gen4 x4 - Supports 2242/2260/2280 cards 4 x NVMe ports: - SlimSAS 4i type - PCIe Gen4 x4 per port - Shared with Slot_7 PCIe Gen4 x16 slot
Internal I/O	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 10 x SlimSAS connectors 2 x M.2 slots 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen 1 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer

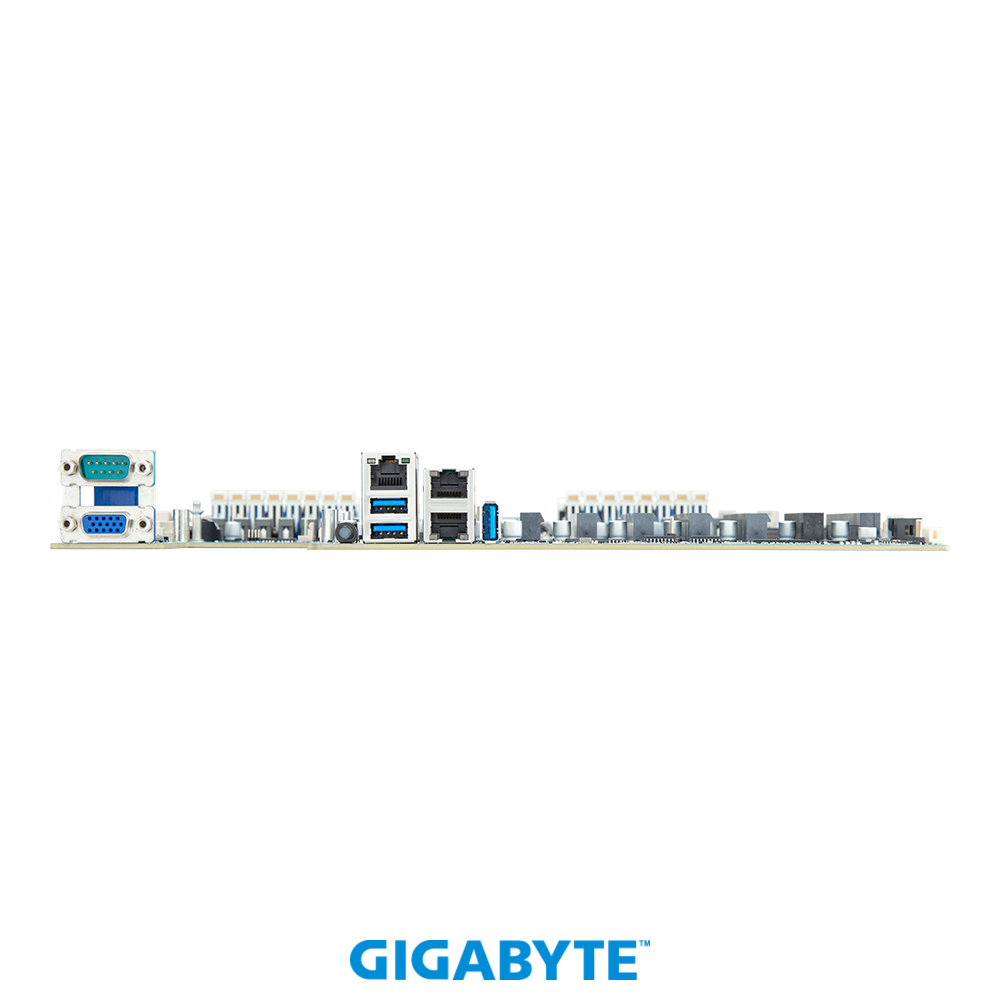

Rear I/O	3 x USB 3.2 Gen 1 1 x VGA 1 x COM_1 2 x RJ45 1 x MLAN 1 x ID button with LED
TPM	1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010
OS Compatibility	Windows Server 2016 (X2APIC/256T not supported) Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 8.3 (x64) or later Red Hat Enterprise Linux 9 (x64) or later SUSE Linux Enterprise Server 12 SP5 (x64) or later SUSE Linux Enterprise Server 15 SP2 (x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Board Management	Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
PSU Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Operating Properties	Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)

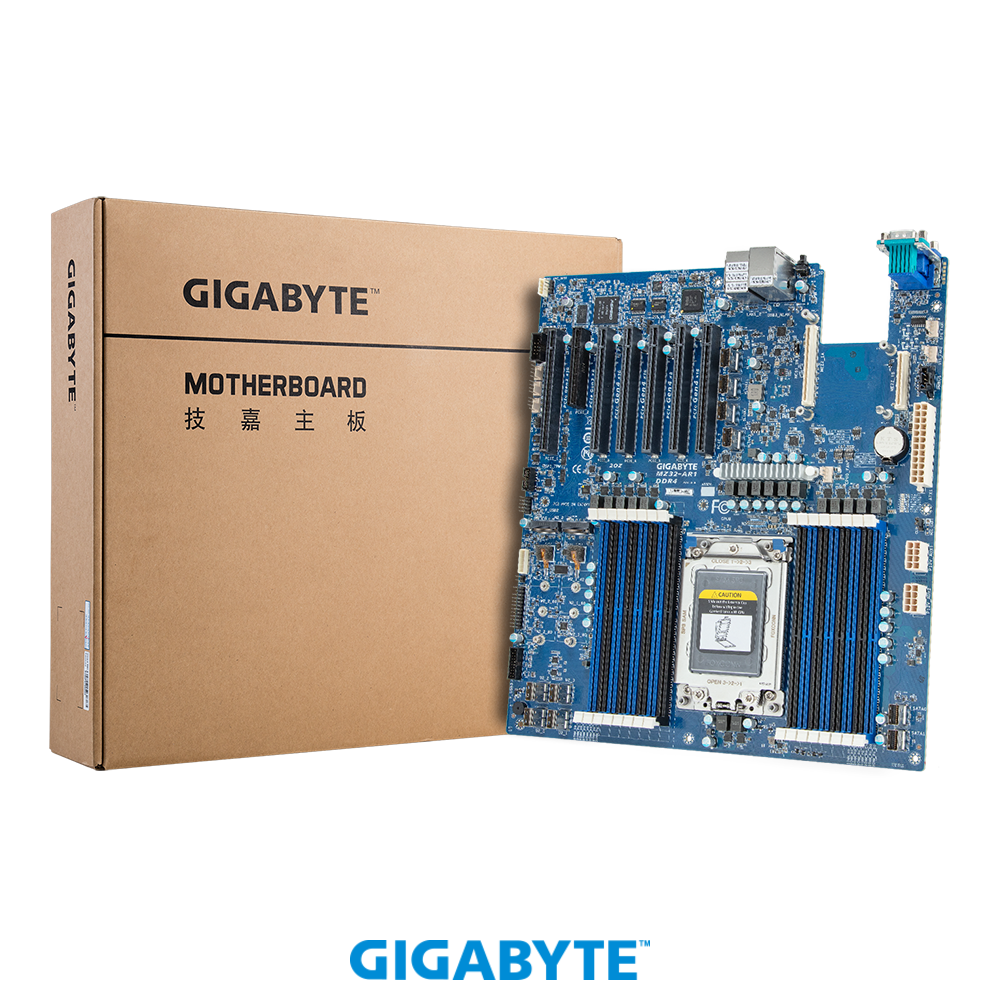

Retail Packaging Content	1 x MZ32-AR1 1 x I/O shield 1 x Quick start guide 2 x SlimSAS for 8 x SATAIII 6Gb/s cables Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single box with one carton
Bulk Packaging Content	10 x MZ32-AR1 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm
Reference Numbers	Retail: 9MZ32AR1MR-00-3* Bulk: 9MZ32AR1NR-00-3*
Part Numbers	- I/O shield: 12AIO-MZ32A2-00R - SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R - Cables to enable Slot_7: 25CFM-450820-A4R (optional) - Fan-sink: 12SF2-01A067-00R (optional)
