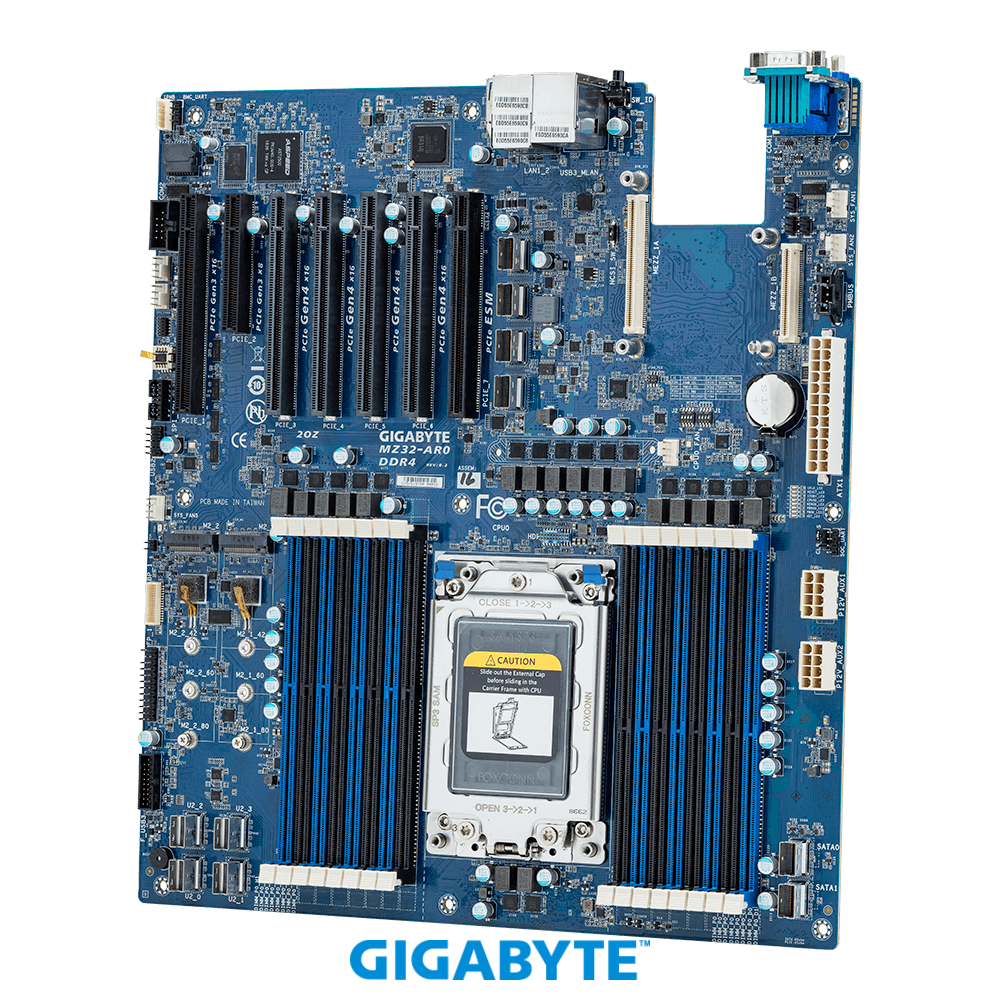

MZ32-AR0

AMD EPYC™ 7003 Serve...
  • AMD EPYC™ 7003 series processor family
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 2 x SlimSAS with 8 x SATA 6Gb/s ports
  • 4 x SlimSAS with 4 x NVMe ports
  • 2 x M.2 slots with PCIe Gen3 x4 interface
  • Up to 5 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
  • 1 x OCP 2.0 Gen3 x16 mezzanine slot
  • Aspeed® AST2500 remote management controller

Interested in this product? Please contact one of our sales specialists!

Form Factor

E-ATX
305W x 330D (mm)

CPU

AMD EPYC™ 7003 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
CPU TDP up to 240W

Fully support 280W

NOTE: Please make sure Fan-sink supports over 280W CPU

Compatible with AMD EPYC™ 7002 series processor family

Socket

1 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

SATA

2 x SlimSAS 4i for 8 x SATA ports

Expansion Slots

Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards

4 x NVMe ports:
- SlimSAS 4i type
- PCIe Gen4 x4 per port
- Shared with Slot_7 PCIe Gen4 x16 slot

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
10 x SlimSAS connectors
2 x M.2 slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

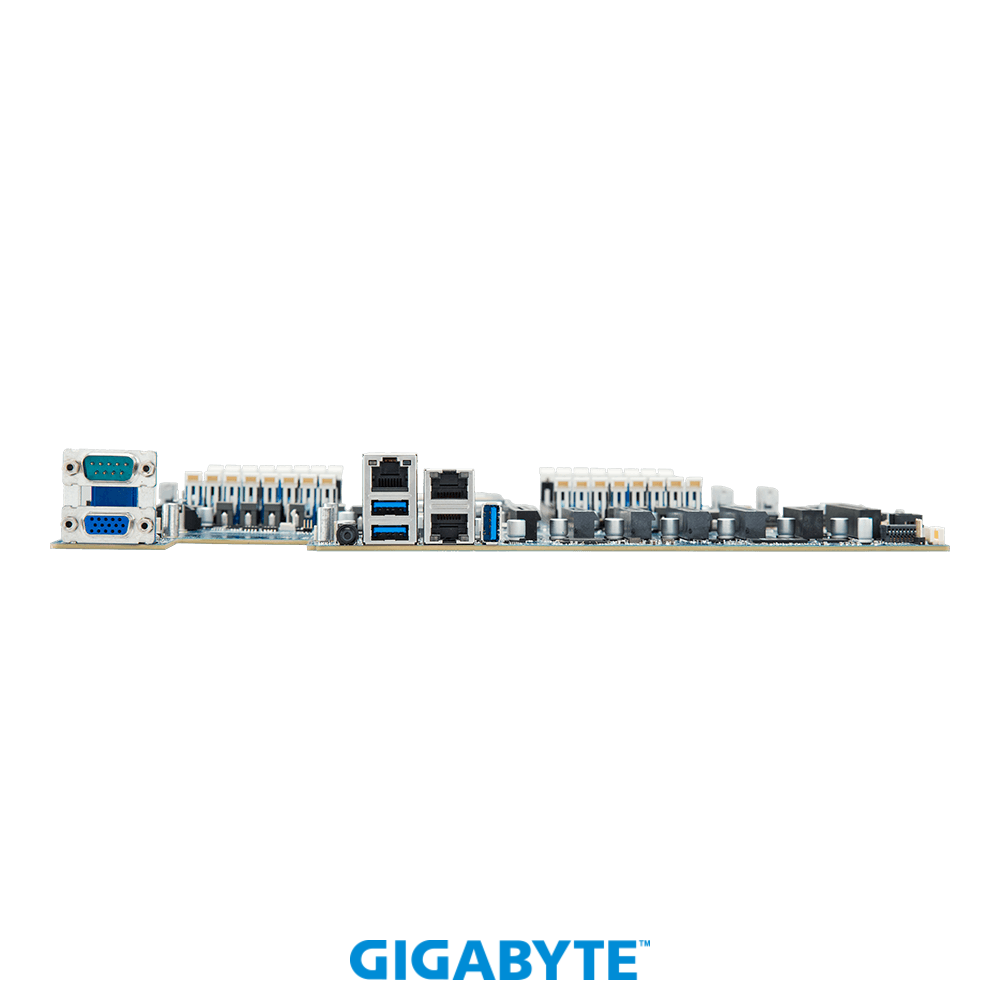

Rear I/O

3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Board Management

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

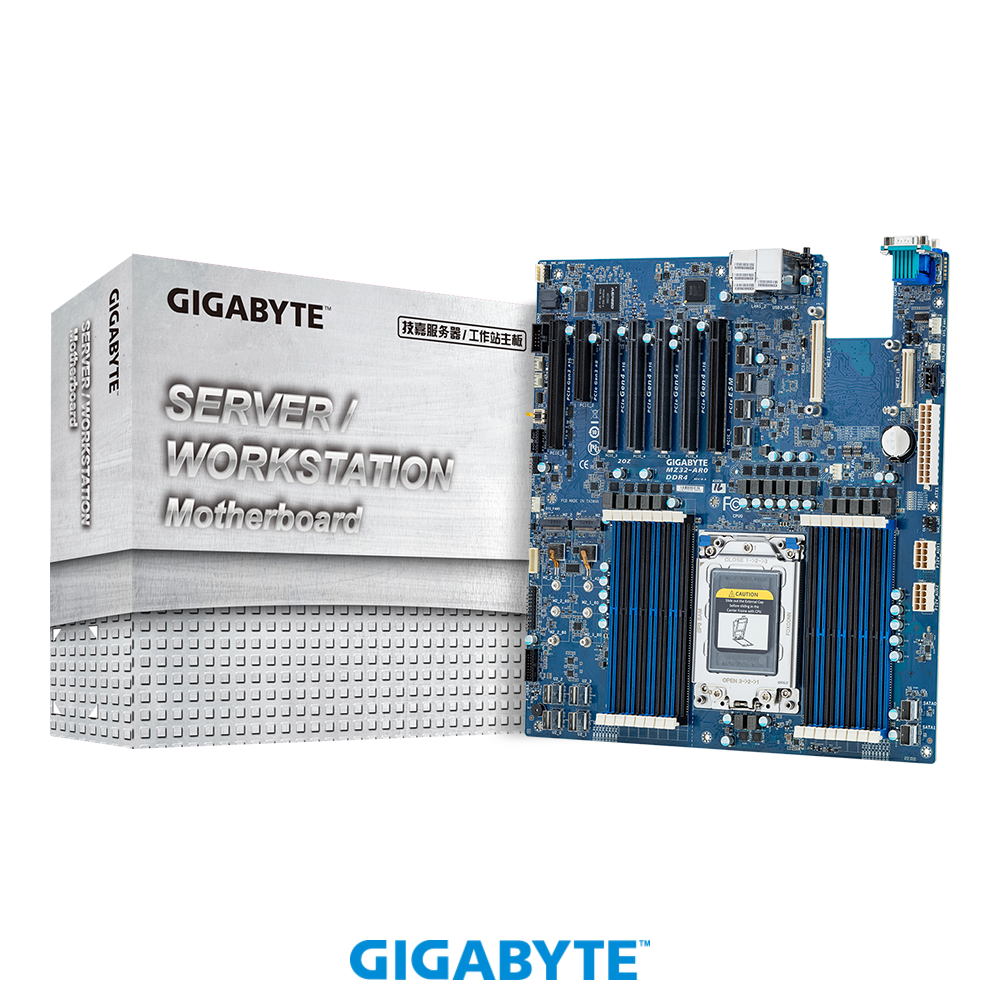

Retail Packaging Content

1 x MZ32-AR0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATAIII 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ32-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MZ32AR0MR-00-3*
Bulk: 9MZ32AR0NR-00-3*

Part Numbers

- I/O shield: 12AIO-MZ32A2-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Cables to enable Slot_7: 25CFM-450820-A4R (optional)
- Fan-sink: 12SF2-01A067-00R (optional)
