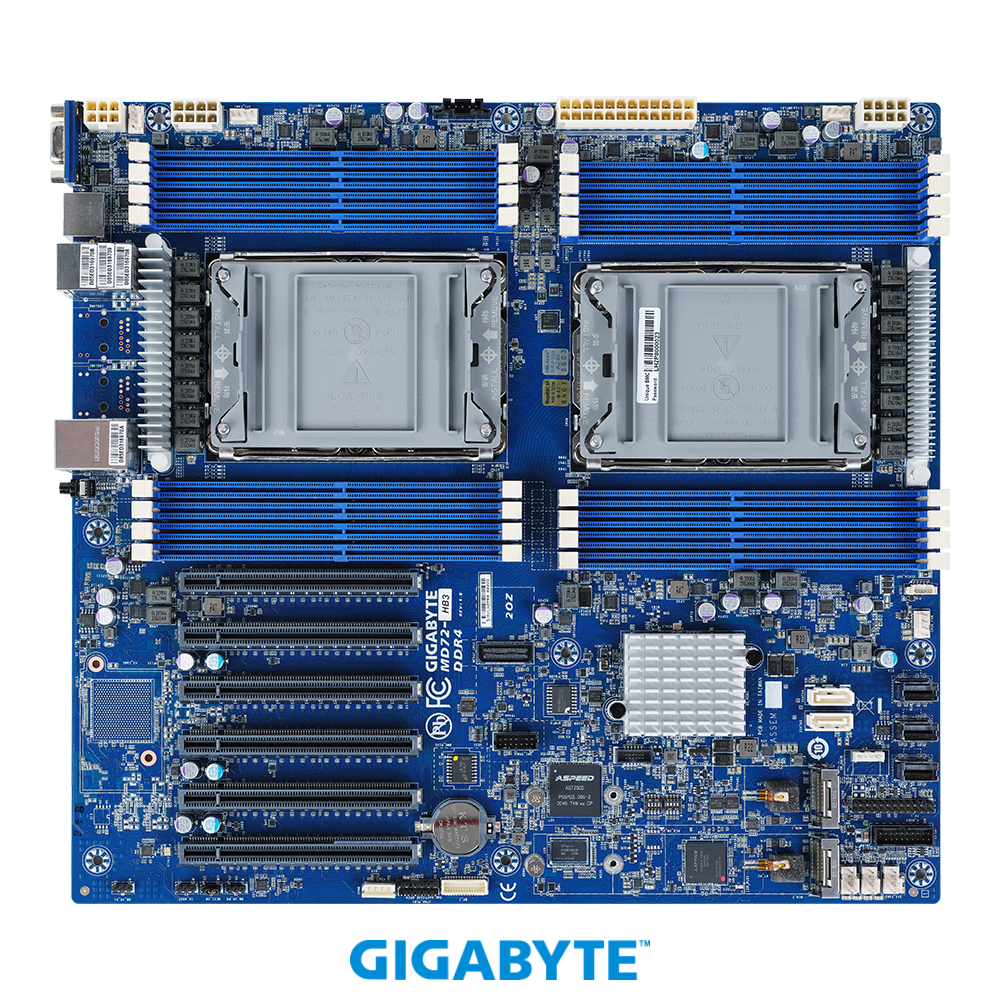

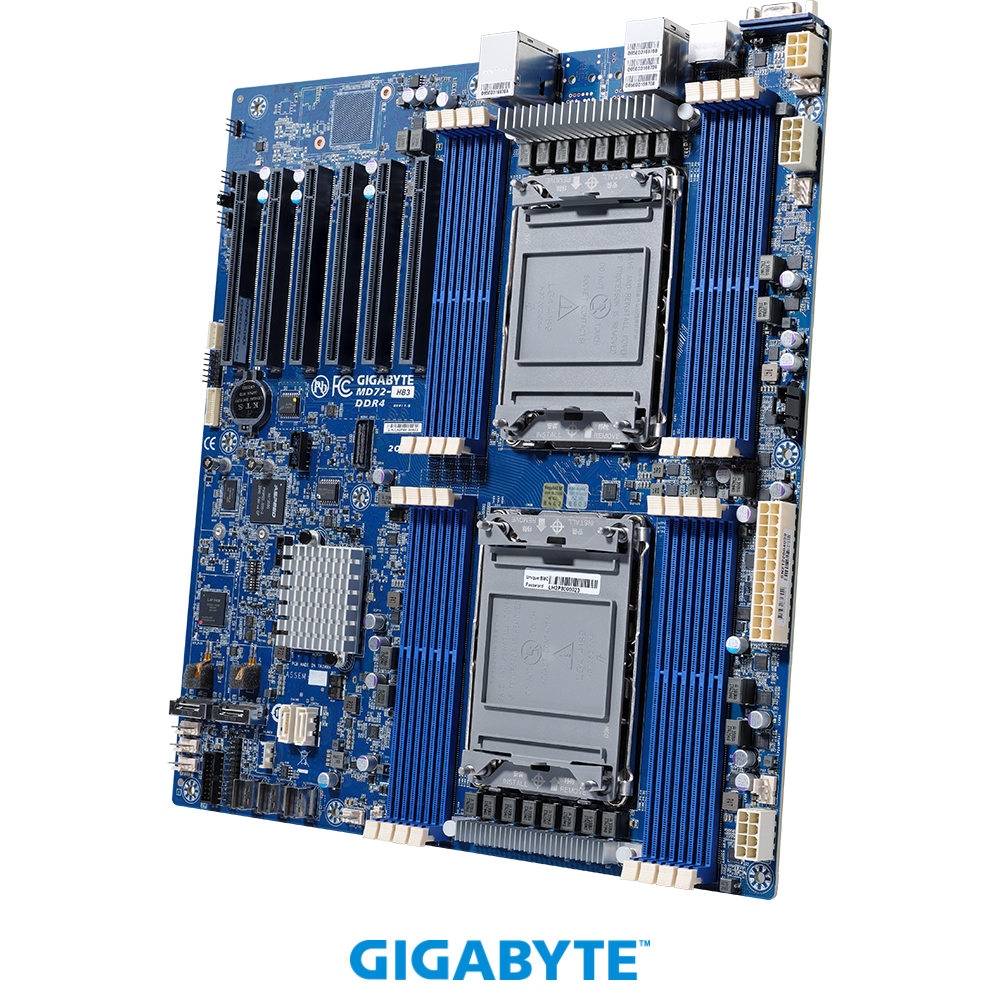

MD72-HB3

Intel® C621A Chipset

  • 3rd Gen. Intel® Xeon® Scalable Processors
  • Dual processor, 10nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Intel® C621A Chipset
  • 2 x 1Gb/s LAN ports (Intel® I210-AT)
  • 1 x Dedicated management port
  • 2 x 7-pin SATA 6Gb/s ports
  • 3 x SlimSAS with 12 x SATA 6Gb/s ports
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 6 x PCIe Gen4 x16 expansion slots

Interested in this product? Please contact one of our sales specialists!

Form Factor

E-ATX
305W x 330D (mm)
CPU

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, 10nm technology
CPU TDP up to 270W
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A Chipset
Memory

16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN

2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
SATA

2 x 7-pin SATA 6Gb/s ports
3 x SlimSAS with 12 x SATA 6Gb/s ports
RAID

Intel® SATA RAID 0/1/10/5
Expansion Slots

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2280/22110 cards
Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connectors
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
1 x HDD backplane board header
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header

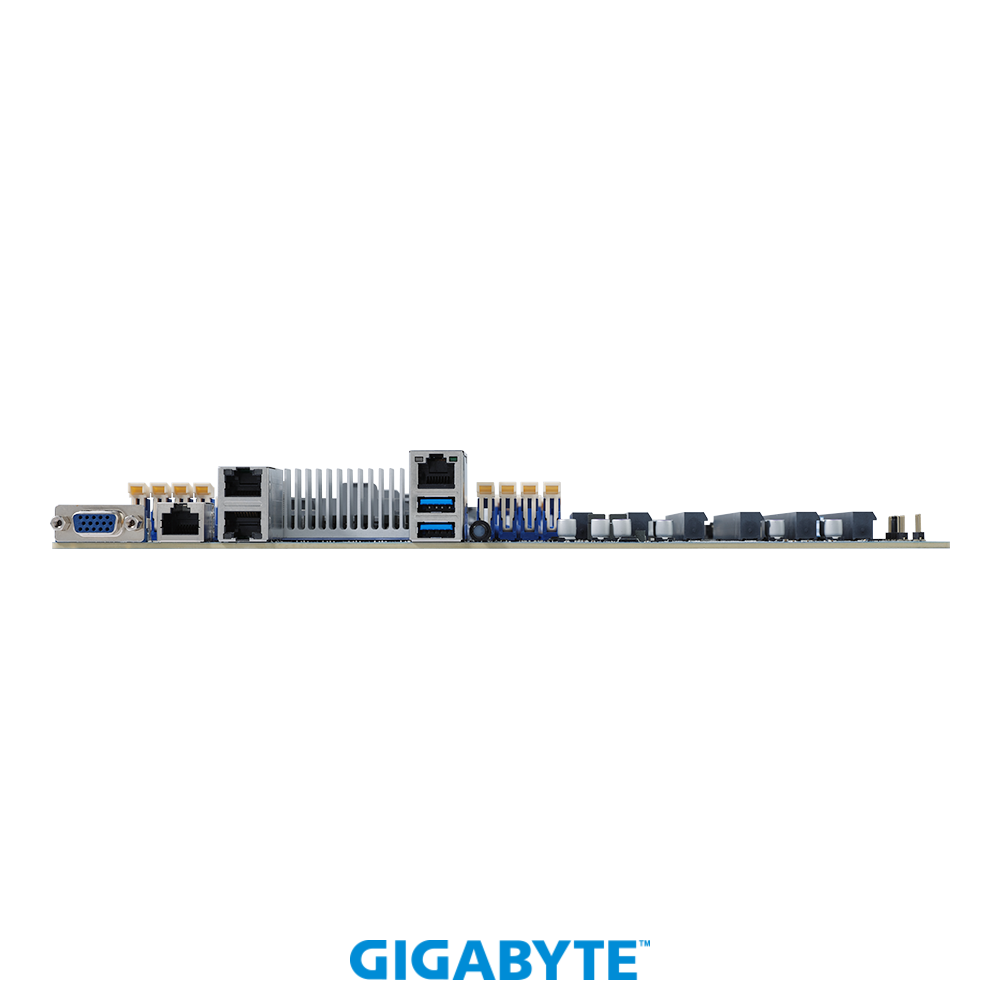

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022
Board Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connector
Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

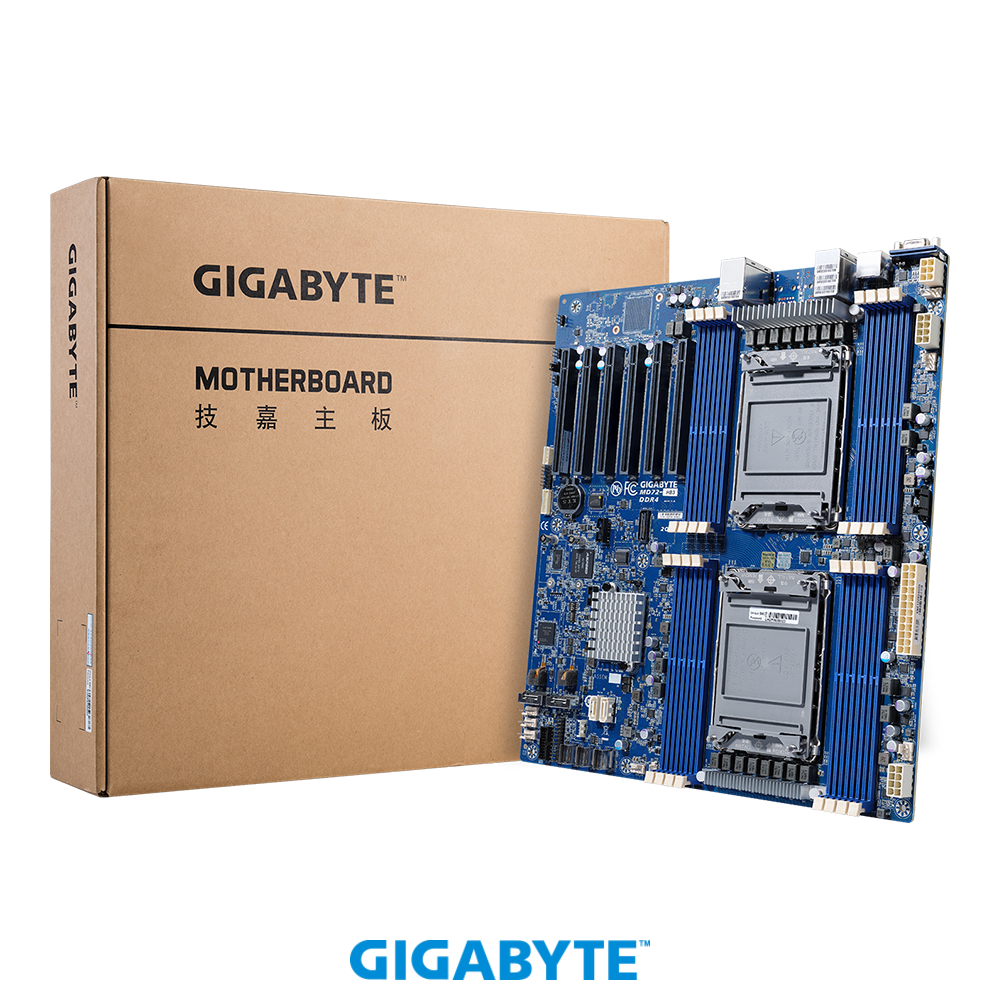

Retail Packaging Content

1 x MD72-HB3
1 x I/O shield
1 x Quick start guide
1 x SlimSAS for 4 x SATAIII 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content

10 x MD72-HB3
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers

Retail: 9MD72HB3MR-00
Bulk: 9MD72HB3NR-00
Part Numbers

- Fan-sink: 25ST4-353203-M1R (optional)
- I/O shield: 12AIO-MD72HB-10R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
