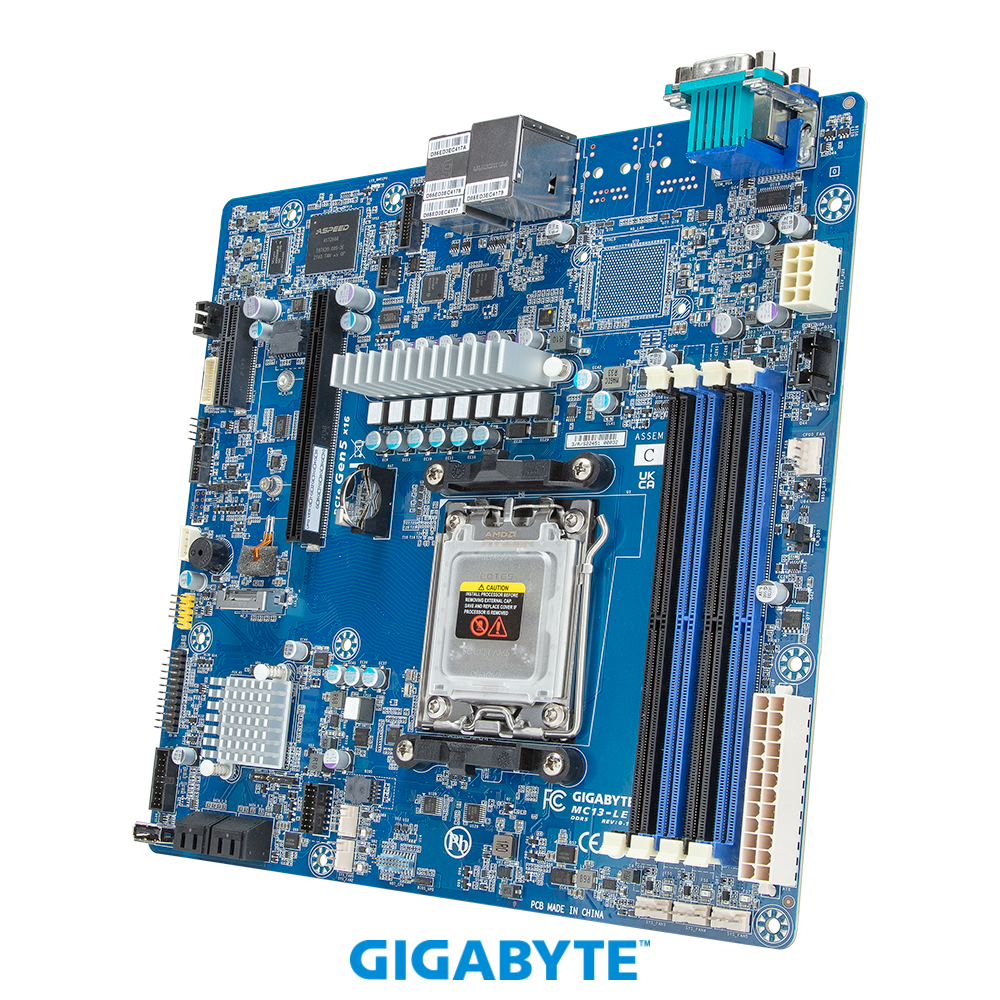

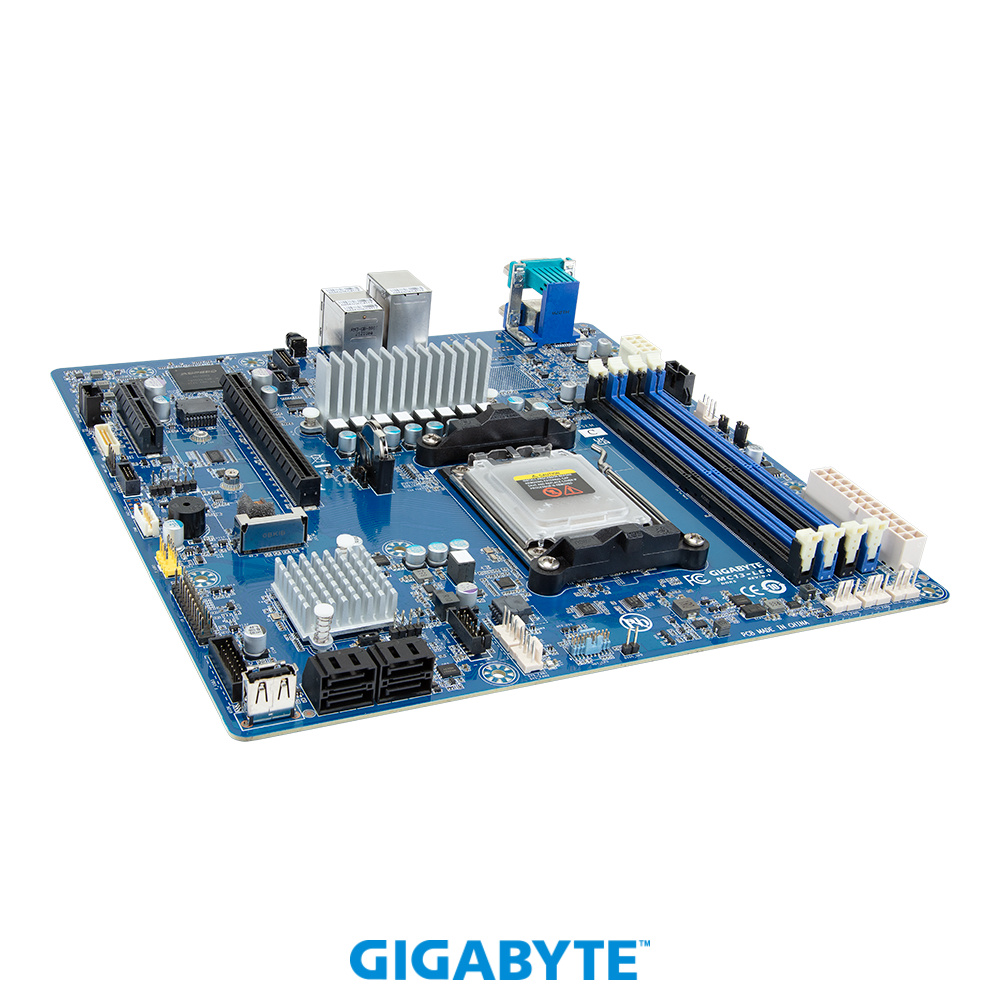

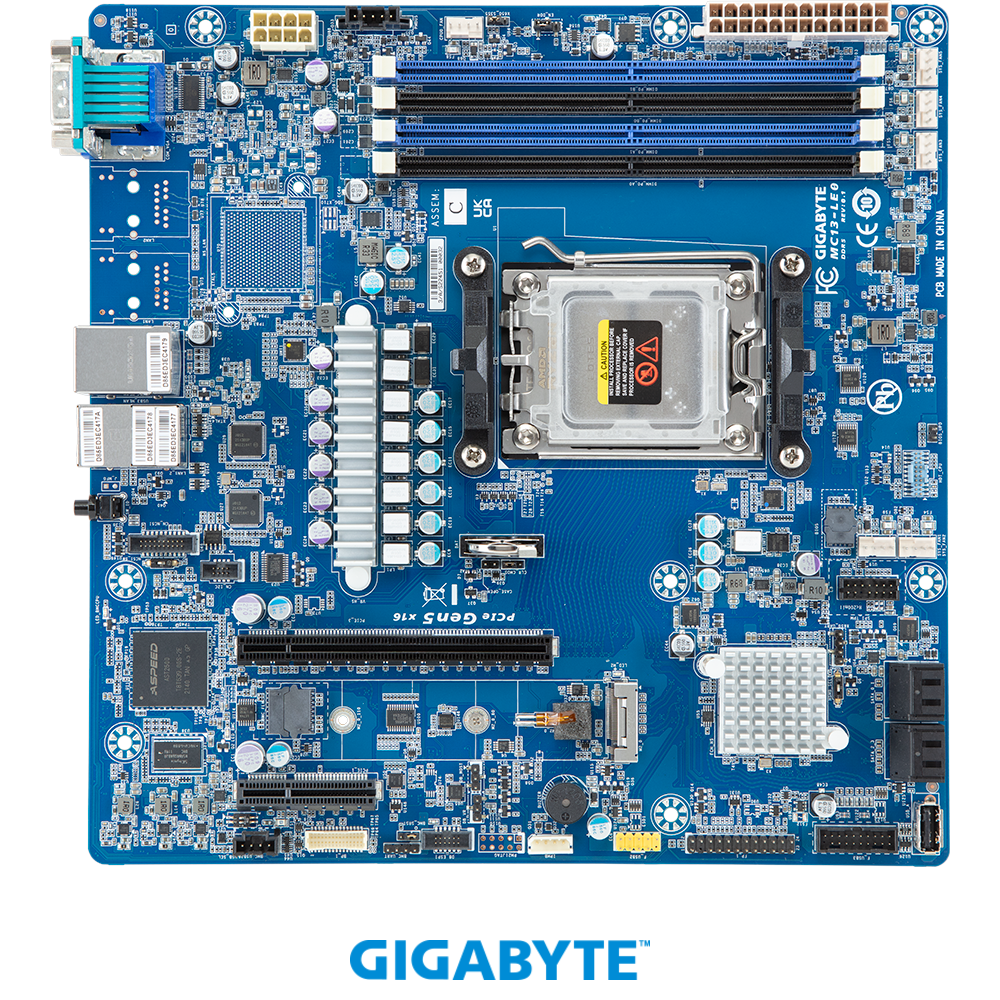

MC13-LE0

microATX
244W x 244D mm

AMD Ryzen™ 7000 Series Processors

Note:
- Recommend to install 170 watts CPU with water cooling kit.
- When installing water cooling kit for CPU or GPU, please keep proper airflow for ventilation to prevent heat accumulation.

AM5

B650E

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory speed: up to 5200 MHz (1DPC), 3600 MHz (2DPC)

2 x 1GbE LAN ports (Intel® I210 )
1 x 10/100/1000 management LAN

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

4 x SATA 6Gb/s ports

RAID 0/1/10

Slot_3 (PCIe x16): 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
Slot_1 (PCIe x4): 1 x PCIe x4 (Gen4 x4 bus) slot, from FCH

1 x M.2 slot:
- M-key
- PCIe Gen5 x4, from CPU
- Supports NGFF-2242/2280

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA ports
1 x M.2 slot
1 x HDD backplane board header
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header with 2-ports
1 x USB 2.0 type-A connector
1 x USB 2.0 header with 2-ports
1 x TPM header
1 x Front panel header
1 x IPMB connector
1 x PMBUS connector
1 x Clear CMOS jumper

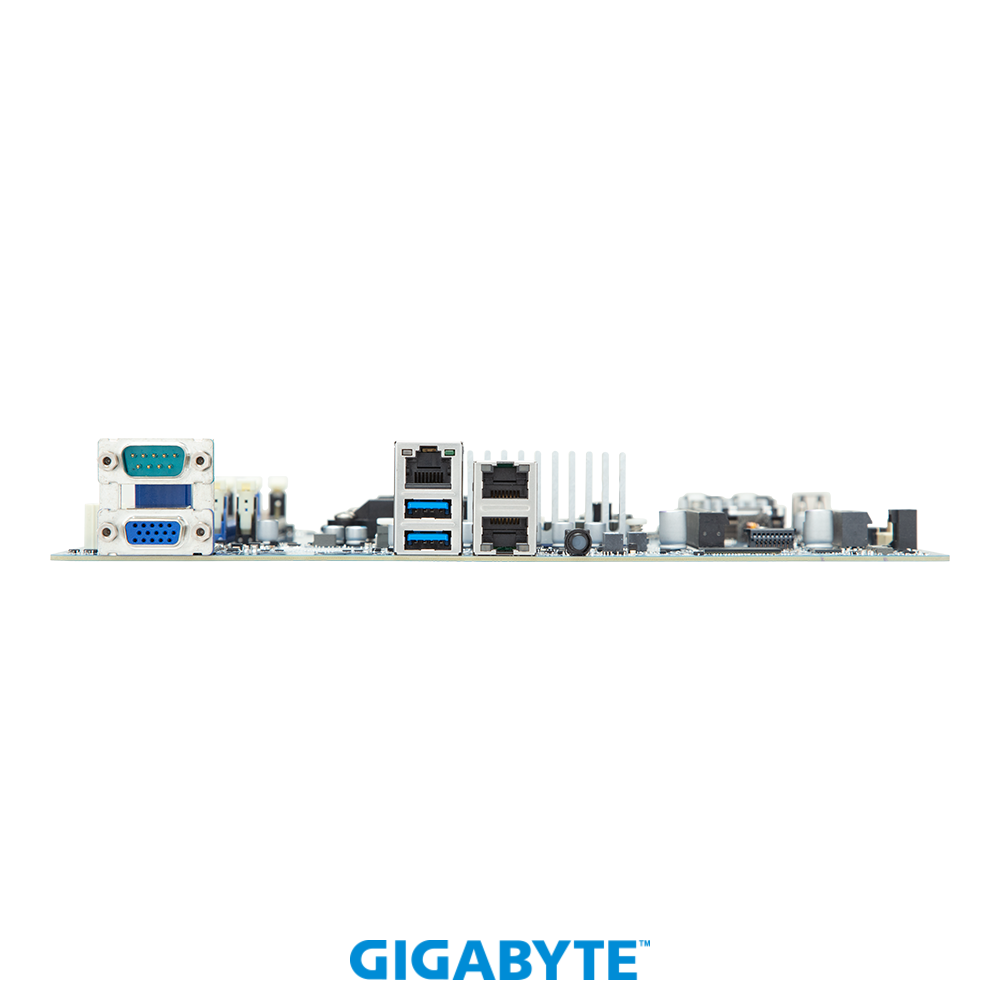

2 x USB 3.2 Gen1 type A
1 x VGA
1 x COM
2 x 1GbE RJ45 LAN
1 x MLAN
1 x ID button with LED

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Windows 11 64-bit
Windows 10 64-bit

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

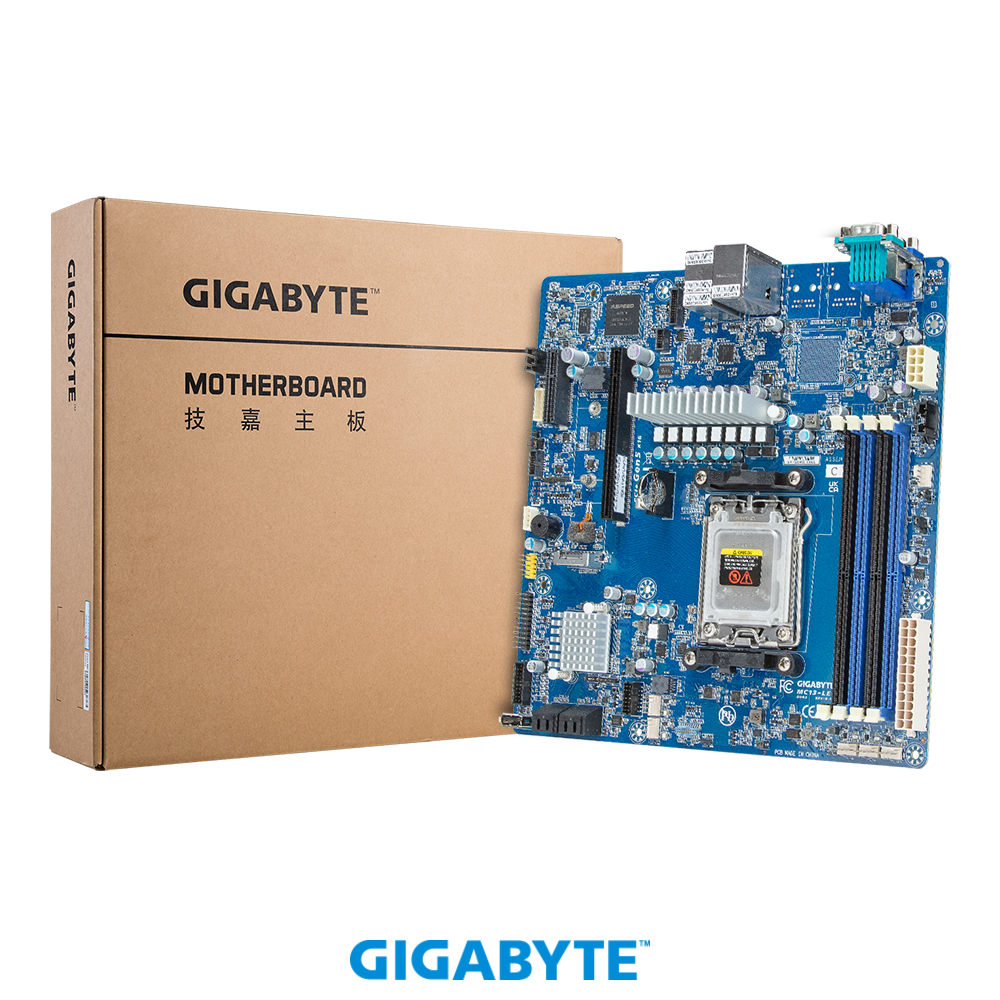

1 x MC13-LE0
1 x I/O shield
1 x Quick start guide
4 x SATA cables
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton

10 x MC13-LE0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
MOQ: 10 PCS MC13-LE0

Retail: 9MC13LE0MR-000-1*
Bulk: 9MC13LE0NR-000-1*

- I/O shield: 12AIO-MC13LE-00R
- SATA 6Gb/s cable: 12CF1-2SAT01-31R (1 set 2 cables)
